Board size:33*25mm
Weight:4g
Overview:

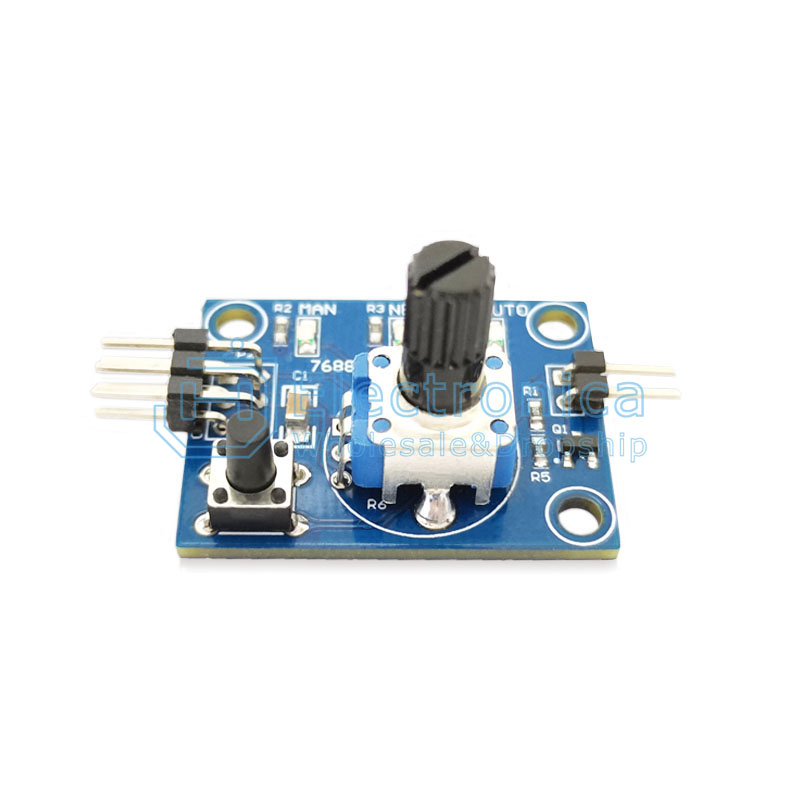

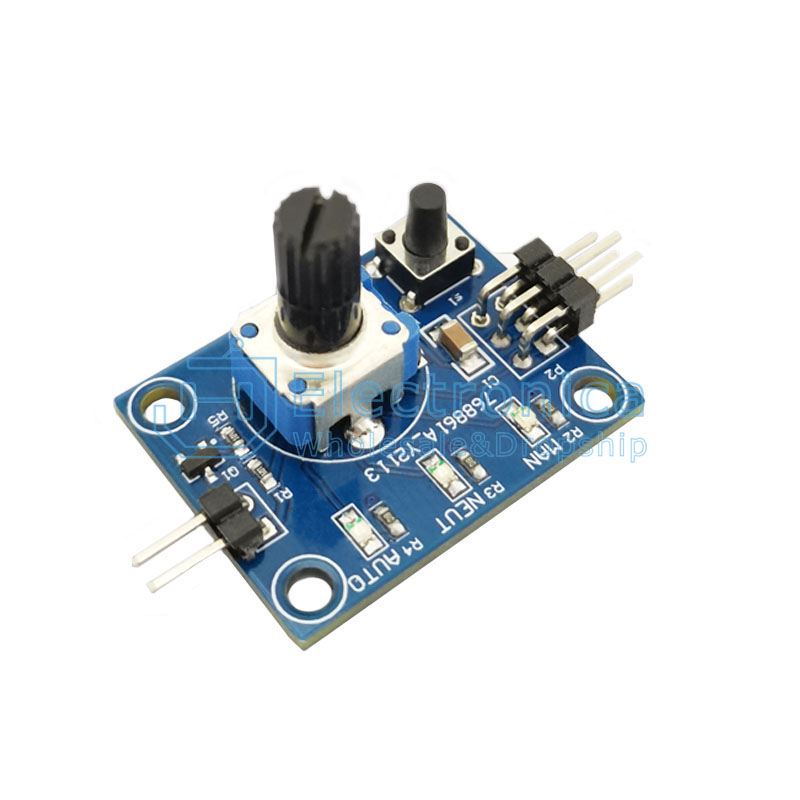

This servo tester is controlled by a microcontroller and has three control modes that can be switched through buttons. They are manual mode, return to center mode, and automatic mode. The blue status light also changes during function switching. Equipped with anti reverse connection function, there is no need to worry about reverse connection burning the circuit board. High stability and good accuracy
Product Features:
1. Manual mode: Rotate the potentiometer and the servo will also rotate accordingly. High level time from 0.5ms to 2.5ms
2. Return to center mode: Automatically return to the center position of the steering gear. High level time is 1.5ms
3. Automatic mode: Automatically test the minimum and maximum angles of the servo. High level time from 0.5ms to 2.5ms
4. Equipped with anti reverse connection circuit, there is no need to worry about reverse connection burning issues
5. It can be connected to two servo motors for simultaneous testing
6. The power supply input voltage is 5V
