Description

Voltage:3.3-5.5V
Workig voltage:-40~95℃
Size:27.2*26.4*15.5mm
Dual channel full duplex UART
64 byte FIFO (transmitter and receiver), receiving and sending FIFO levels
Fully compatible with industry standard 16C450 and equivalent standards
sixteen × Baud rate in clock mode up to 5 Mbit/s
Automatic hardware flow control using RTS/CTS
Automatic software flow control using programmable Xon/Xoff characters, single or two Xon/Xoff characters
Automatic RS-485 support (automatic address detection)
Up to eight programmable I/O pins
By RTS signal
RS-485 driver direction control RS-485 driver direction control reverse
Built in IrDA encoder and decoder support IrDASIR with speeds up to 115.2kbit/s
Software resettable
Can enable/disable transmitters and receivers independently of each other
Programmable special character detection, fully programmable character format
The generation and detection of line interruption
Internal loopback mode
Sleep current below 30uA at 3.3V
Input with 5V tolerance

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

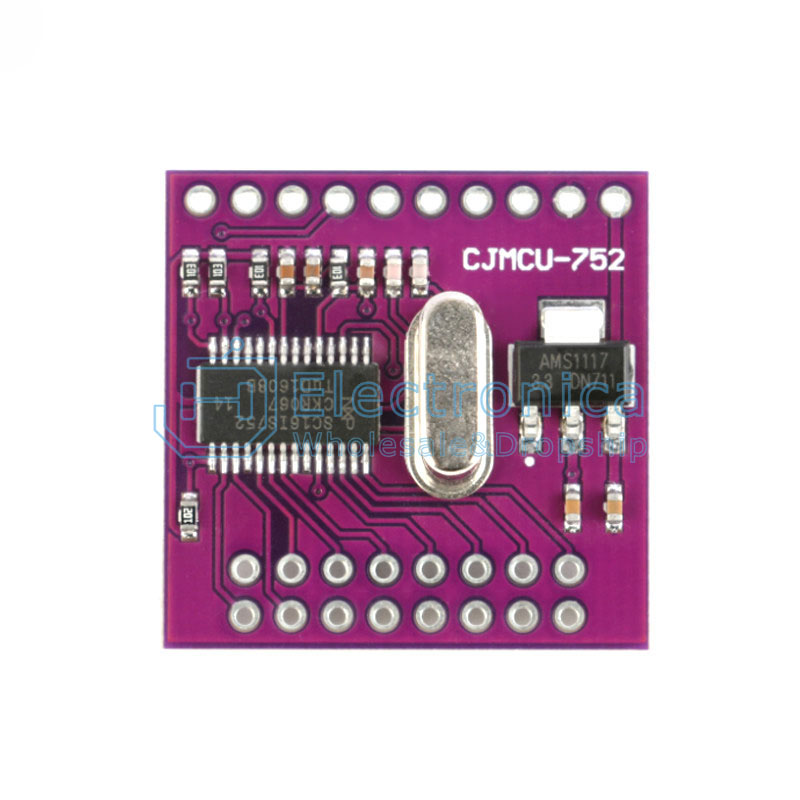

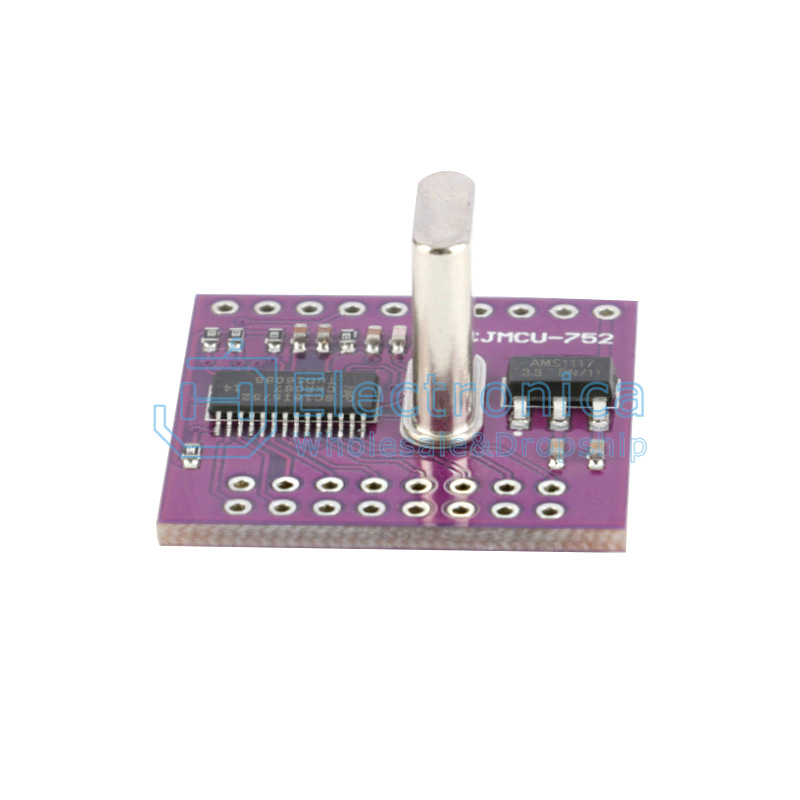

SC16IS752 I2C/SPI Bus Interface to UART Module

SKU : YXS1068 Brand :

Price : $ 3.13

100 +: $3.13500 +: $3.131000 +: $3.13
