Description

1.RCWL-0516 is a microwave sensing module that uses Doppler radar technology to detect the movement of objects.

2.The module has the characteristics of high sensitivity, long sensing distance, high reliability, large sensing angle and wide supply voltage range.

3.Widely used in a variety of human body induction lighting and anti-theft alarm and other occasions.

Products Paramenters
1.Operating Voltage:4-28V
2.Operating Current:2.8mA (typical);3mA (max)
3.Detection Distance:5-9m
4.Transmitting Power:20mW(typical);30mW (max)
5.Output Voltage:3.2-3.4V
6.Output Voltage Driving Capacity:100mA
7.Trigger Way:repeat trigger
8.Output Control Low Level:0V
9.Output Control High Level:3.3V
10.Operating Temperature:-20~80 celsius
11.Storage Temperature:-40~100 celsius

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

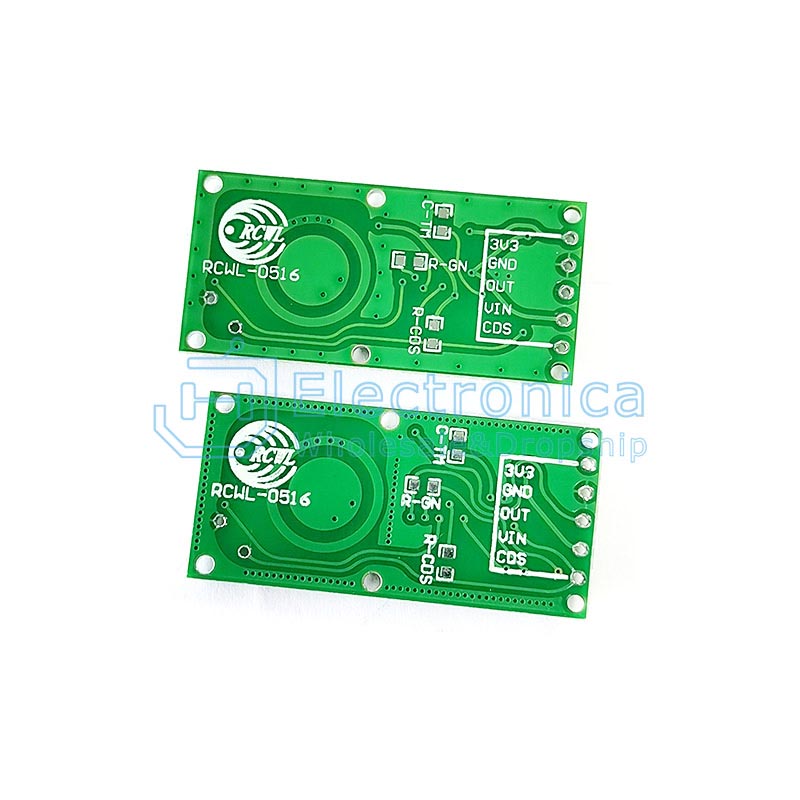

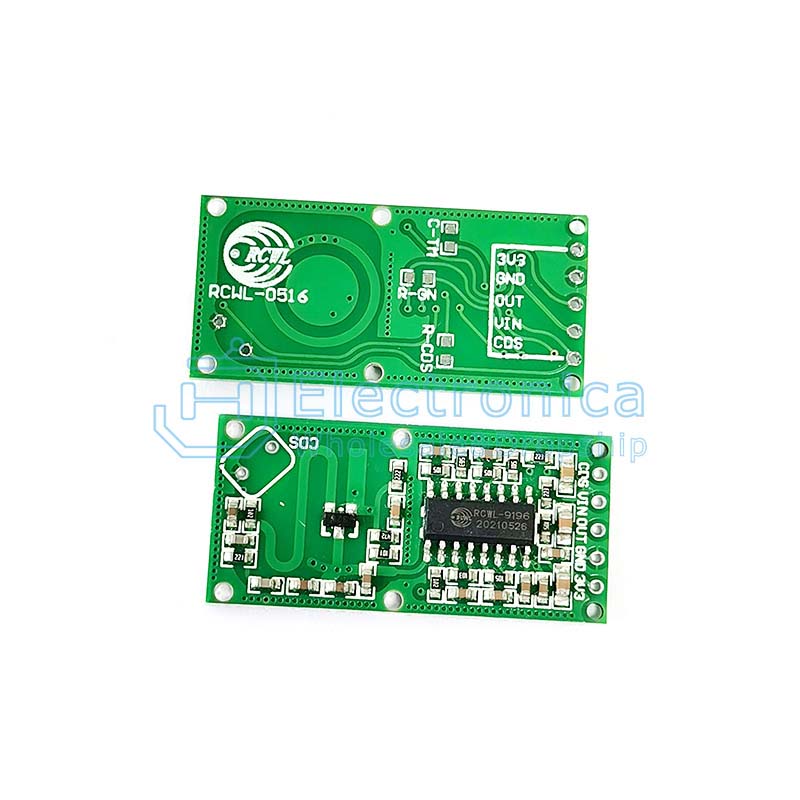

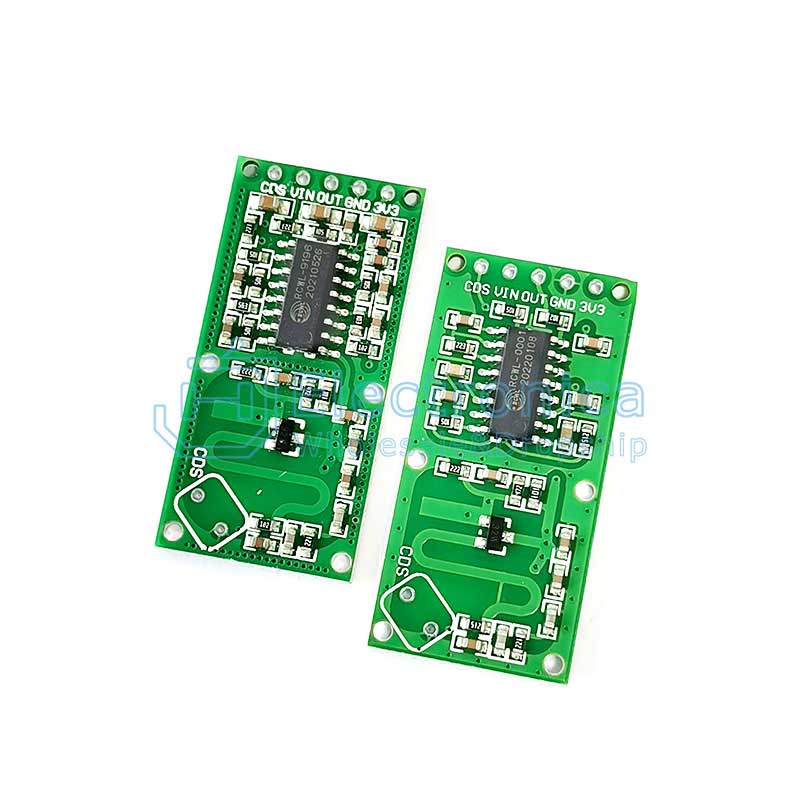

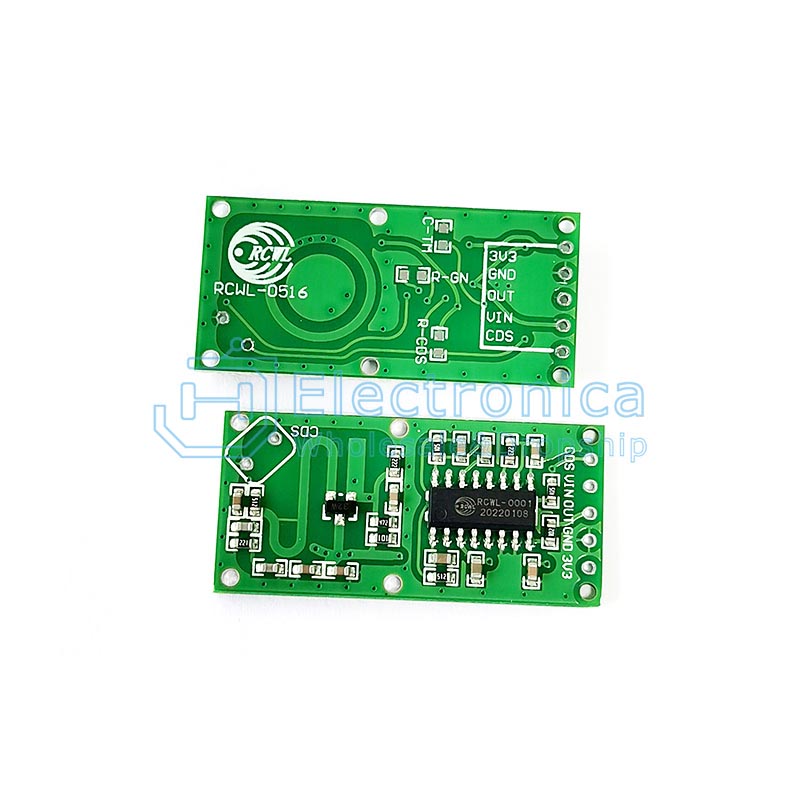

RCWL-0516 Microwave Radar Module

SKU : YXB207 Brand : JH Stock

Price : $ 0.19~0.26

100 +: $0.19~0.26500 +: $0.19~0.261000 +: $0.19~0.26

Style：

RCWL-0516 Module(5-8m）
RCWL-0516 Module(12m)
RCWL-0516 Module(15m)
