Description

Voltage:DC 9V~12V(with Power Polarity Reverse Protection)
Working Current:≤55 mA
PLJ-0802 embedded intelligent frequency meter is a frequency measurement instrument designed specifically for HAM. It is compact and exquisite, easy to operate, and reliable in operation. It is mainly used for DIY transceivers to display frequency values, and can also be used for conventional frequency measurement. The main features of this frequency meter are as follows:
A high-performance 1.2GHz frequency meter based on Microchip's 8-bit microcontroller PIC16F648A.
The built-in frequency reference adopts a temperature compensated voltage controlled crystal oscillator (± 2.5ppmVC-TCX0).
Dual intermediate frequency design, intermediate frequency value and addition/subtraction mode can be pre-set separately.
Using LCD0802 LCD screen display, it can display 7 digits, and if the frequency value is invalid or zero, it will automatically hide.
Anti reverse power design, low-power battery power supply solution.
Dual button control, good human-machine interface.
All settings are automatically saved in EEPROM, and can be called directly on the next boot.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

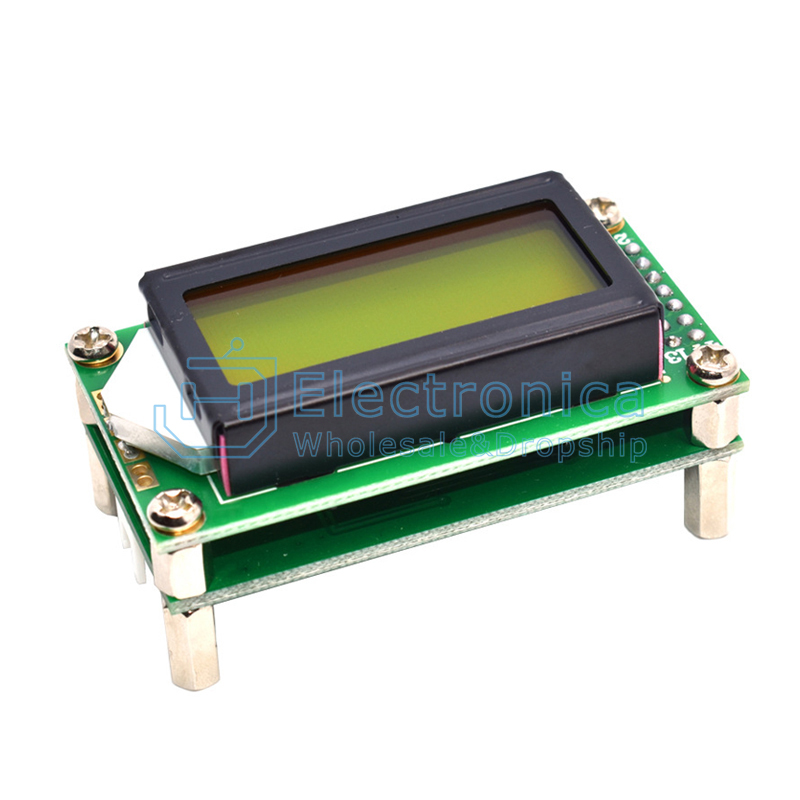

PLJ-0802-E 1MHz-1200MH Frequency Measurement Module

SKU : YXS2065 Brand :

Price : $ 9.47

100 +: $9.47500 +: $9.471000 +: $9.47
