Description

Photosensitive array 640X480

Electronic exposure 1 line to 510 lines
Pixel area 3.6μm x 3.6μm
IO voltage 2.5V to 3.0V (internal LDO supplies 1.8V to the core)
Power consumption 60mW/15fpsVGAYUV
Sleep <20μA
Temperature operation -30 ° C to 70 ° C
Stable operation 0 ° C to 50 ° C
Optical size 1/6"
Angle of view 25°
Maximum conversion rate 30fps VGA
Sensitivity 1.3V / (Lux-sec)
Signal to noise ratio 46 dB
Dynamic range 52 dB
Dark current 12 mV/s at 60 °C

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

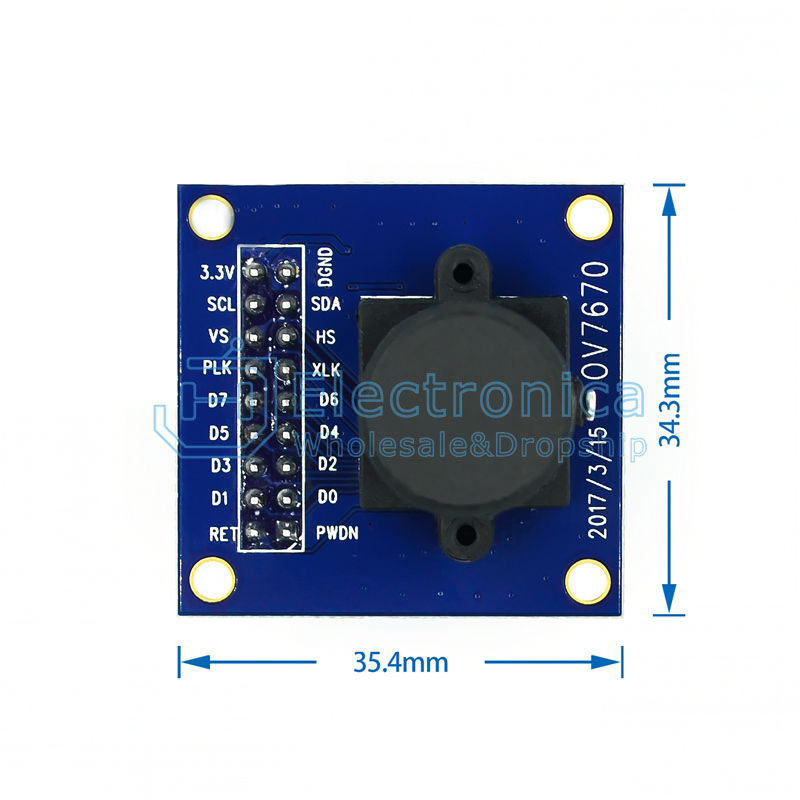

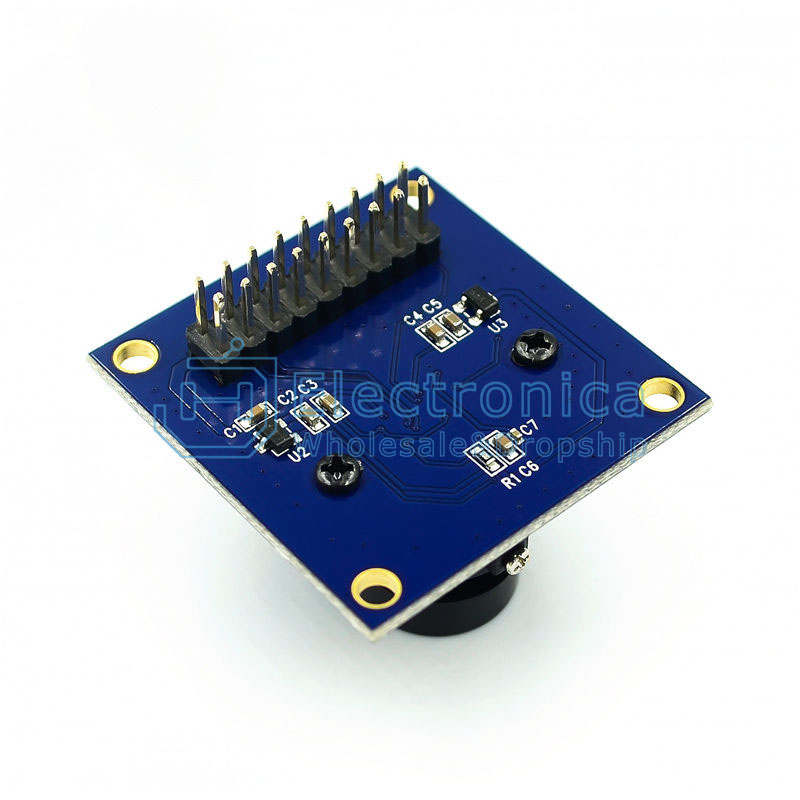

OV7670 Camera Module with STM32 Driver Microcontroller

SKU : YXA059 Brand : JH Stock

Price : $ 0.83

100 +: $0.83500 +: $0.831000 +: $0.83
