Description
Power supply range:DC 7.5-24v
Power amplifier gain:36dB(the board can be set to 26dB)
Input impedance:1KΩ
Output impedance:8-3.2Ω
Static current:11mA(powered by 12V)
Sleep current:<0.3mA(12V power supply)
Recommended audio equipment:30-100W(the higher,the better)
Signal-to-noise ratio:102dB
Harmonic distortion:<0.1%
Frequency response range:20Hz-20KHz
Operating temperature:-40 to 85℃

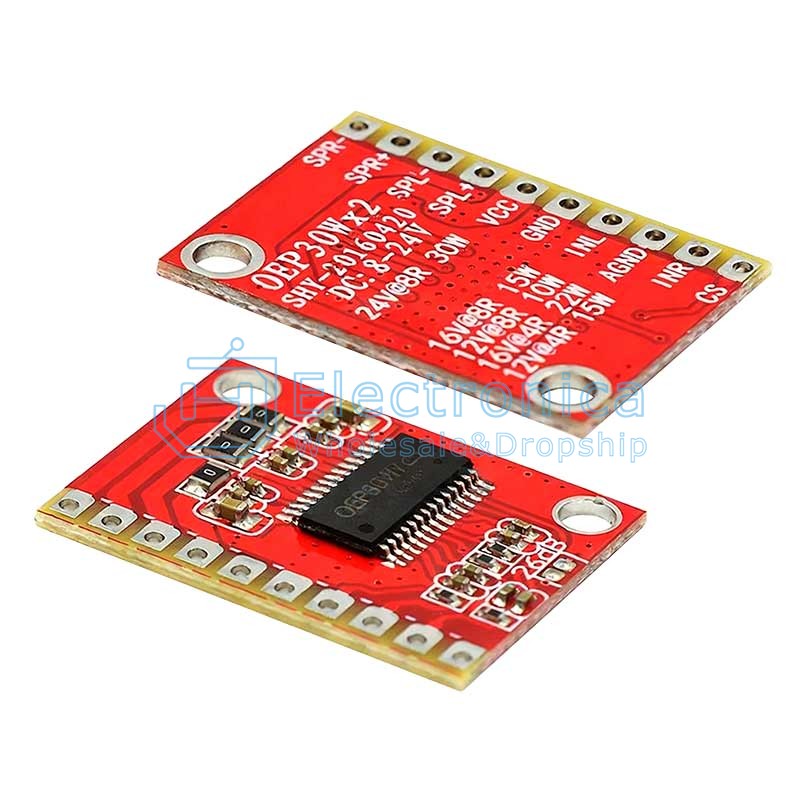

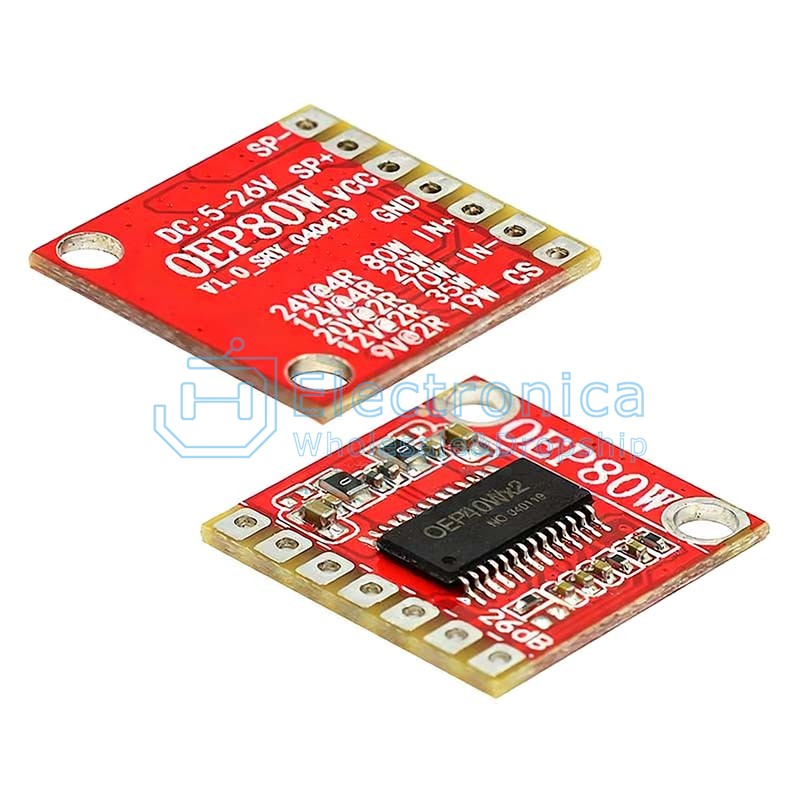

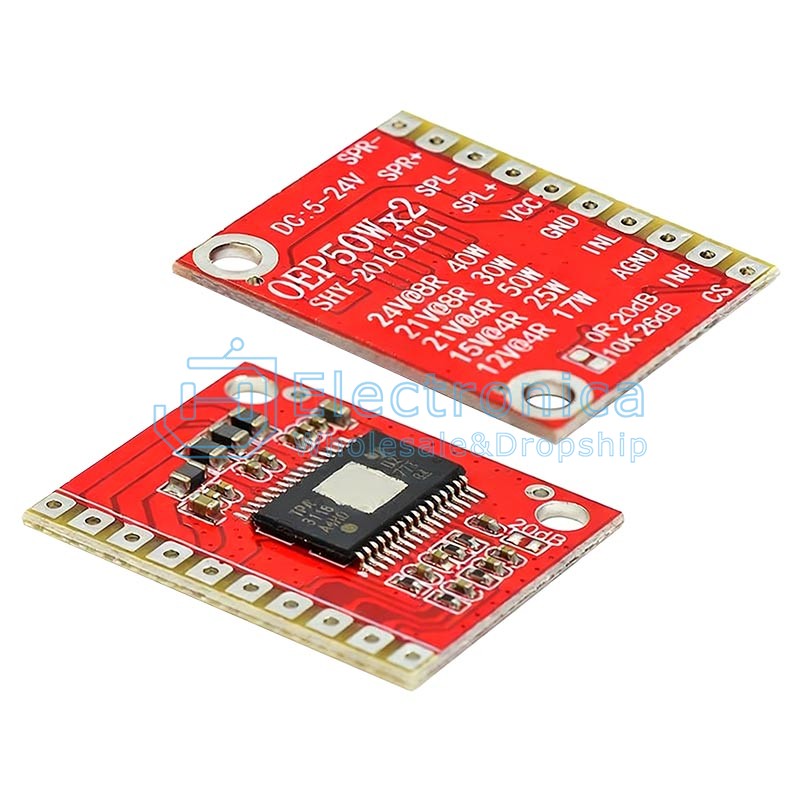

OEP5W/8W/30W/32W/60W/70W/80W/30W*2/50W*2 Class D Mono/Stereo Digital Power Amplifier Board
SKU : YXS2251 Brand :
