Description
Main Chip: NE555
Input current: >=100MAInput Voltage: 5V-15VDC
Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA
(12V power supply, V-PP greater than 50%)
The output frequency is adjustable:
1) Period T = 0.7 (RA +2 RB) C
2) RA, RB is 0-10K adjustable
3) Low profile when C = 0.001UF
4) IF stalls C = 0.1UF
5) High-frequency file C = 1UF
6) HF stalls C = 100UF (so buyers can calculate the frequency of the waveform.)
Suitable: for experimental development, experimental development and so on.
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

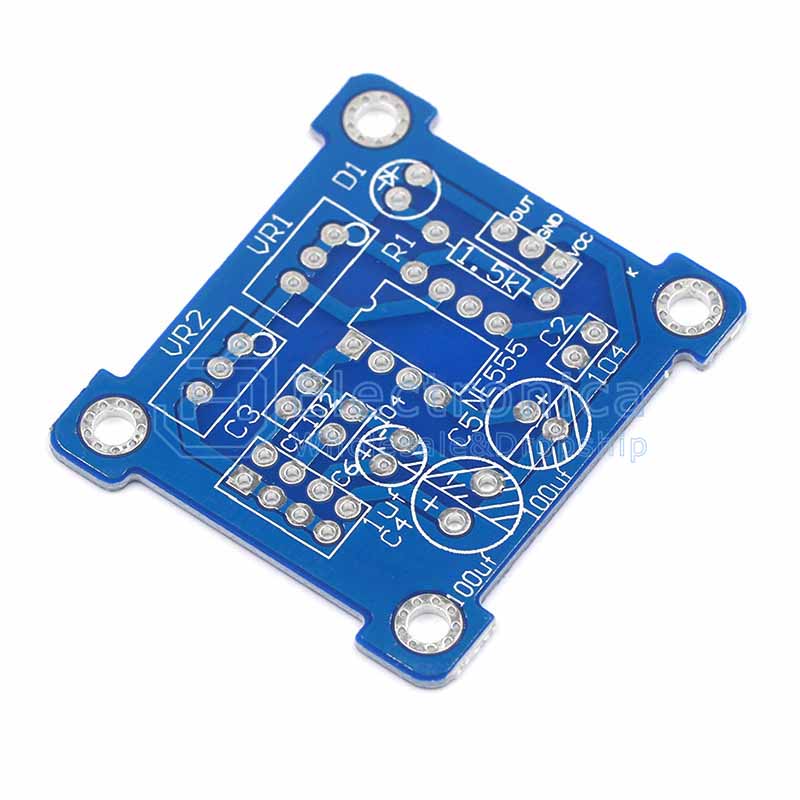

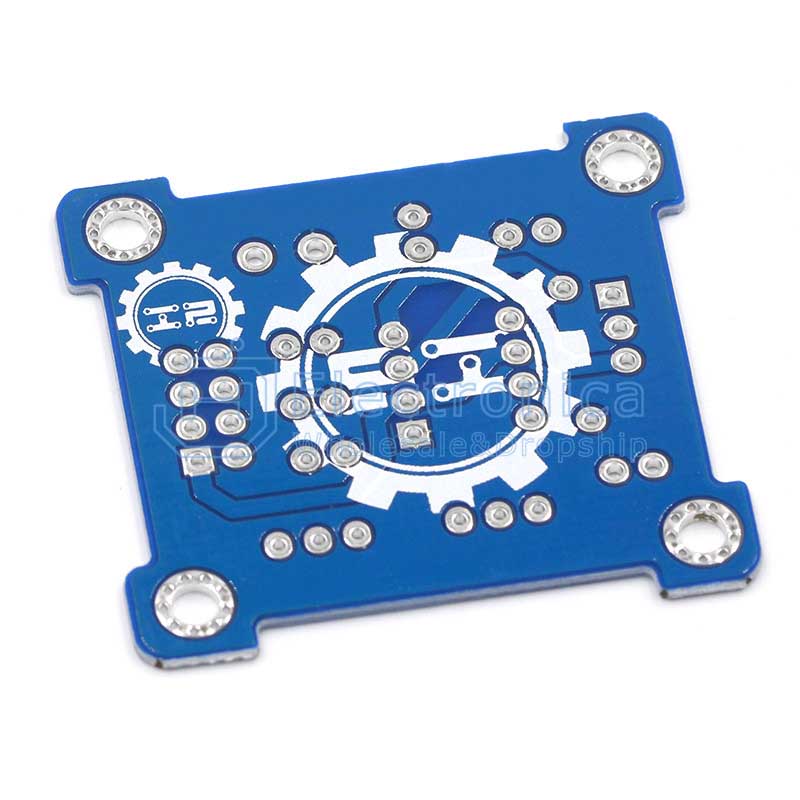

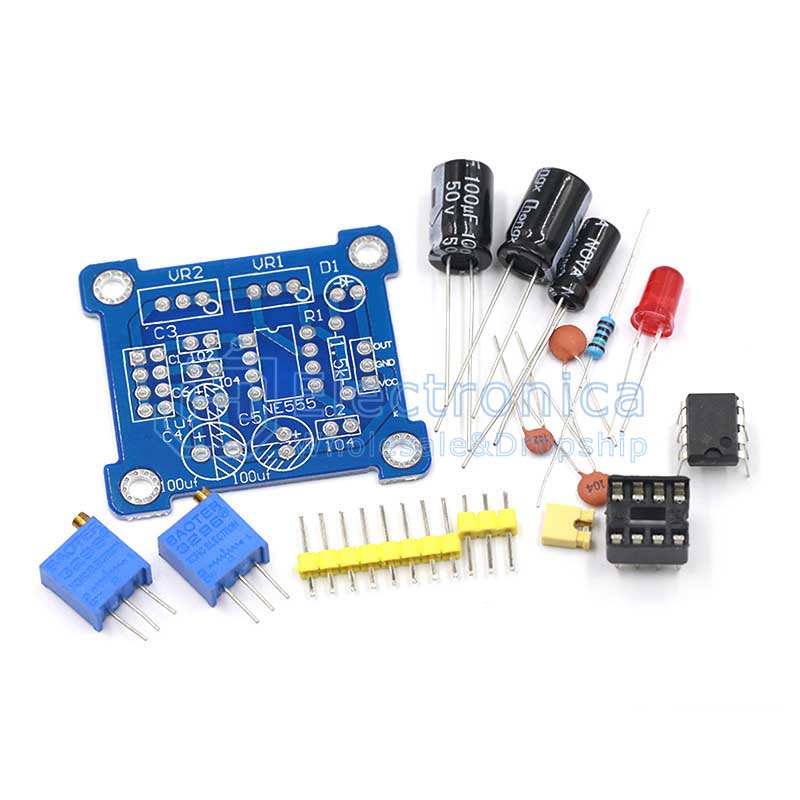

NE555 Pulse Generator Frequency Adjustable Module DIY Kit
SKU : YXA143 Brand : JH Stock
