Description
Combination height:8mm
Slider height:6.5mm
Rail height:4.8mm
Slider threaded hole:M2*2.4
Rail width:7mm
Guide rail bolt:M2*6
MGN9 Series:
Combination height:10mm
Slider height:8mm
Rail height:6.5mm
Slider threaded hole:M3*3
Rail width:9mm
Guide rail bolt:M3*8
MGN12 Series:
Combination height:13mm
Slider height:10mm
Rail height:8mm
Slider threaded hole:M3*3.5
Rail width:12mm
Guide rail bolt:M3*8
MGN15 Series:
Combination height:16mm
Slider height:12mm
Rail height:10mm
Slider threaded hole:M3*4
Rail width:15mm
Guide rail bolt:M3*10
MGW7 Series:
Combination height:9mm
Slider height:7.1mm
Rail height:5.2mm
Slider threaded hole:M3*3
Rail width:14mm
Guide rail bolt:M3*6
MGW9 Series:
Combination height:12mm
Slider height:8.9mm
Rail height:7mm
Slider threaded hole:M3*3
Rail width:18mm
Guide rail bolt:M3*8
1 piece price apply to 100mm length. Please buy required length , and tell us how to cut them for you
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

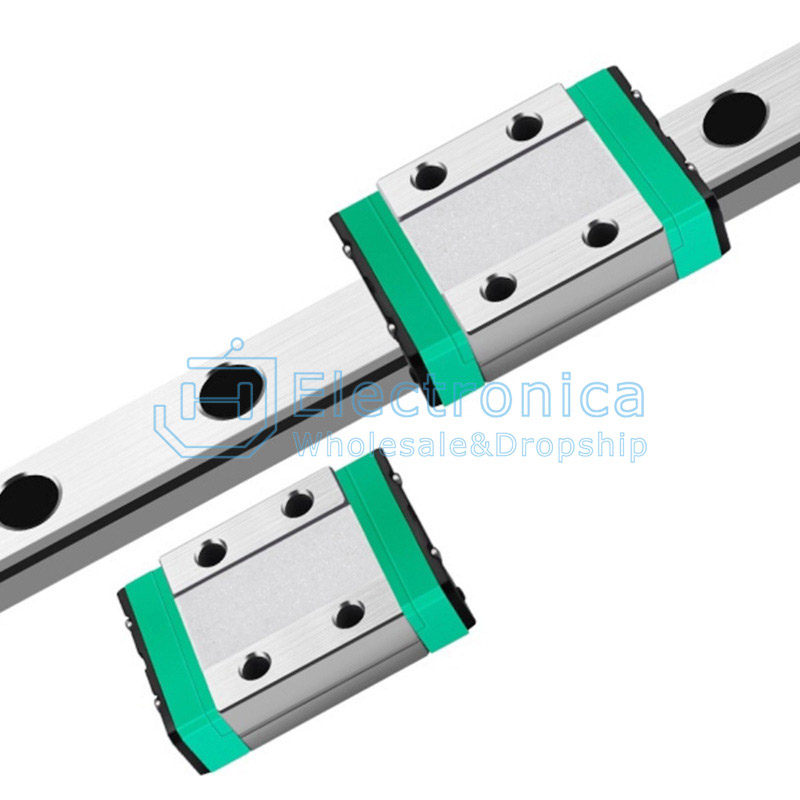

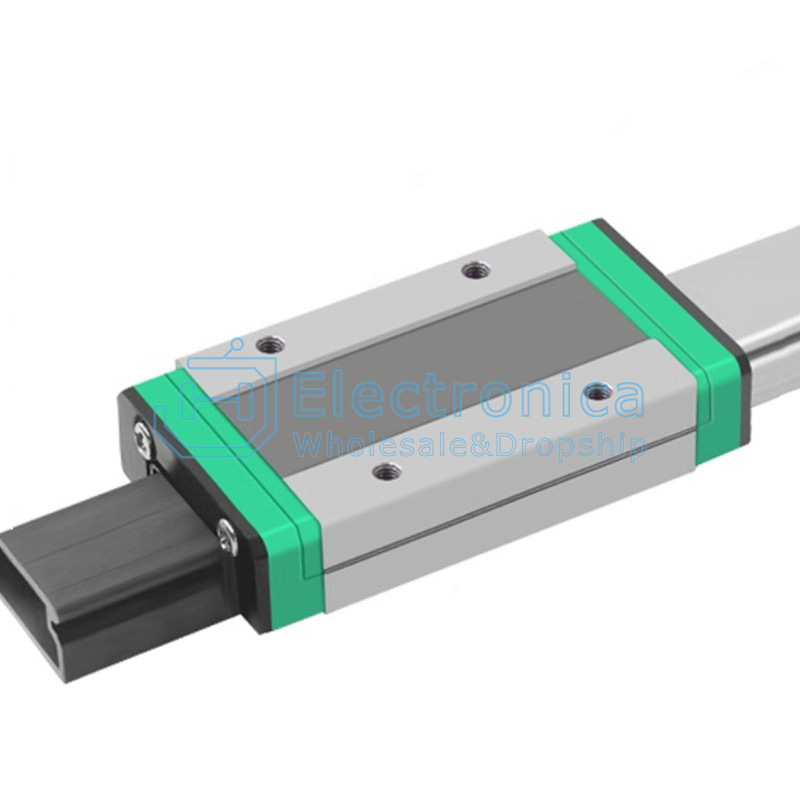

Micro Linear Guide Slider
SKU : YXC1175 Brand :
style：

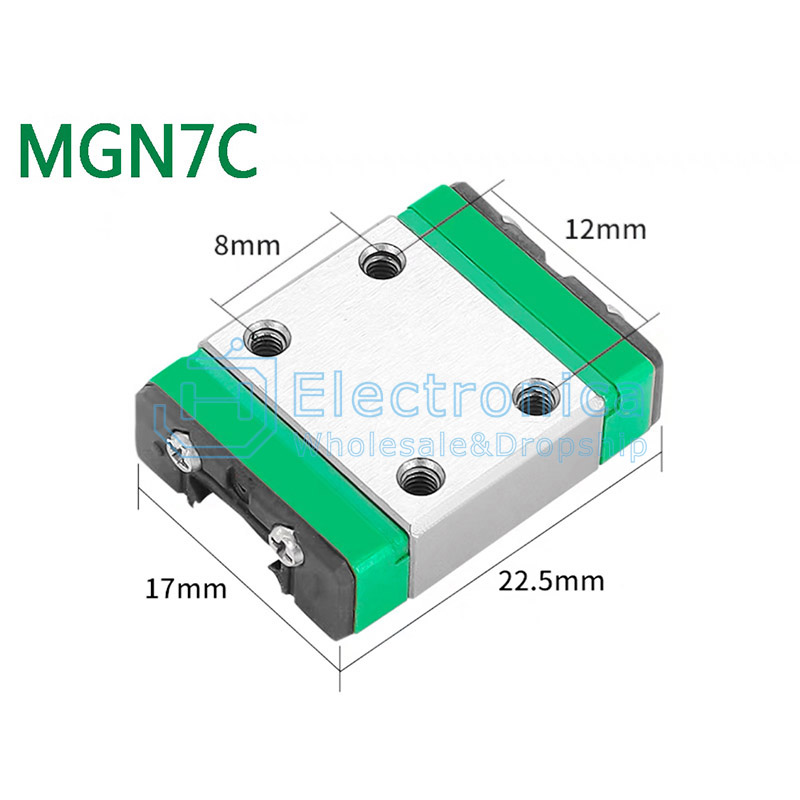

MGN7C

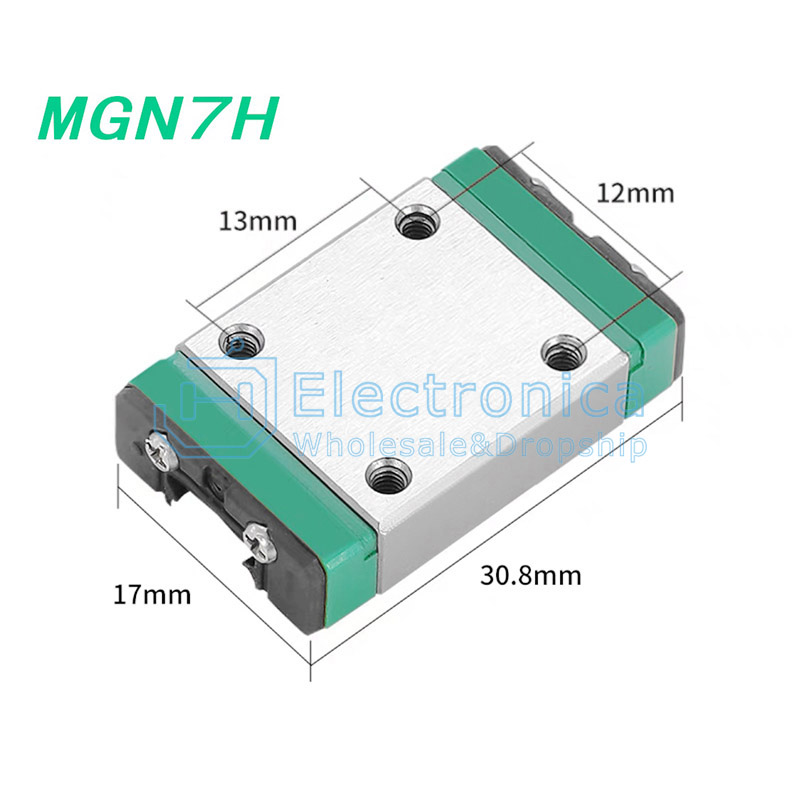

MGN7H
MGN7R(100mm).MGN9C(1).jpg)

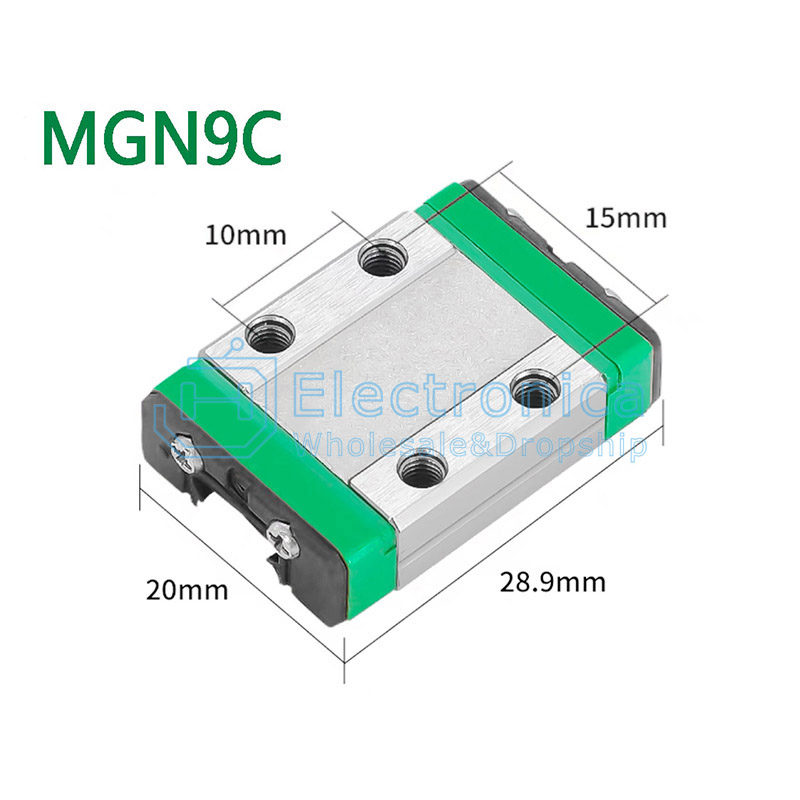

MGN9C

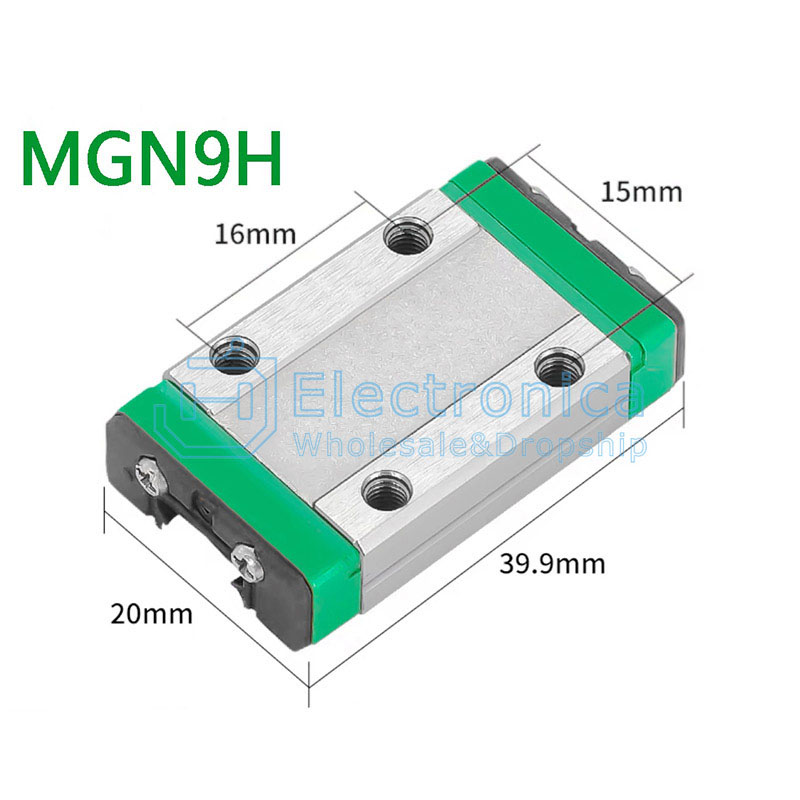

MGN9H

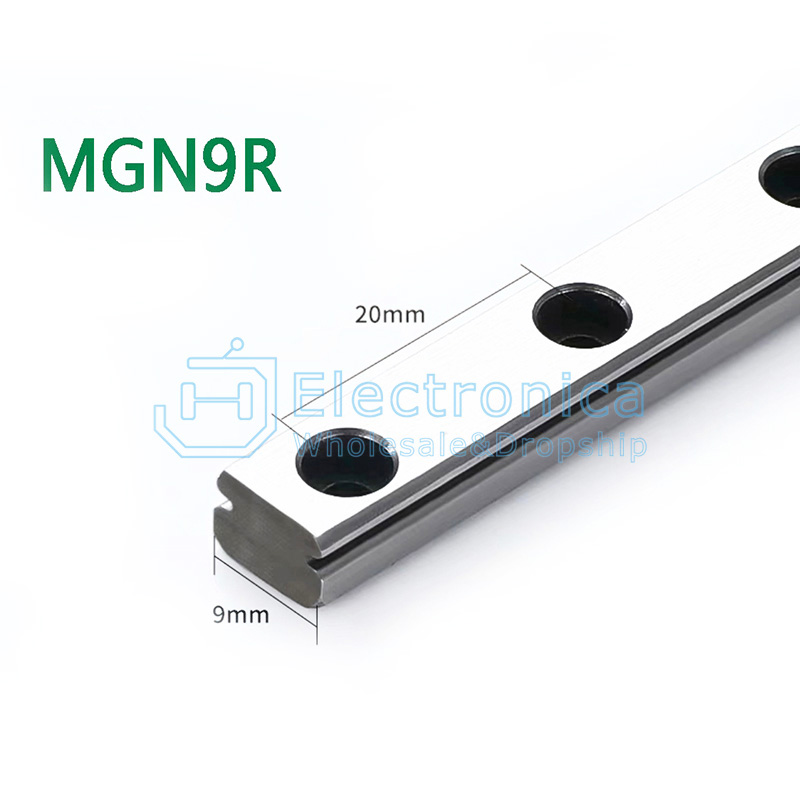

MGN9R(100mm)

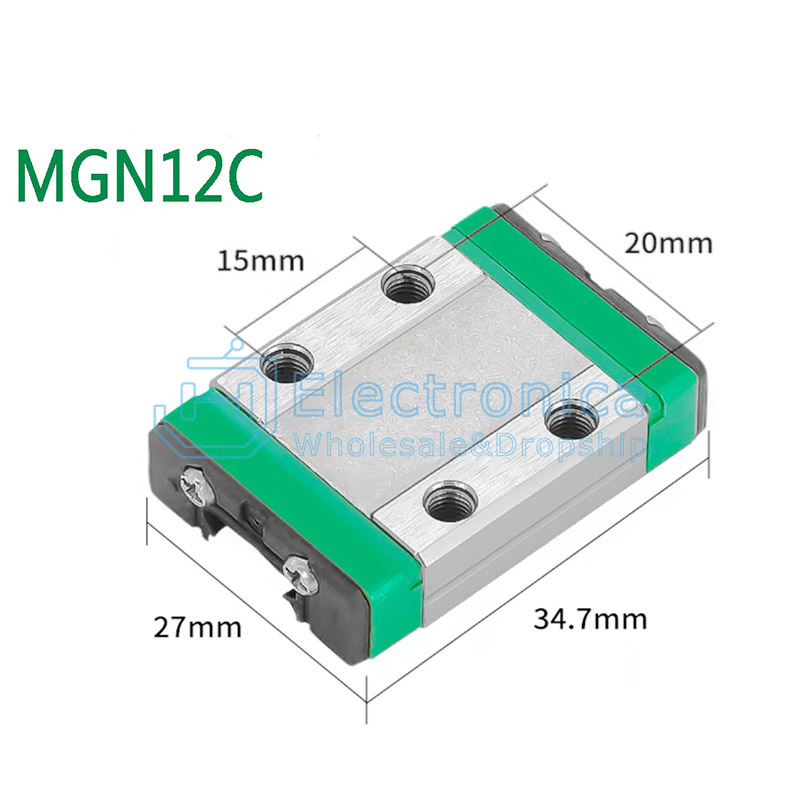

MGN12C

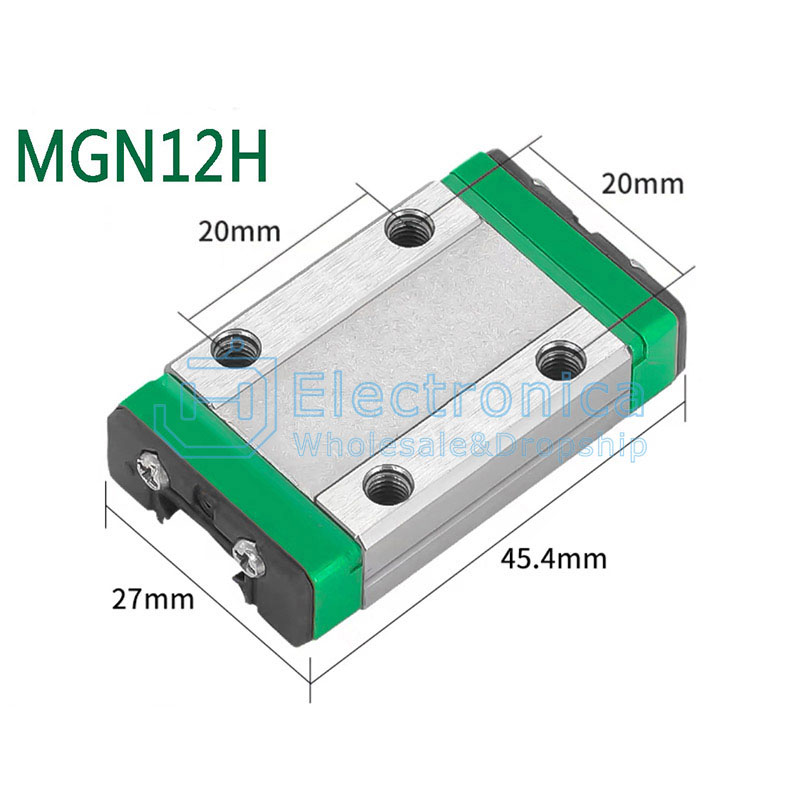

MGN12H

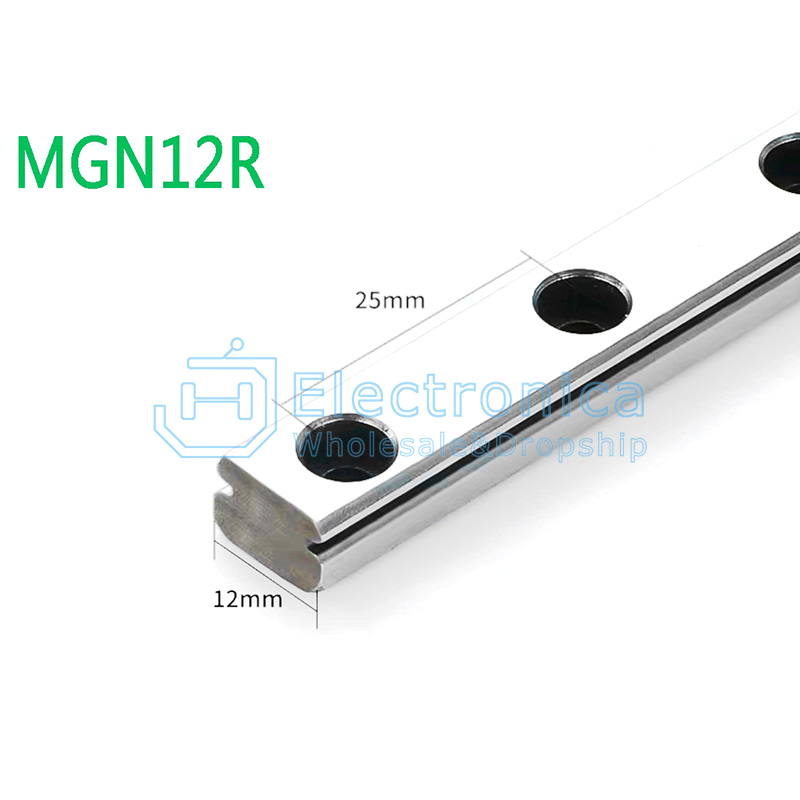

MGN12R(100mm)

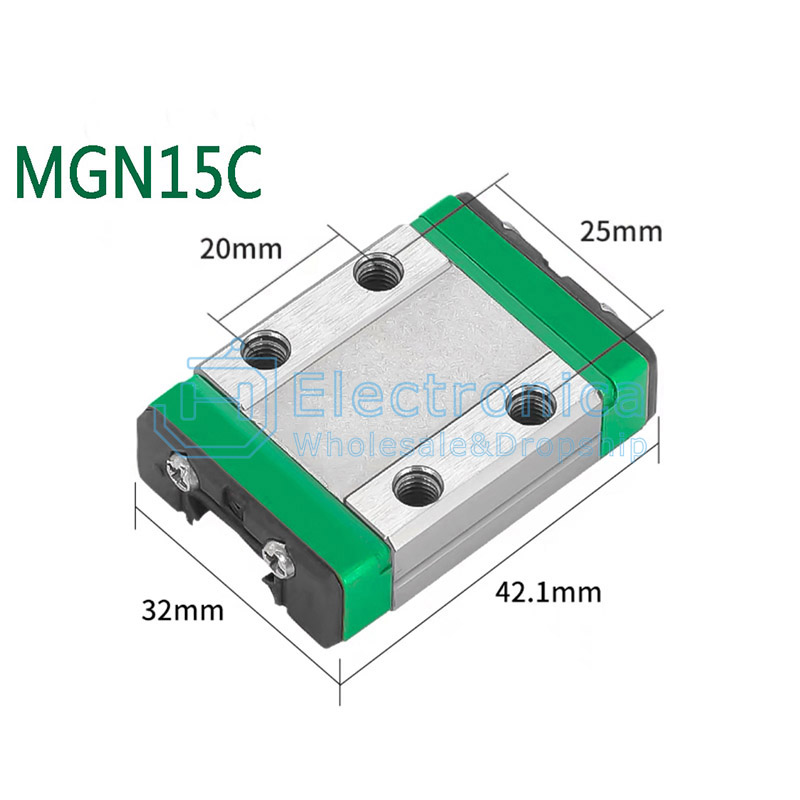

MGN15C.MGN15H(1).jpg)

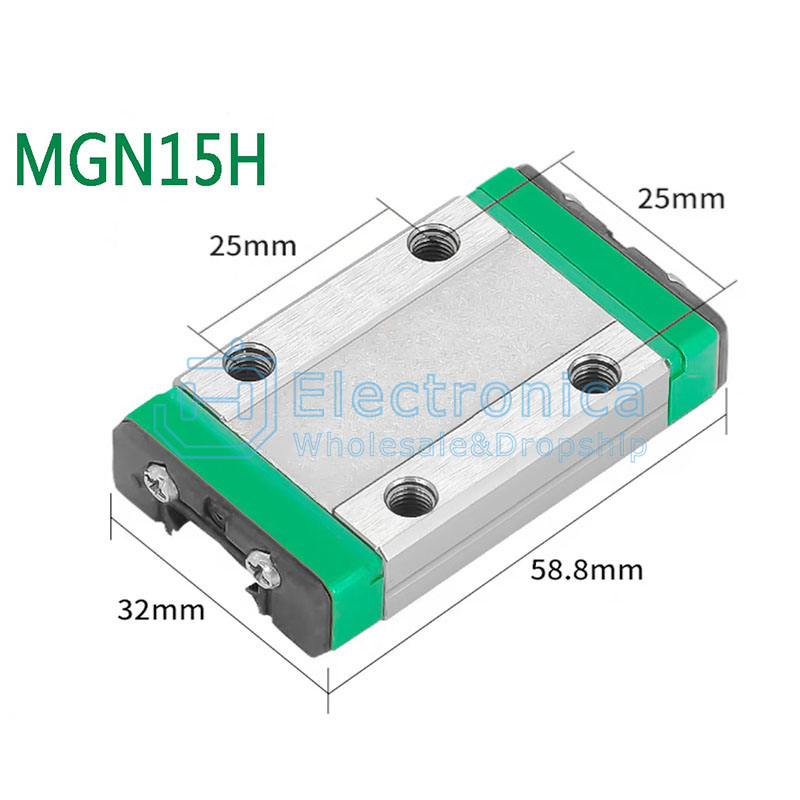

MGN15H

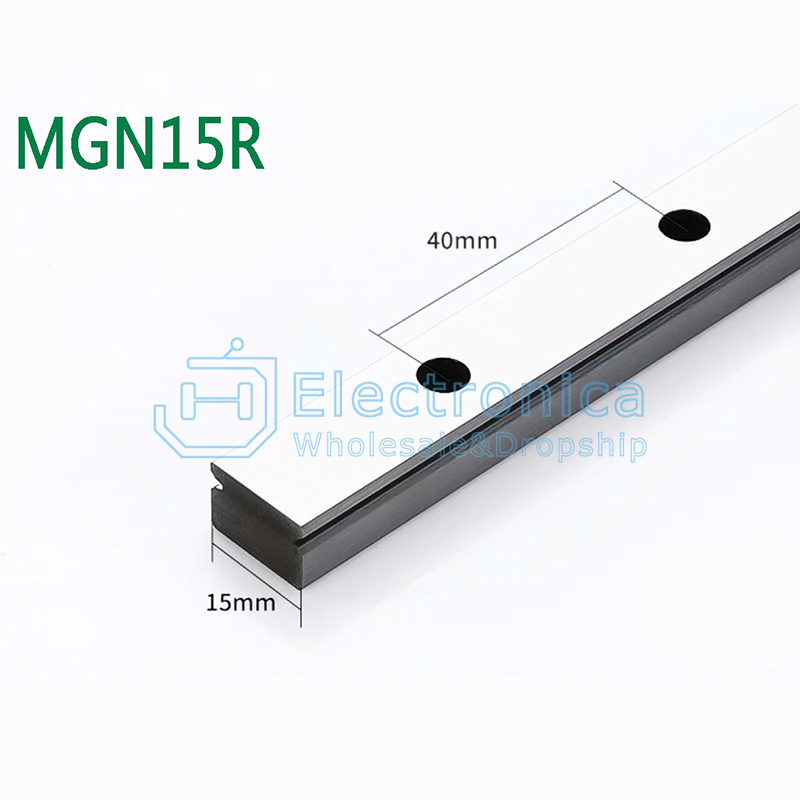

MGN15R(100mm)

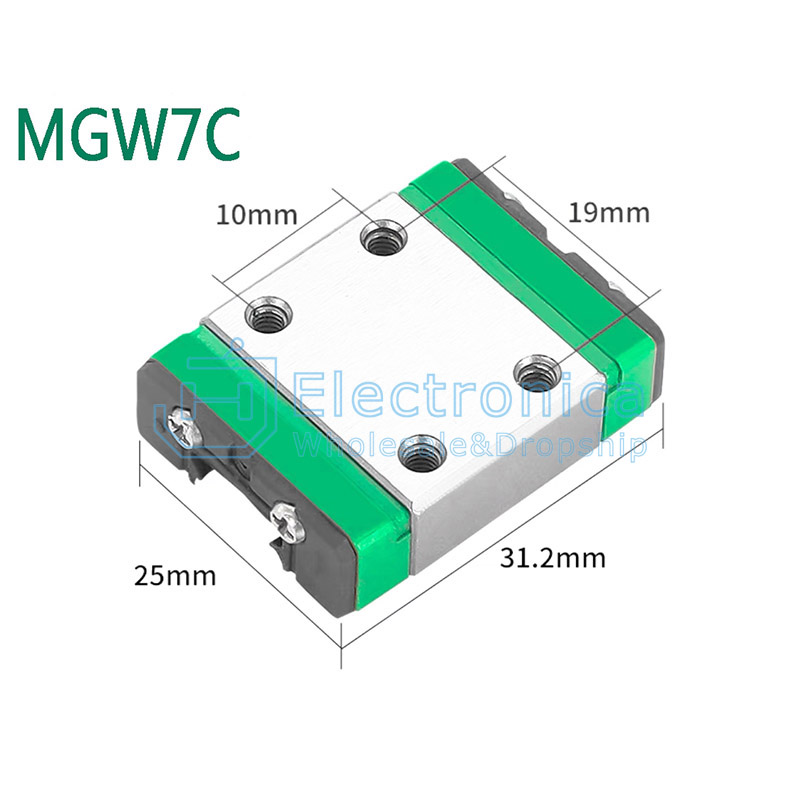

MGW7C

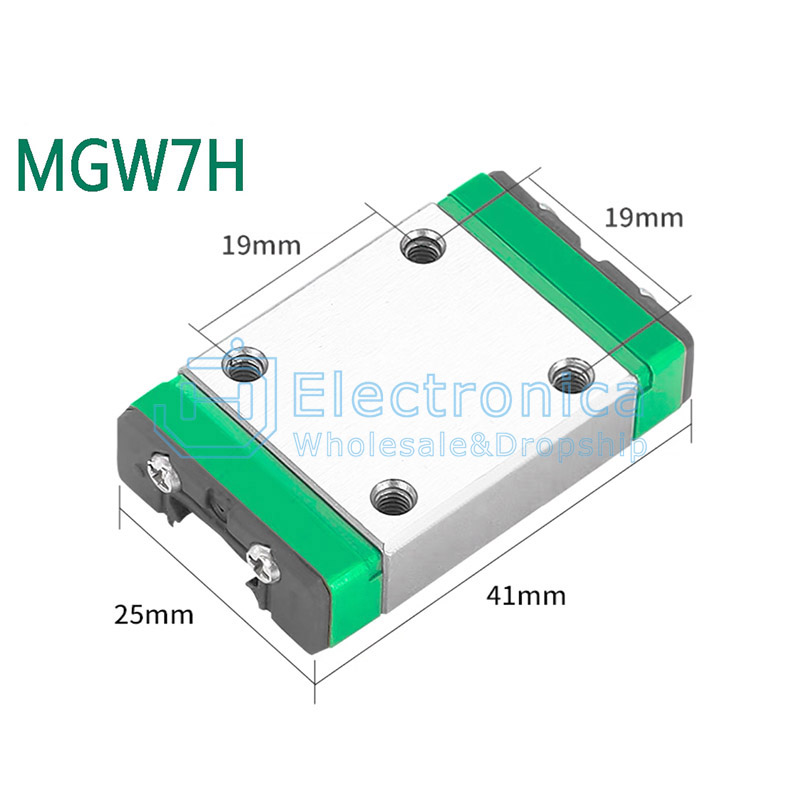

MGW7H

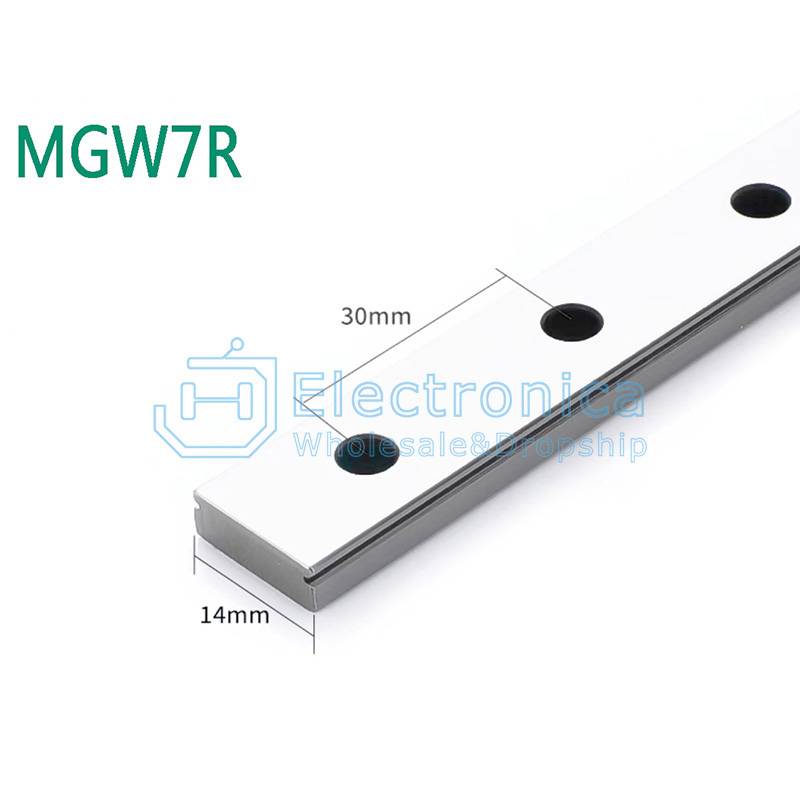

MGW7R(100mm)

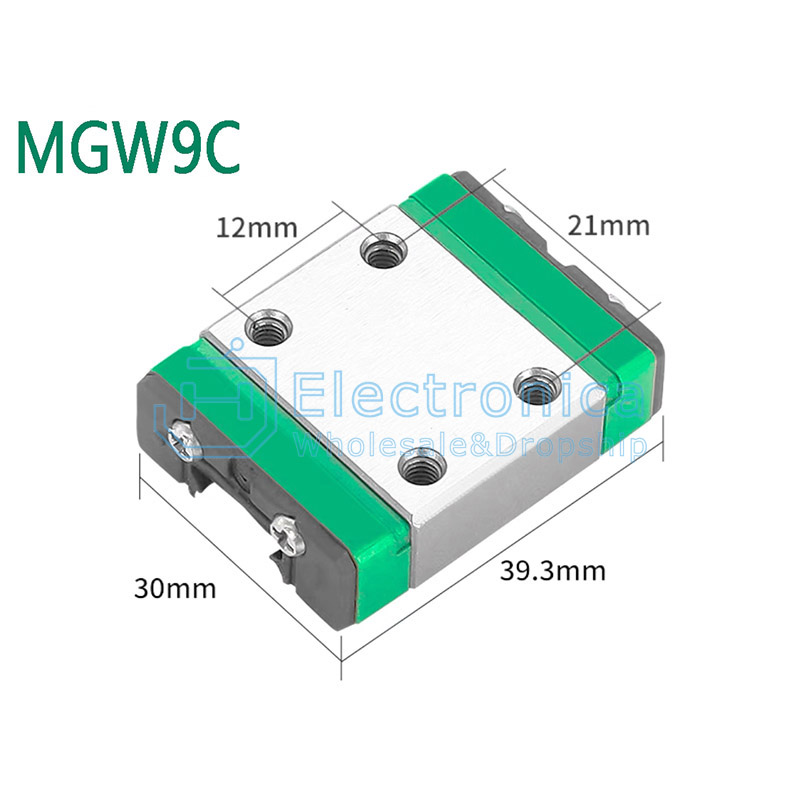

MGW9C

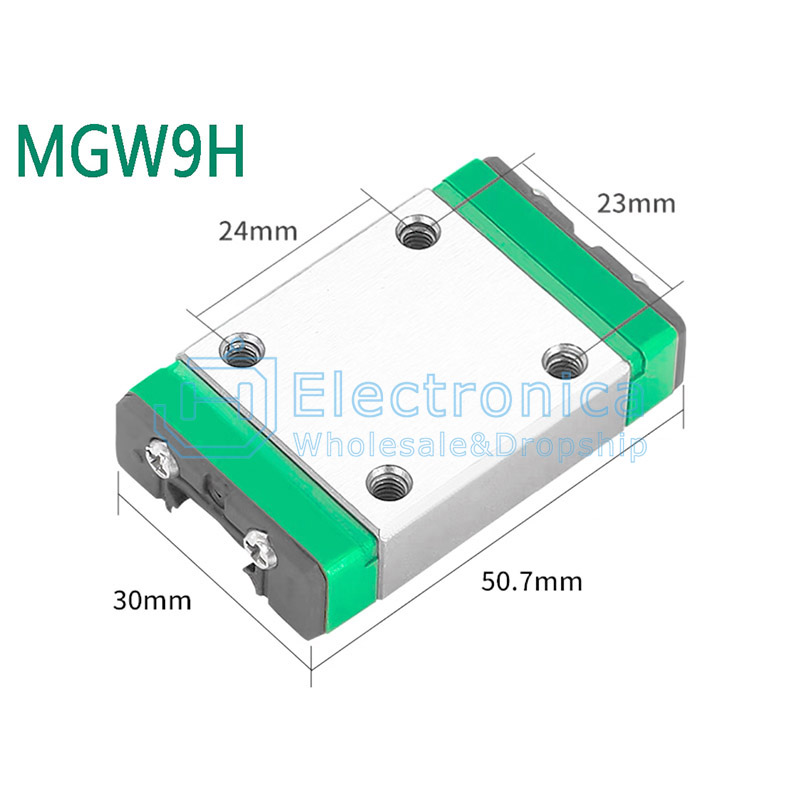

MGW9H

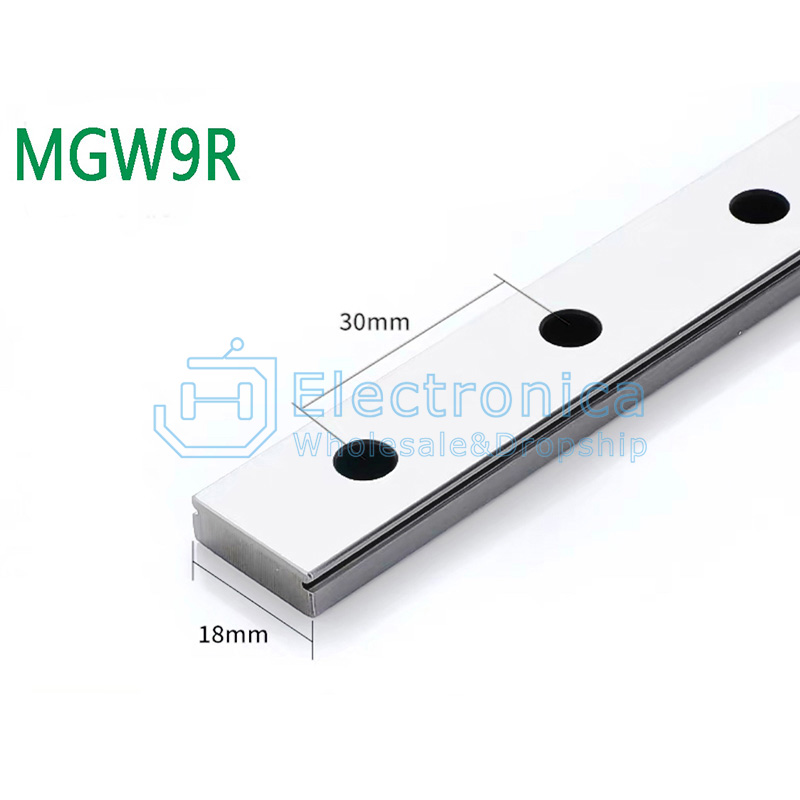

MGW9R(100mm)

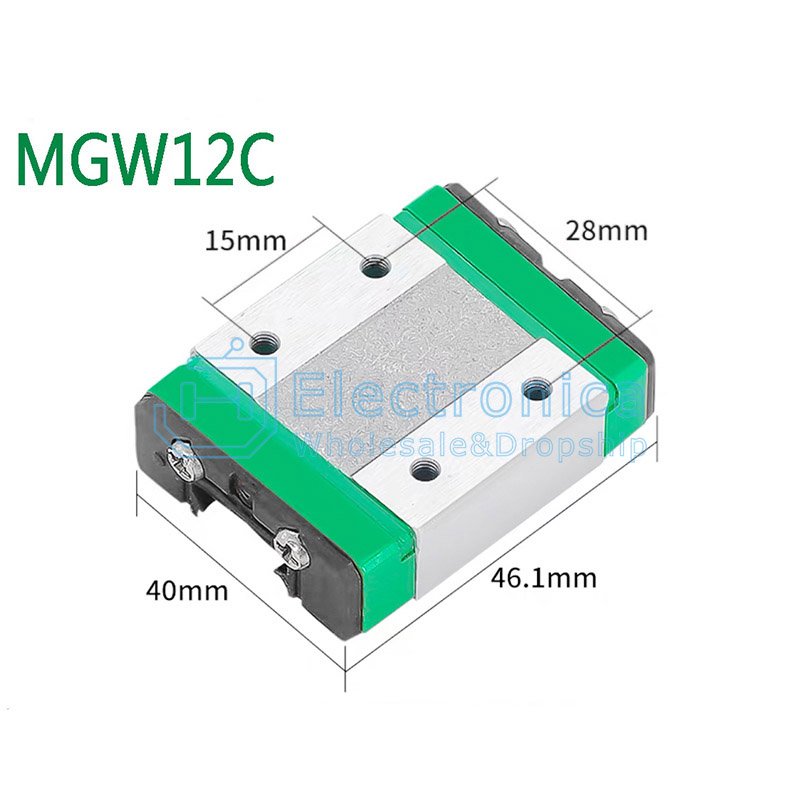

MGW12C
MGW12H
MGW12R(100mm)

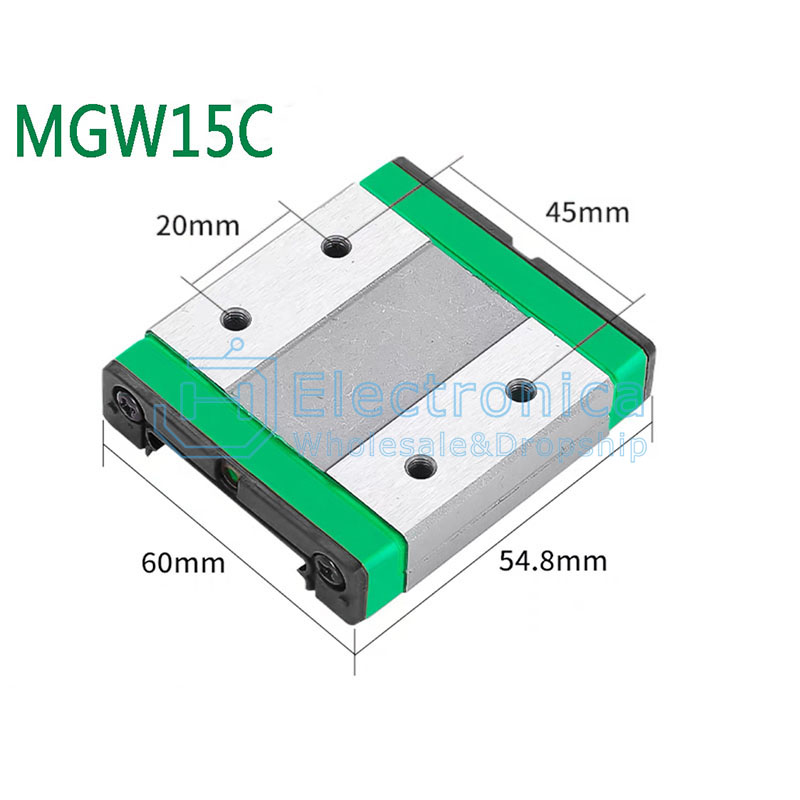

MGW15C

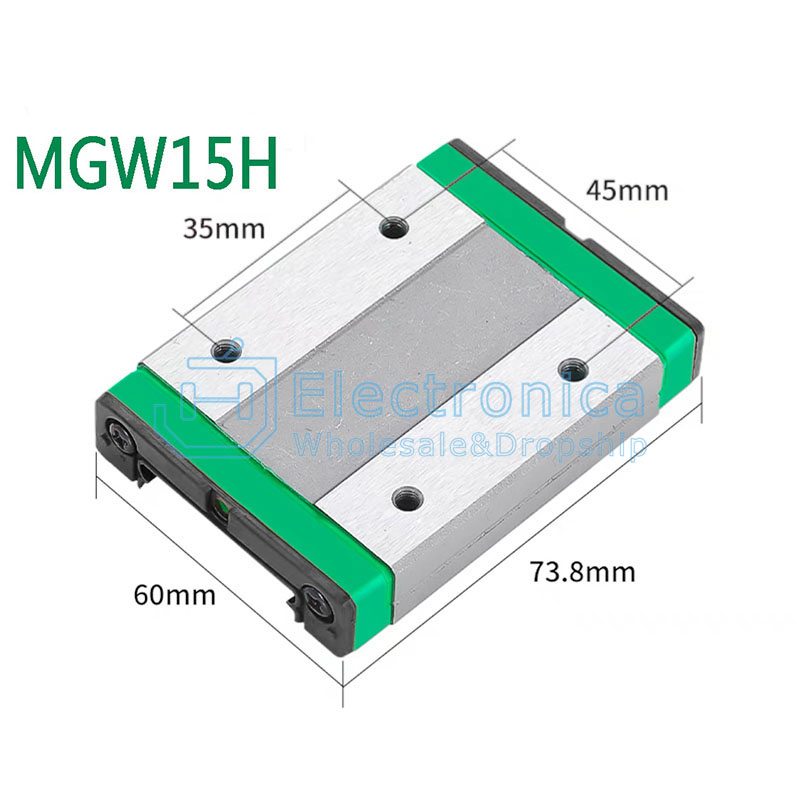

MGW15H

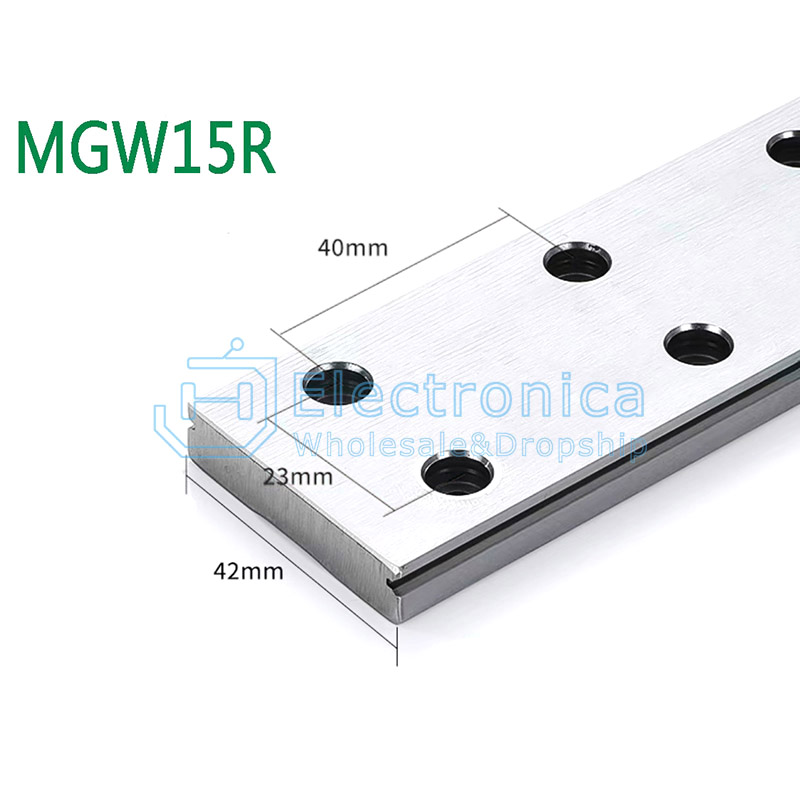

MGW15R(100mm)
