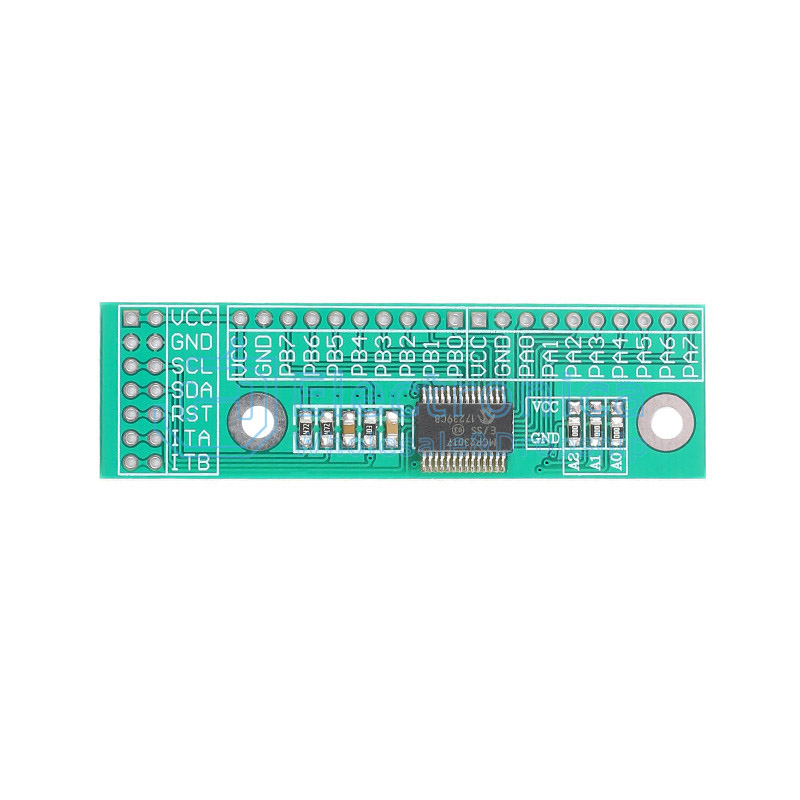

Product Parameters:
Working temperature range:-40℃~85℃
Working voltage:3.0V~5.5V
IIC communication frequency:1.7MHz maximum
Operating current:1μA
Size:65*19mm M3 mounting hole

Product Features:
MCP23017 can convert 16 bit parallel data into serial data on the IC interface and can convert each other. Internally integrated power on reset (POR) circuit, reset to the default state of the device. Two independent programmable interrupt source outputs. The polarity flip register can be configured with GPIO input polarity or output, and can be set to use pull-up resistors. The interrupt function can be activated for all 10 configured inputs. 10 ports have strong driving ability, and the current can be poured and pulled up to 25mA

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
