Description

Rated Voltage:1000VDC
Rated Current:30A
Safety Class:Class Ⅱ
Protection Degree:IP67
Contact Resistance:≤5mΩ
Pollution Degree:2
Insulation Material:PPO
Ambient Temperature:-40～+85℃
Line Range:4m㎡
Flame Class:UL94-V0
Install hole:12mm≤Φ≤16mm
Terminations:For close barrel: 340N/2,5m㎡; 500N/4m㎡
Cable clamp(pull):Cable OD:4 up to 9 mm PULL≥60N
Application:This connector is specifically designed for connecting photovoltaic system components inside and outside of building and equipment
General Features:
Possess excellent resistance to high temperature, fireprotection, anti-aging and anti-UV properties, to meet the outdoorlong-term use under harsh environmental conditions require
Excellent sealing performance, waterproof and dustproof rating upto IP67
Male and female head swap with a self-locking, electricalconnections fully reliable, open and close freel
Has broad applicability, can be inserted with the MC4
TUV approval

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

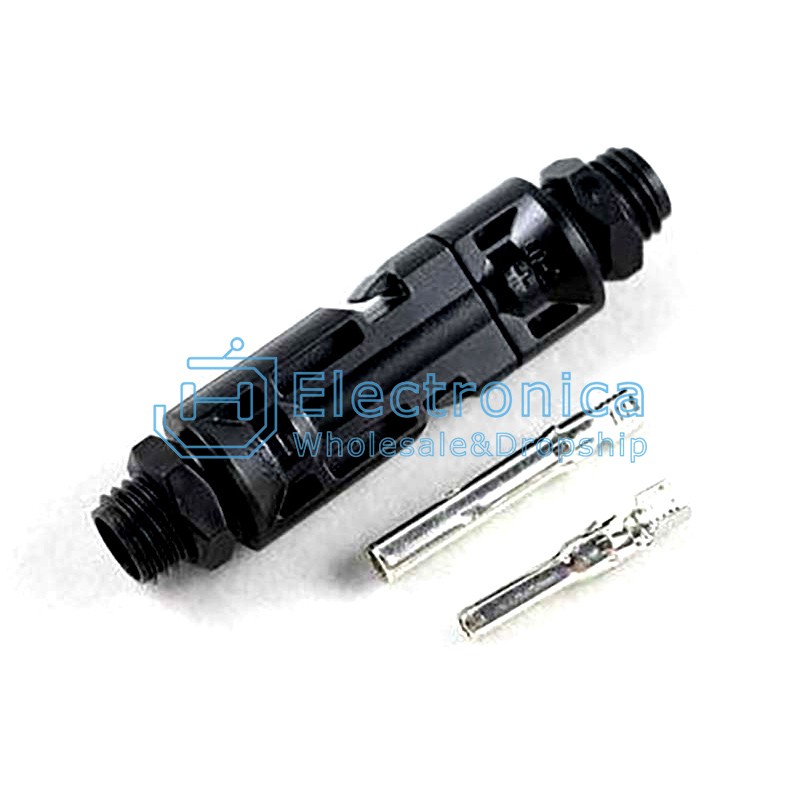

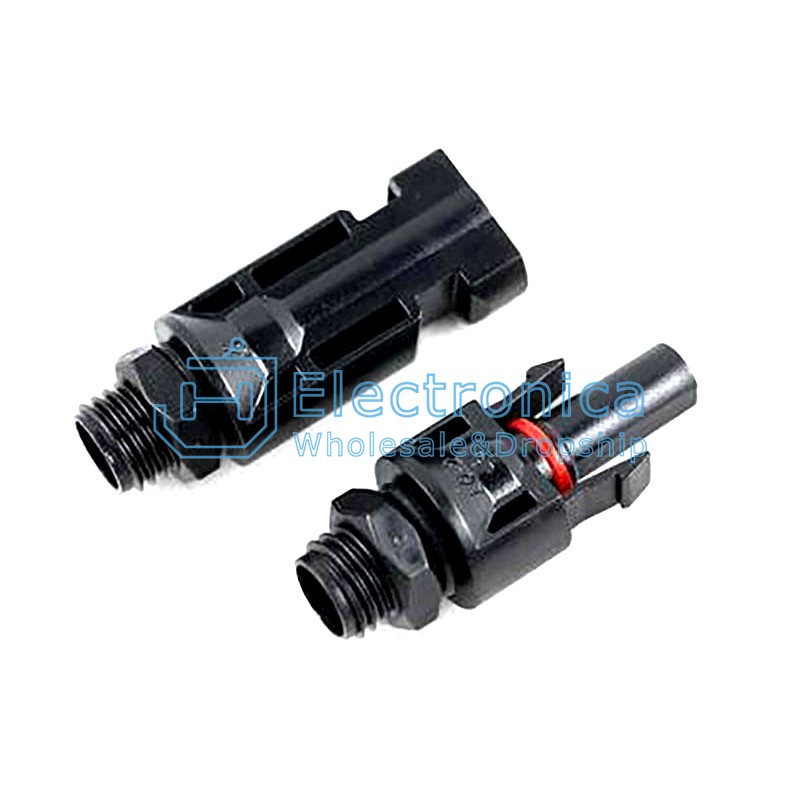

MC4 Solar Panel Junction Connectors

SKU : YXC1395 Brand :

Price : $ 0.26

100 +: $0.26500 +: $0.261000 +: $0.26
