Description

Features:
1:Ultra quiet
2:Large heat sink,good heat dissipation
3:Support sensorless-homing function.
4:Support uart mode by set jumper caps instead of welding on mks gen_l V2.0,skr1.3/1.4,mks sgen_l. Parameter:
1:Default current:1.25a
2:Max current:2.5a
3:Logic voltage:3.3v/5v
4:Input voltage:5.5v-28v
5:Microstep:up to 1/256
6:Mode:dir/step,uart

Driver current regulation:
1:Verf measures the voltage of Gnd and potentiometer middle.
2:Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.
3:Please connect the power supply when measuring voltage as well, do not connect only the USB power.
4:Please pay special attention to the direction, do not insert wrongly!
Driver current algorithm:
I=Vref Default I=1.25A

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

Packing list:1×TMC2209 Stepper Motor Driver

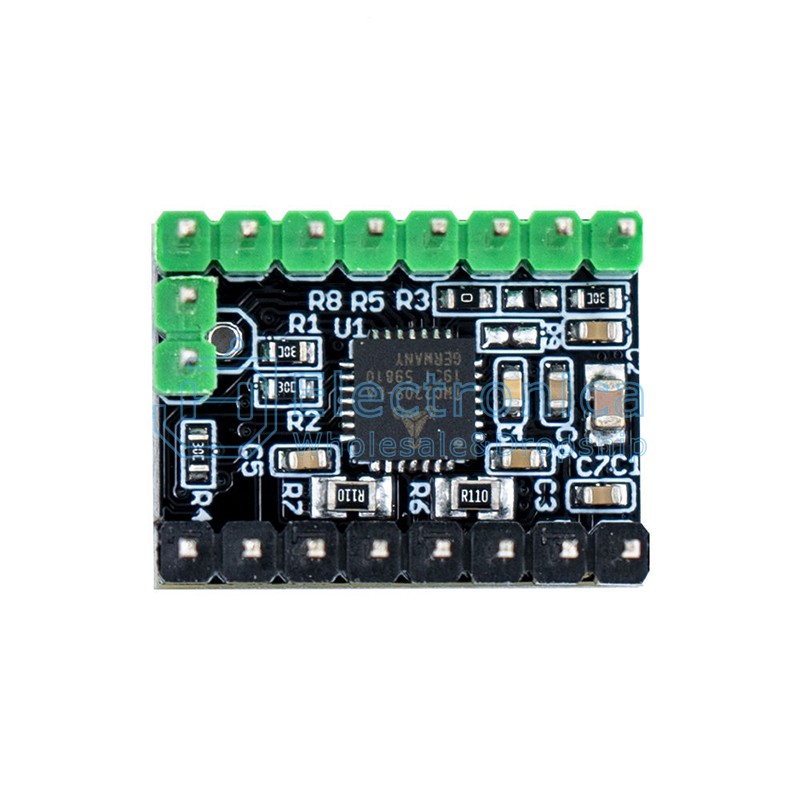

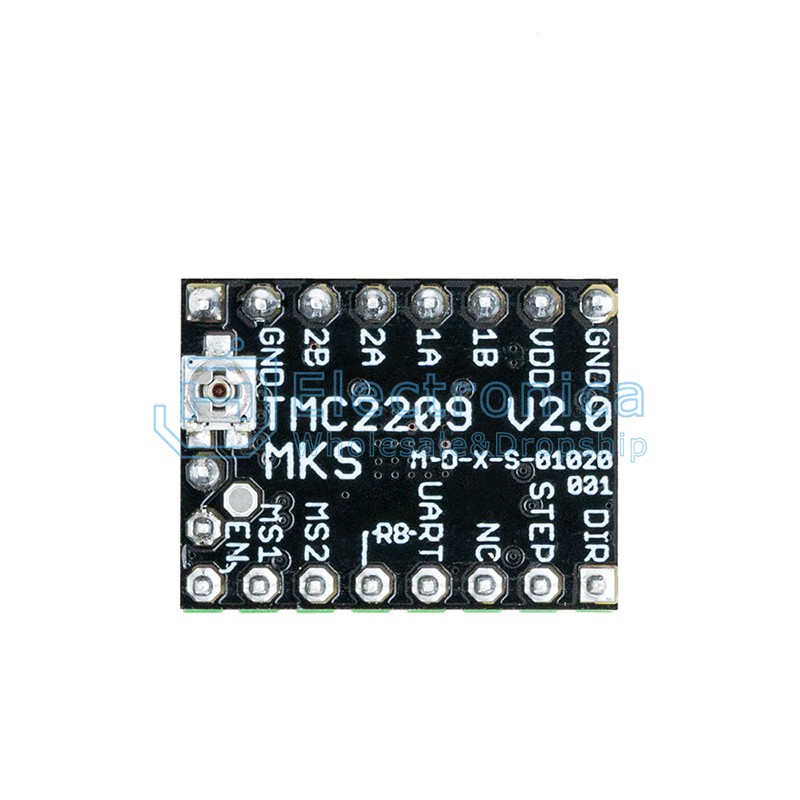

Makerbase TMC2209 Stepper Motor Driver 2.5A Ultra Silent

SKU : MB002 Brand : Makerbase

Price : $ 2.50

100 +: $2.50500 +: $2.501000 +: $2.50
