Description

A reed module is a magnetic sensor that is normally open and get closed when exposed to a magnetic field.

Under normal conditions the 2 plates do not touch creating an open circuit digital output 0 when the switch is placed in the range of a magnetic field the 2 plates are attracted to each other and touch closeing the circuit and giving digit output 1.

Once the presence of the magnetic field is gone, the plates move away from each other breaking the circuit again.

On board potentiometer to set the sensitivity.

These are great for a range of different projects where it is beneficial to know if you are near a magnetic field.

Voltage : 3.3v to 5v
Normally-open
Comparator : LM393
Working distance : 15mm
Output Type : Digital output (0 and 1)
PCB size : 32mm x 14mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

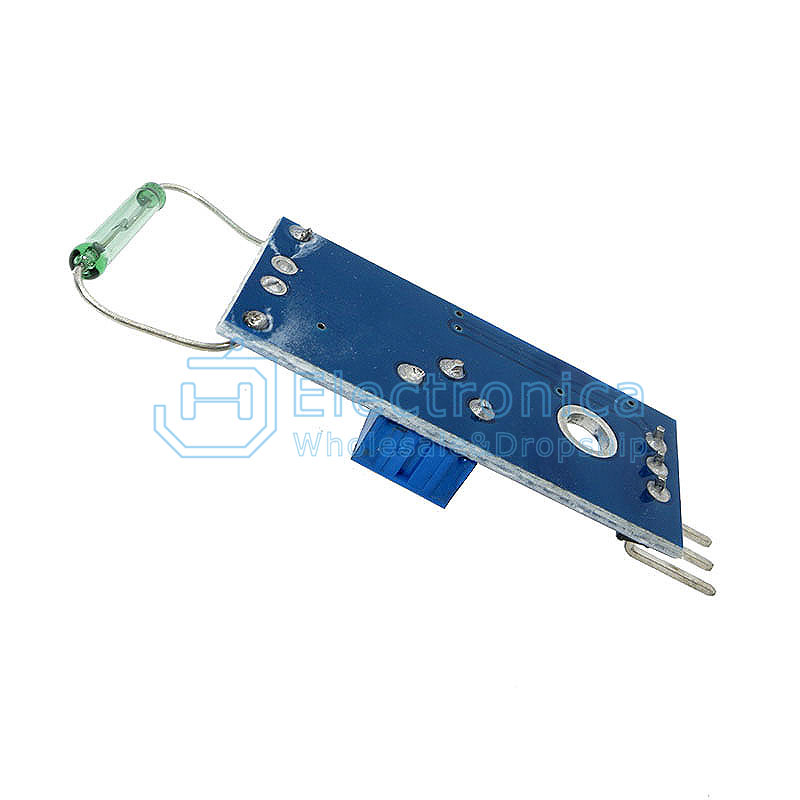

Magnetic Reed Switch Module

SKU : YXB025 Brand : JH Stock

Price : $ 0.27

100 +: $0.27500 +: $0.271000 +: $0.27

Quantity :

- +

ADD TO CART
