Description

Supply voltage:DC5V
Board size:60*36mm
Function Description:
The production kit of this logic test pen is mainly used to introduce a logic pen that uses a single CD4511BE to control the display of a digital tube. The CD4511BE includes two independent, high gain, and internal frequency compensated dual operational amplifiers, suitable for single power supply with a wide range of power supply voltage, and also suitable for dual power supply operation mode. Under recommended operating conditions, the power supply current is independent of the power supply voltage
Its scope of use includes sensing amplifiers, DC gain modules, audio amplifiers, industrial controls, DC gain components, and all other occasions where operational amplifiers can be used with a single power supply

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

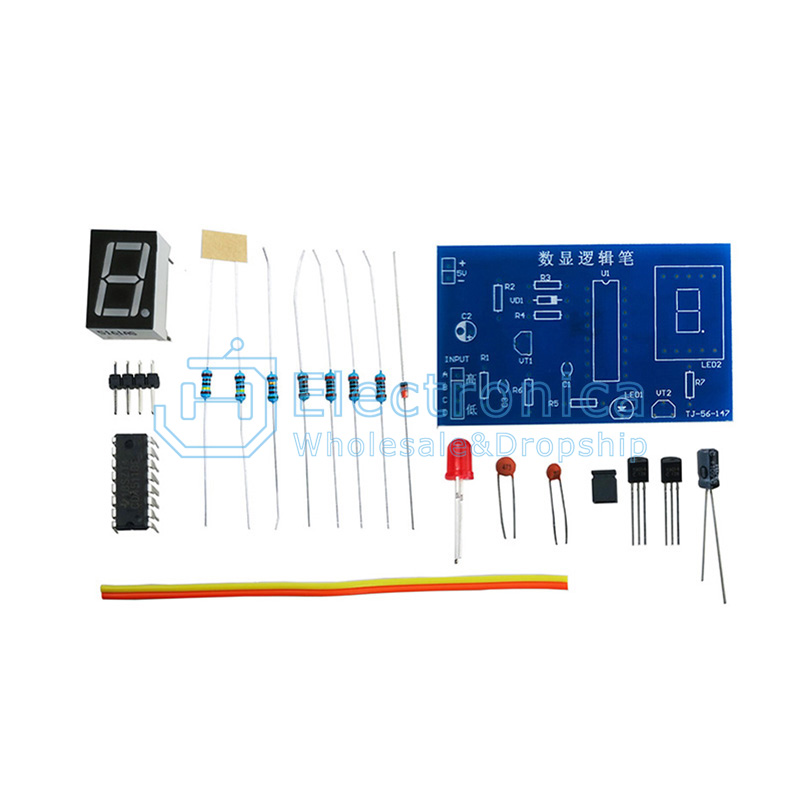

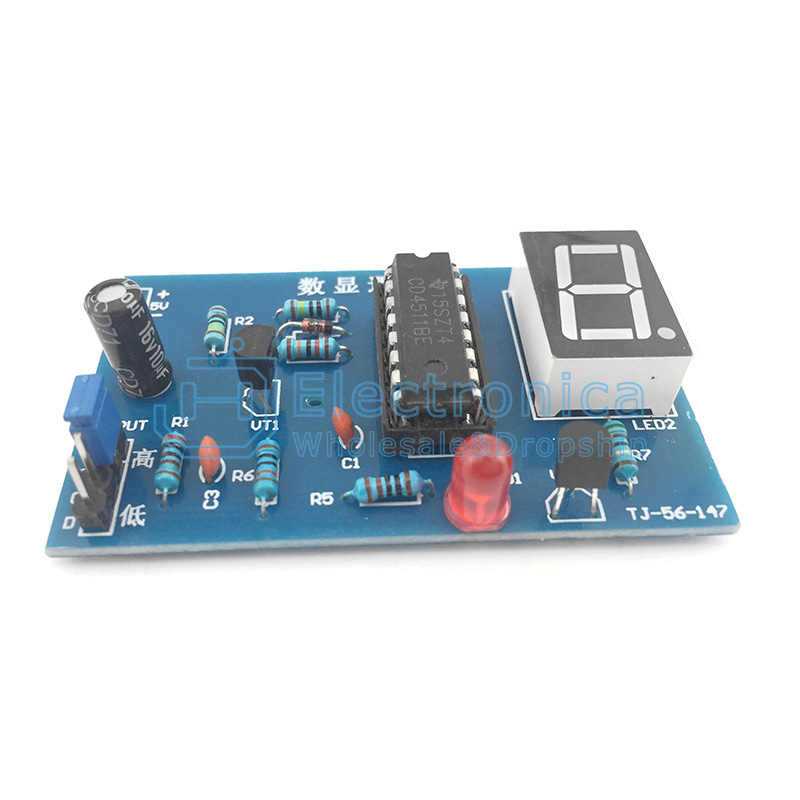

LED Digital Display Logic Pen Kit

SKU : YXS1594 Brand :

Price : $ 0.13~0.58

100 +: $0.13~0.58500 +: $0.13~0.581000 +: $0.13~0.58

style：

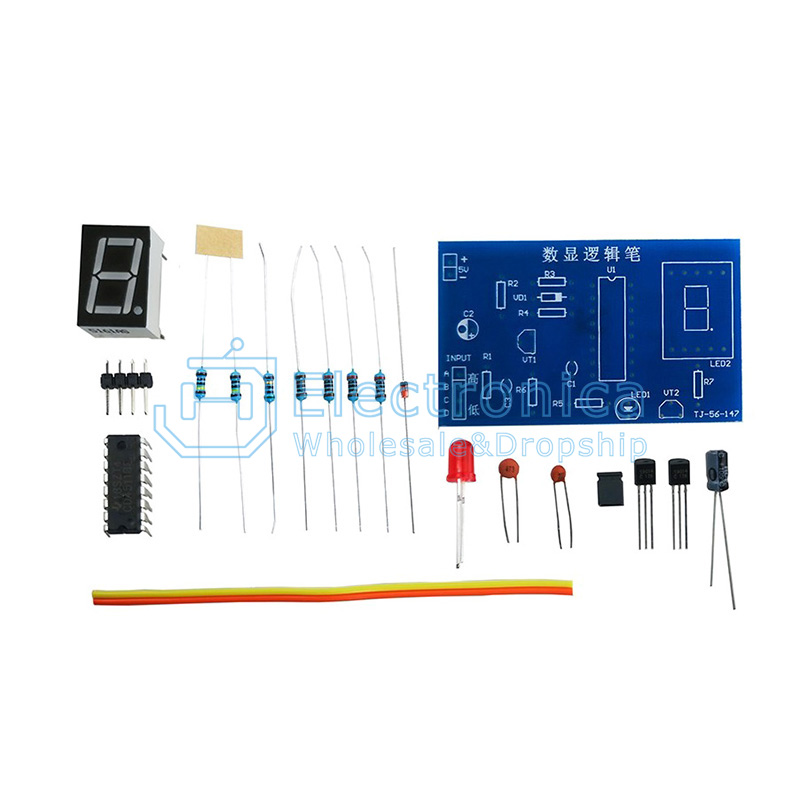

Kit(without battery box)

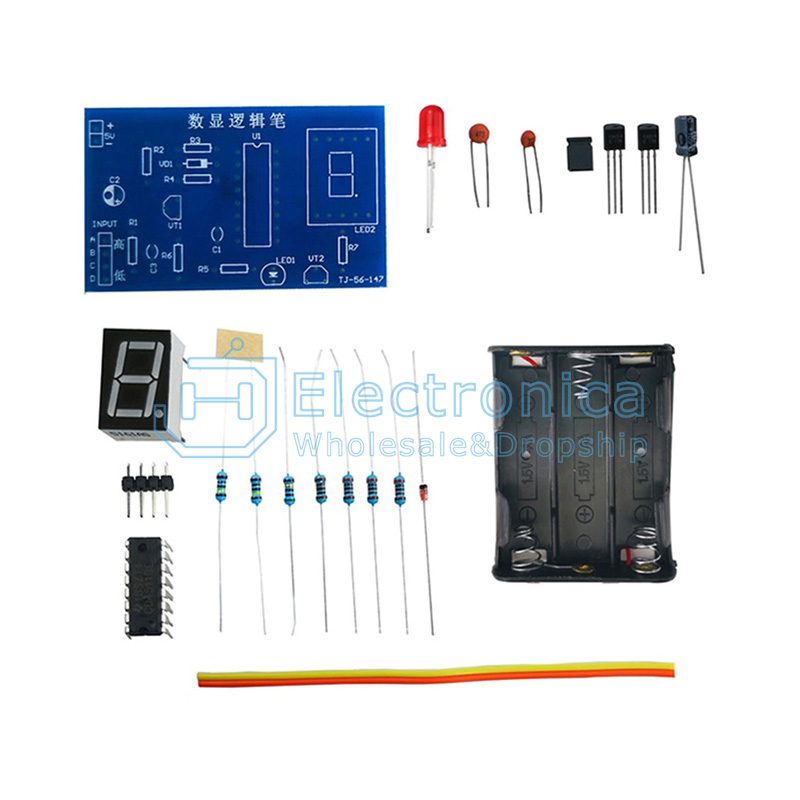

Kit+3×AA battery box

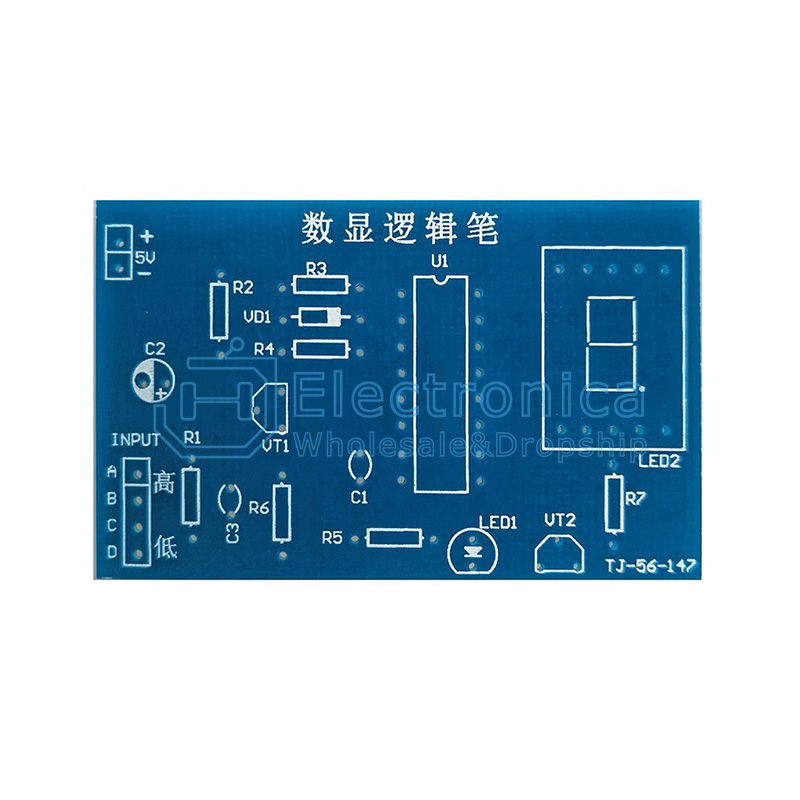

PCB board(without components)
