Description

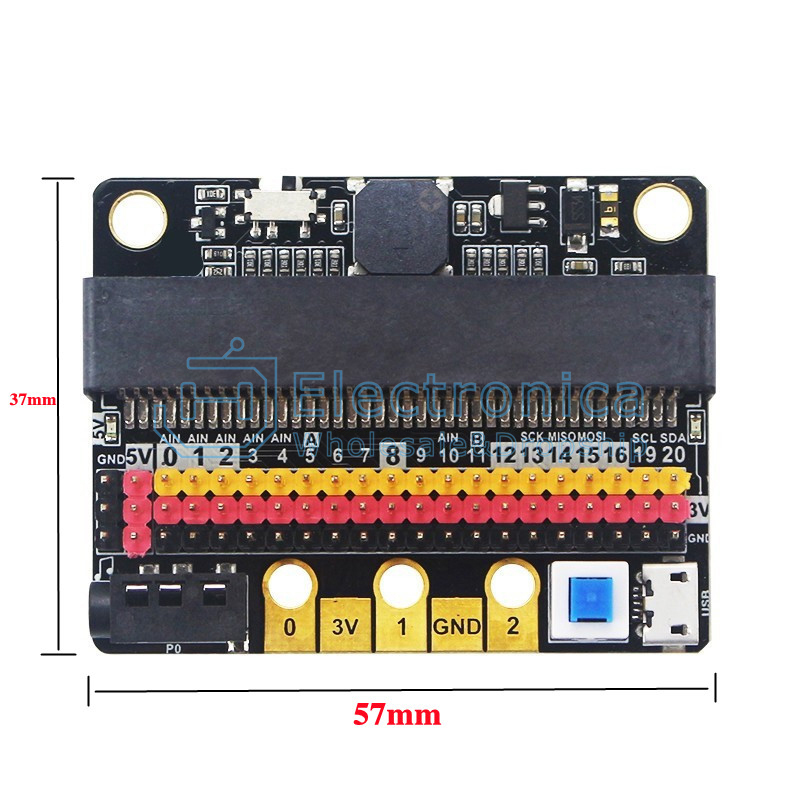

IOBIT V1.0:
Power Supply Mode:USB 5V 1A
Onboard Function
1.5V 1A self-recovery fuse
2.Buzzer (P0 interface)
3.3.5mm audio port(P0 interface)
4.Toggle the switch(used to switch the buzzer music output and audio output)
5.USB power switch
6.5 gold fingers, which are seamlessly connected with the 0, 1, 2, 3V and GND pins of microbit to protect the gold fingers of microbit.
6.Provide 5V and 3.3V power interfaces and support 3-5V sensor modules(onboard 5V and 3.3V power indicators)

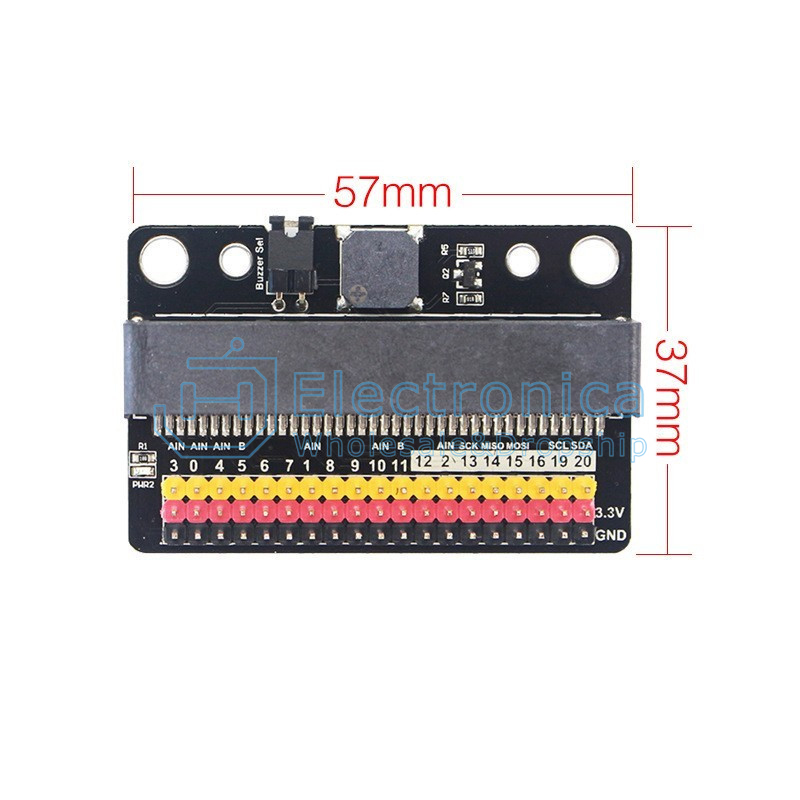

IOBIT V2.0
Size:57mm*37mm*12mm
Weight:16.4g
Power Supply Mode:from the usb port of Microbit or from the battery holder of Microbit
Working Voltage:3V
Output Current:40ma(Don't use IO port to drive high-current devices, it is easy to burn micro-bit, please use RobotbitV2.0 to drive high-current devices)
Serial Port Lead-out:the serial port can be mapped to 10 ports
12C Outlet:Pins 19 and 20 can only be used as 12C function pins, and can't be read and written as ordinary IO ports, because the bottom layer of microbit is written dead.
Spi Port Leads:4, 15(IO port can be read and written)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

IOBIT V1.0/IOBIT V2.0 Micro:bit Expansion Board

SKU : YXS2069 Brand :

Price : $ 2.27~2.93

100 +: $2.27~2.93500 +: $2.27~2.931000 +: $2.27~2.93

Style：

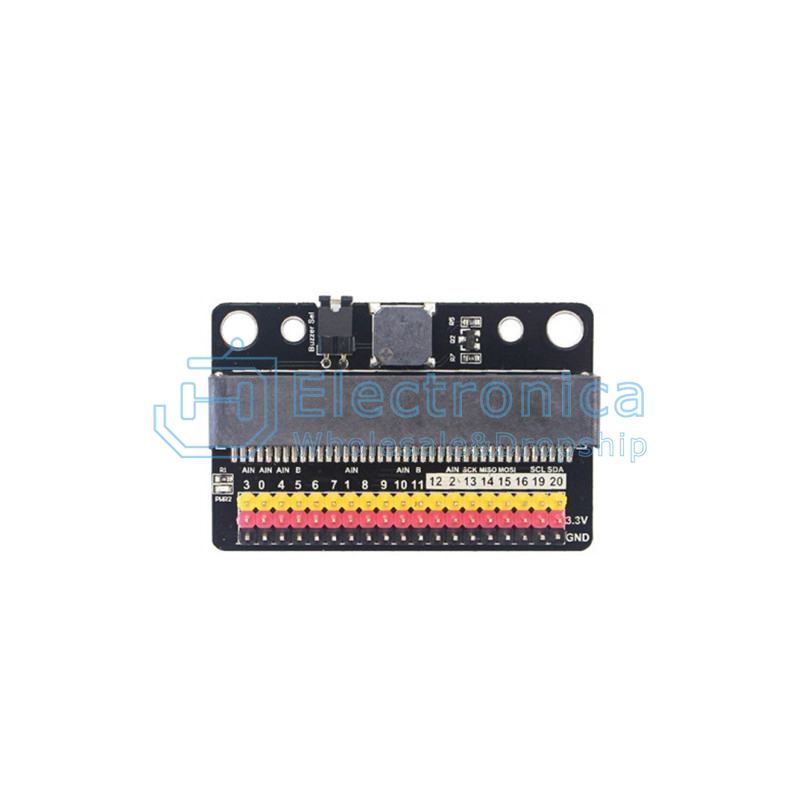

IOBIT V1.0
IOBIT V2.0
