Description

The Output Contact:10W/50W
Withstand Voltage:240VAC/200VDC
Switching Current:0.5A
Current:1A
Cable Specifications:White Silicone High Temperature Cable

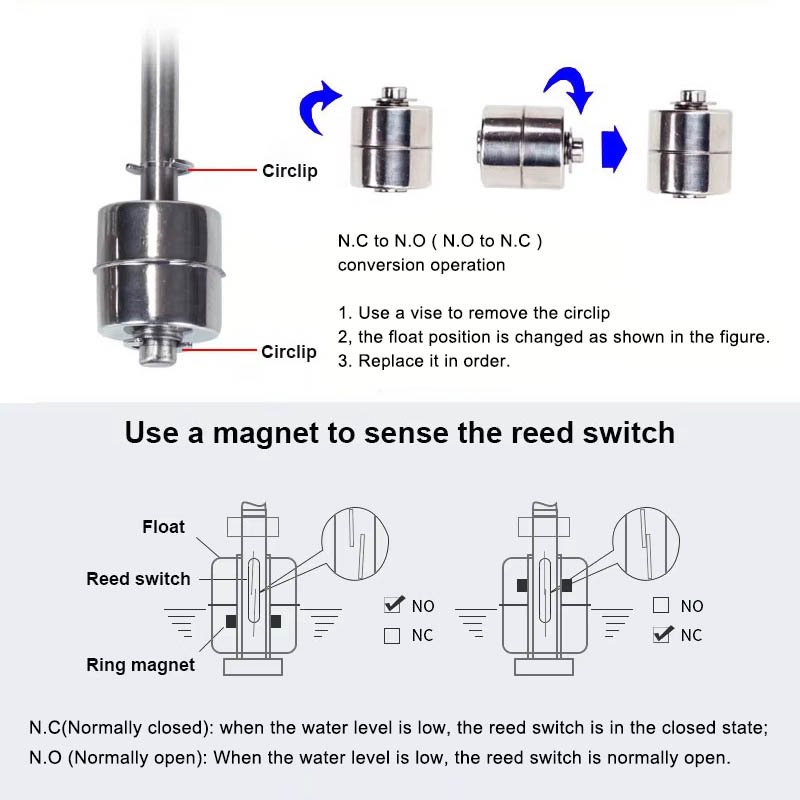

Switch Action:Can Be Reversed
Operating Pressure:10kg/cm
Operating Temperature:-10~120℃
Wetted Material:SUS304/SUS316
Applicable Specific Gravity:0.75

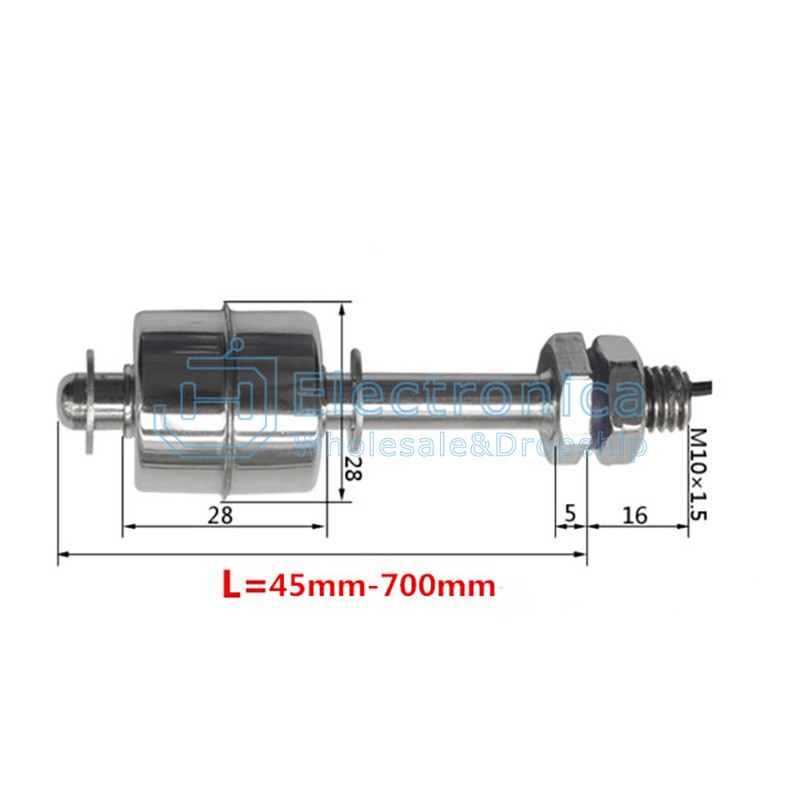

Open Hole Size:10mm
Installation Method:Vertical Installation
Insulation Resistance:>10Ω
Contact Impedance:<100m
Resistive Load:107 Times

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

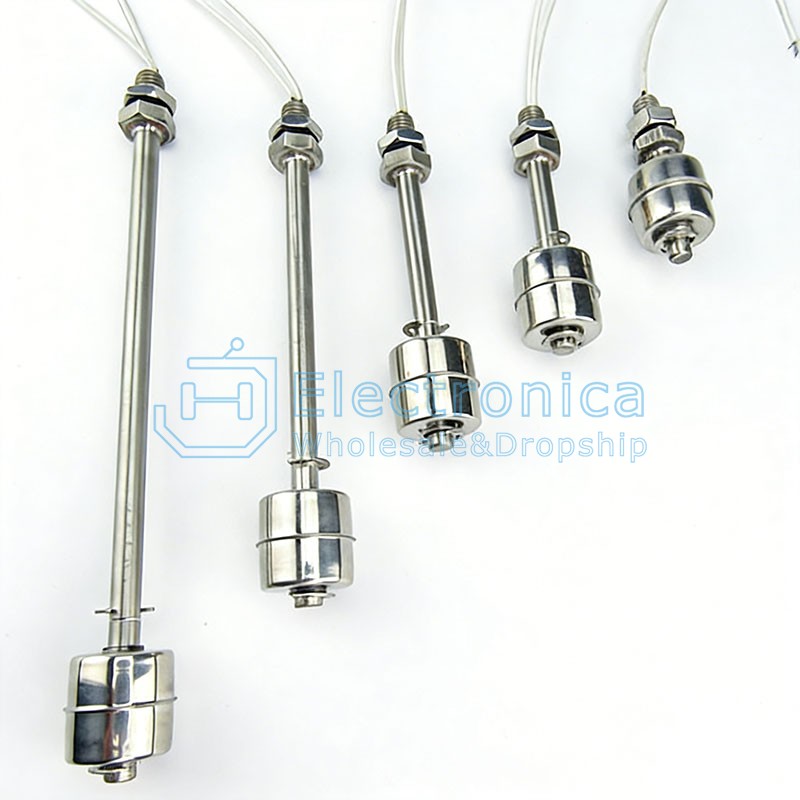

High Temperature Float Switch

SKU : YXS2283 Brand :

Price : $ 1.54~5.97

100 +: $1.54~5.97500 +: $1.54~5.971000 +: $1.54~5.97

Quantity :

- +

ADD TO CART
