Description

Size:30.5*16*23.5mm
Rated Coil Power:900mW
Electric Shock Parameters:
Contact Form:1H
Contact Resistance:100mΩ(1A 6VDC)
Max Switching Voltage:250VAC
Resistive Load Curren:25A
Motor Load Curren:80A
Maximum Switching Power:6250VA

Performance Parameters:
Insulation Resistance:1000mΩ(500V DC)
Vibration:10Hz~55Hz 1.5mm Double Amplitude
Humidity:85% RH,40℃
Weight:23g
Package:Dust Cover Type

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

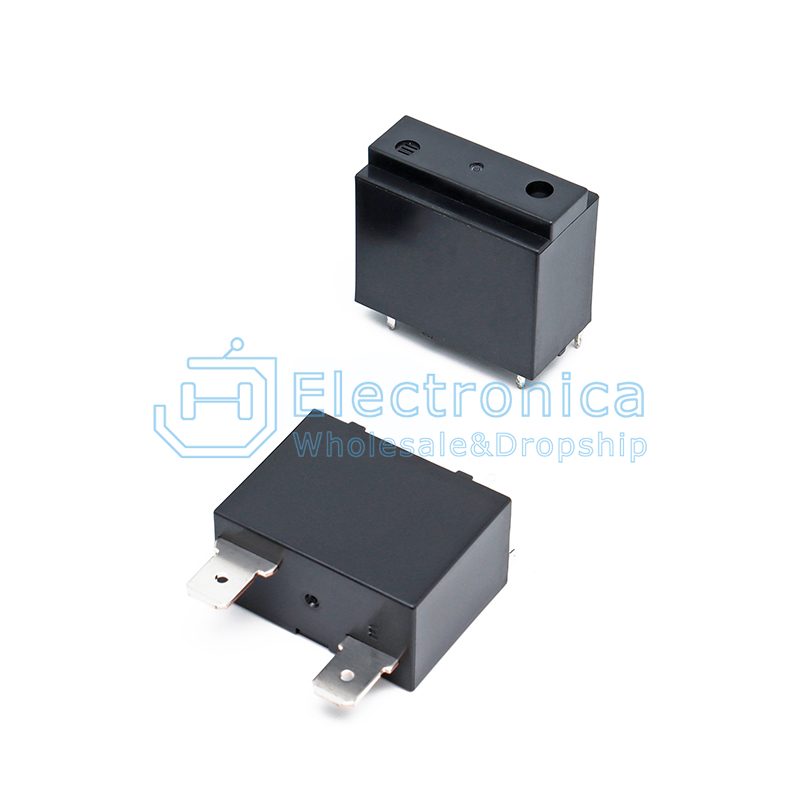

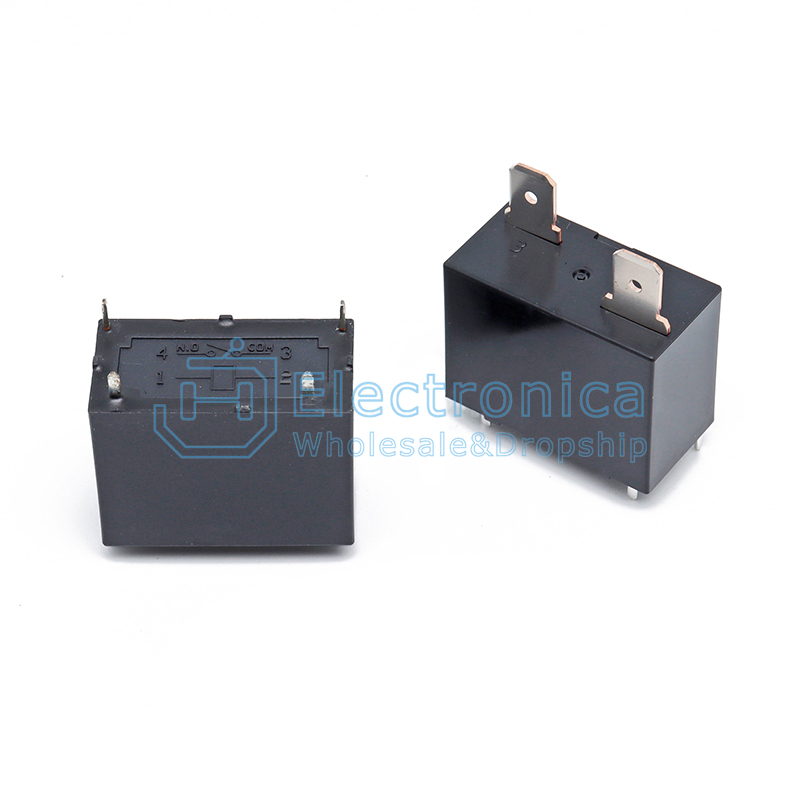

HF102F Relay

SKU : YXS1844 Brand :

Price : $ 0.68~1.45

100 +: $0.68~1.45500 +: $0.68~1.451000 +: $0.68~1.45

style：

Quantity :

- +

ADD TO CART
