Description

Sensing distance:15mm
Standard detection object:non-permeable objects above 2mm
Pointing foot:projection angle:3°~5°
Light source:infrared light
Power supply voltage:DC 6V~36V
Current consumption:1.5W(max)
Control output:DC 6V~36V
Service life:2 million times
Response time:20ms
Sensitivity adjustment:tail knob adjustment(clockwise:farther,counterclockwise:closer)
Use environment illumination:3000lx(incandescent lamp);11000lx (sunlight)
Insulation resistance:>20MΩ
Vibration:10Hz~55Hz
Transistor type:NPN
Action status:no
Connection method:lead-out type(line length 1.2m)
Shell material:ABS
Lens material:methacrylic resin
Knob material:POM
Cable material:PVC

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

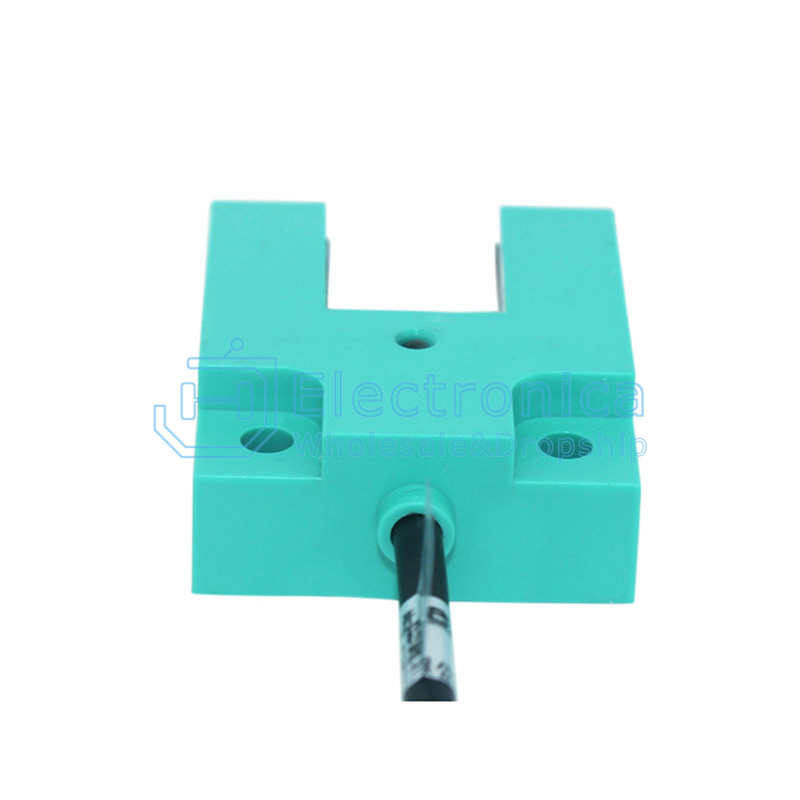

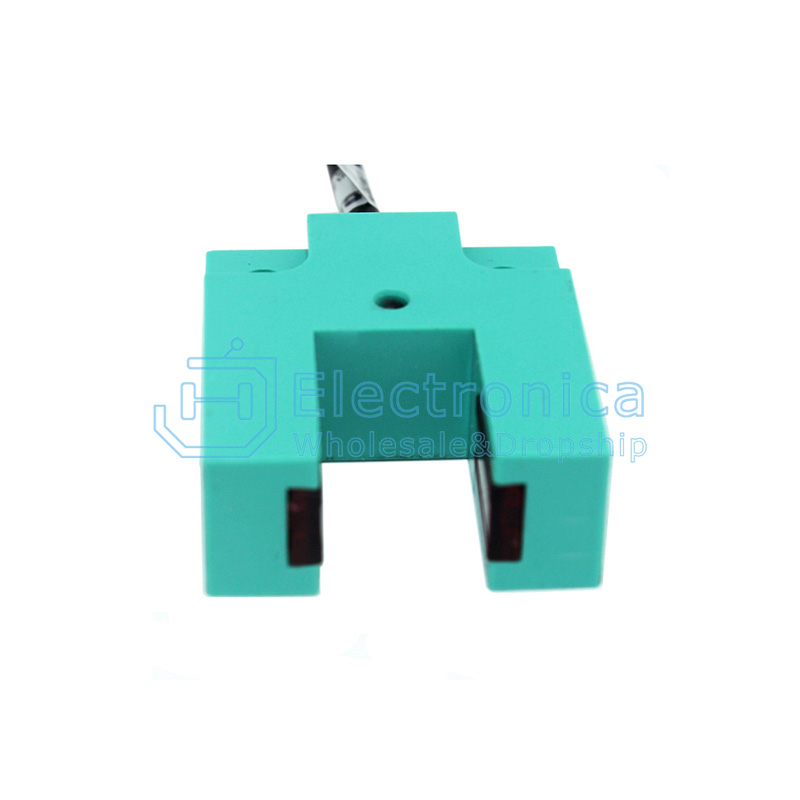

E3S-GS15C1 Infrared Photoelectric Sensor Slot Switch

SKU : YXS1567 Brand :

Price : $ 3.40~3.58

100 +: $3.40~3.58500 +: $3.40~3.581000 +: $3.40~3.58

Style：

Quantity :

- +

ADD TO CART
