Description
1.PCB is a single panel, size: 44mm*23mm*1.6mm
2. With 4 positioning holes, diameter 3.1mm
3. The backup battery is genuine celestial CR2032, voltage 3V, current 260mAh
4. Crystal oscillator 32.768KHz, matching capacitor is 6pF, size 2*6mm
5.DS1302 is a 8-pin in-line large-scale domestic chip.

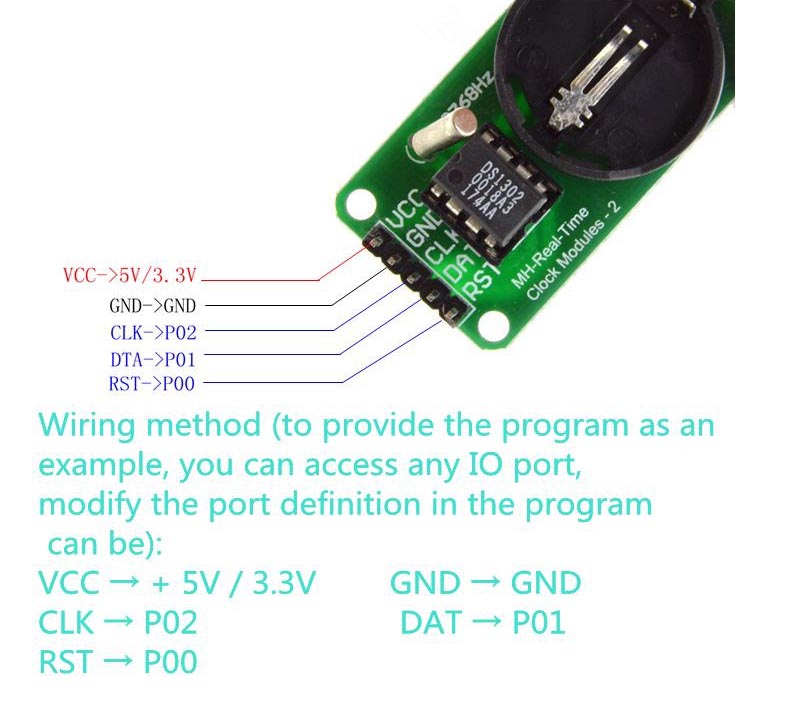

6. Module working voltage is compatible with 3.3V/5V, can be connected with 5V and 3.3V MCU
7. Working temperature: 0°---70°
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

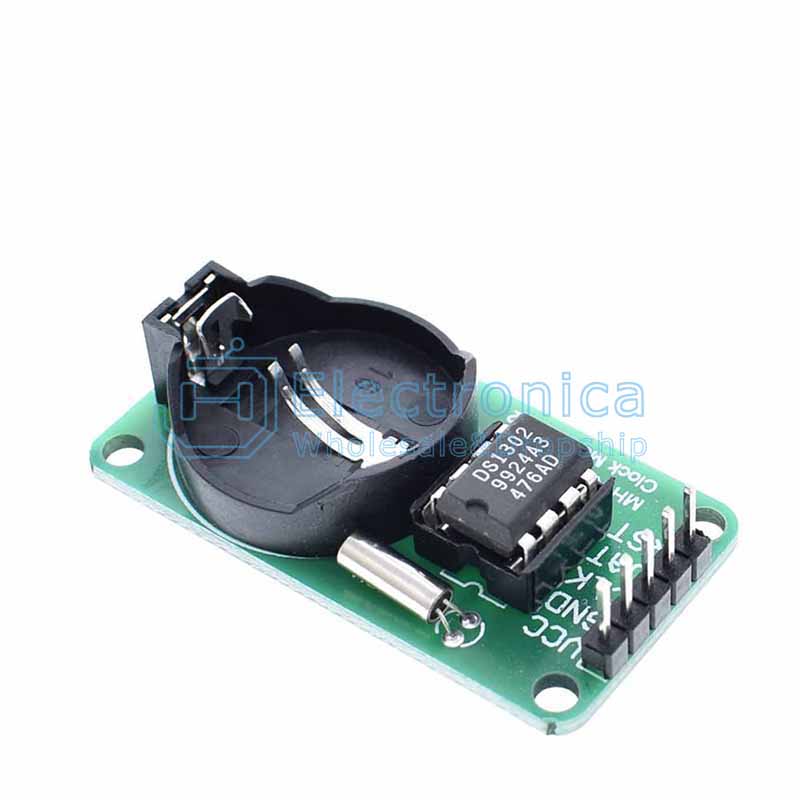

DS1302 Real-time Clock Module Without Battery CR2032
SKU : YXA348 Brand : JH Stock
