Description

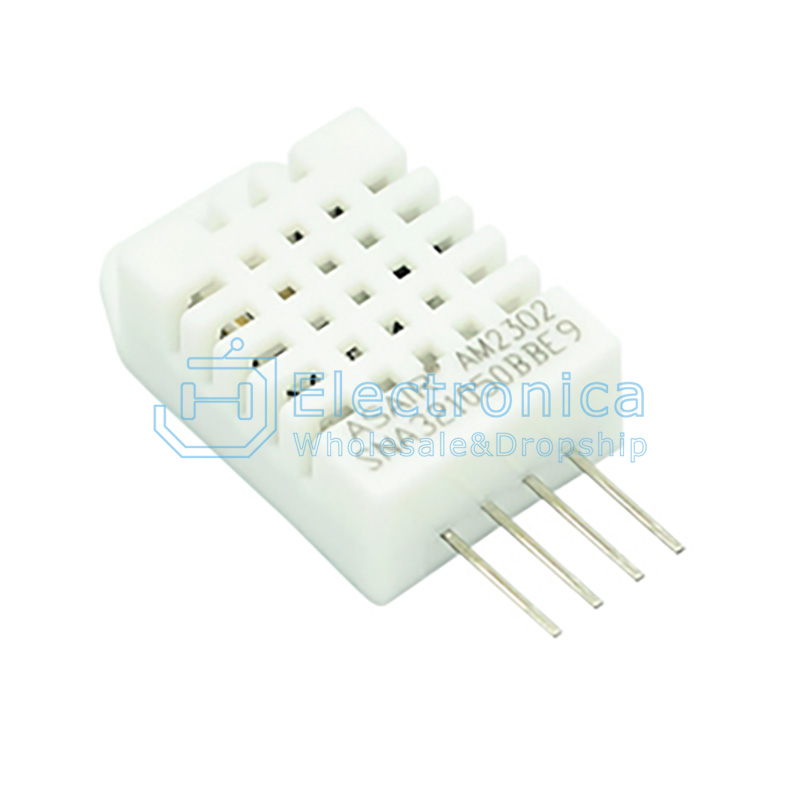

DHT22
1. Length: 28mm X width 12mm X height 10mm
2. Working voltage: DC 3.3-5.5V
Features
1. Humidity measurement range: 0---RH
2. Humidity measurement accuracy: ±2%RH
3. Temperature measurement range: -40---80℃
4. Temperature measurement accuracy: ±0.5℃
5. Working voltage: DC5V commonly used
6. Single bus digital signal output, serial data bidirectional port;

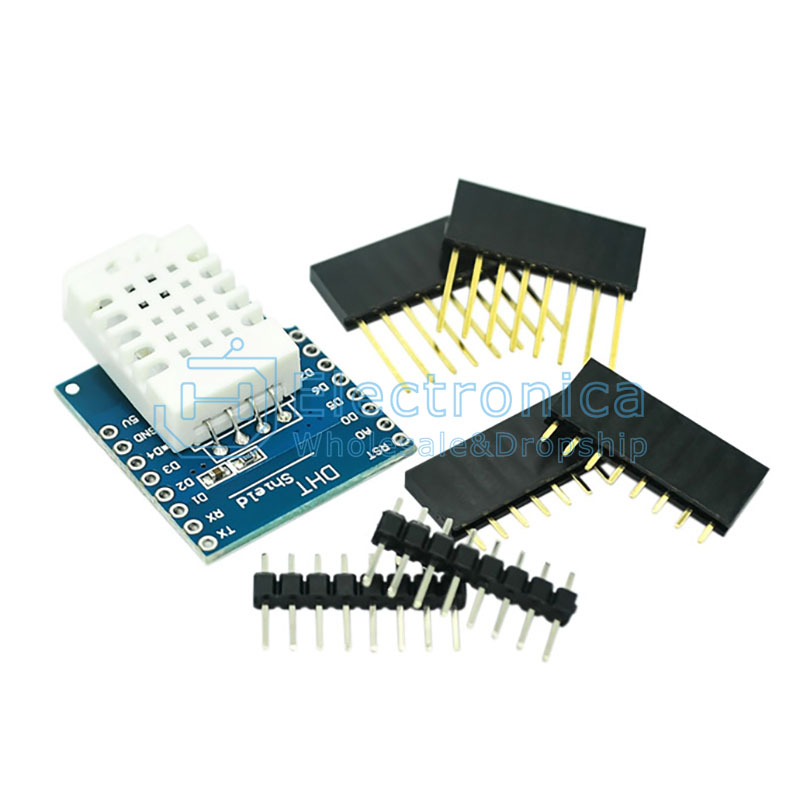

DHT Pro Shield for D1 mini
Technical specifications:
Temperature: 40～80°(0.5°)
Humidity: relative humidity (RH 0-99.9±2%

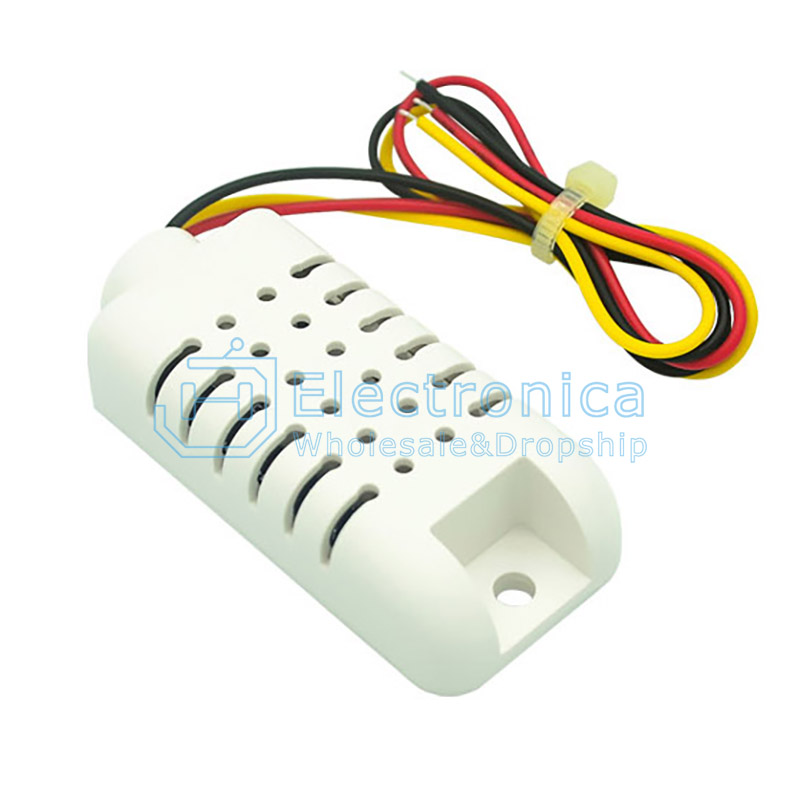

AAM2302B (DHT22)
AM2302B8 temperature and humidity module
*Supply voltage (Vin): DC3.3-5.5V*
Output signal: single bus digital signal* display resolution: 0.1C or 0.1%RH*
Temperature detection range: -40-80C *
Humidity detection range: 0-99. 9%RH* Humidity detection accuracy: +2%RH *
Temperature detection accuracy: ±0.5C* Collection cycle: 1/e(63%)<5s *
Storage temperature range: o-8oC
Storage humidity range: 95%RH or less (non-condensing) *
Product weight: 15g

*Product shell material: PC plastic (high-strength mechanical properties, fatigue resistance, low creep, heat aging resistance, solvent resistance, excellent insulation properties)

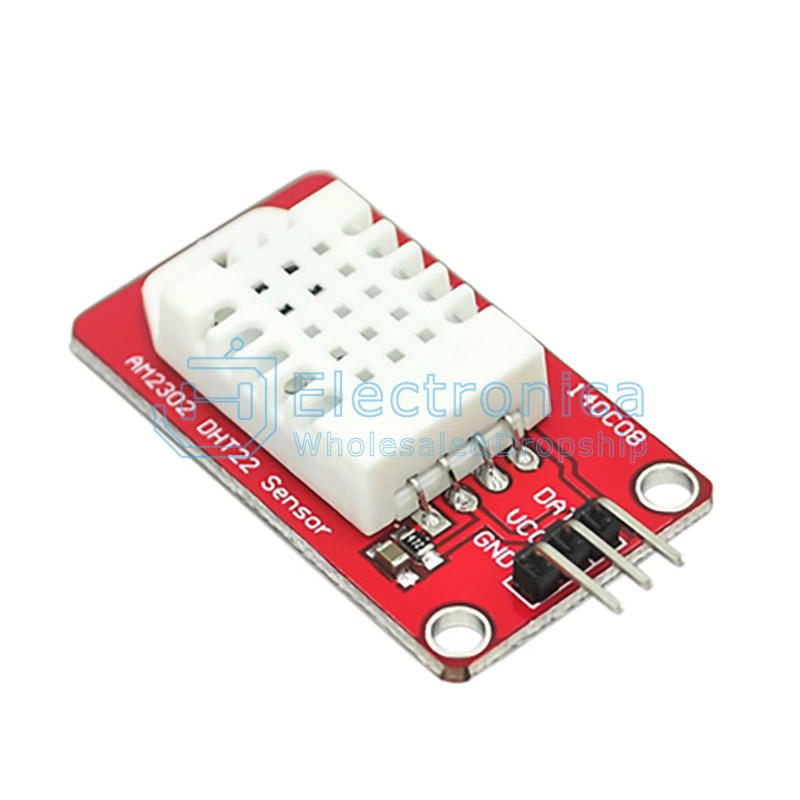

DHT22 RED
Size: 40*23mm
Weight: 4g
Voltage: 5V
Port: digital bidirectional single bus
Temperature range: -40-80℃ ±0.5℃
Humidity range: 20-90%RH ±2%RH

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :

1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag

2.Some fragile products such as the display screen can be packed in bubble bag .

3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

DHT22 Temperature and Humidity Sensor

SKU : YXB070 Brand : JH Stock

Price : $ 0.62~1.71

100 +: $0.62~1.71500 +: $0.62~1.711000 +: $0.62~1.71

Style：

DHT22

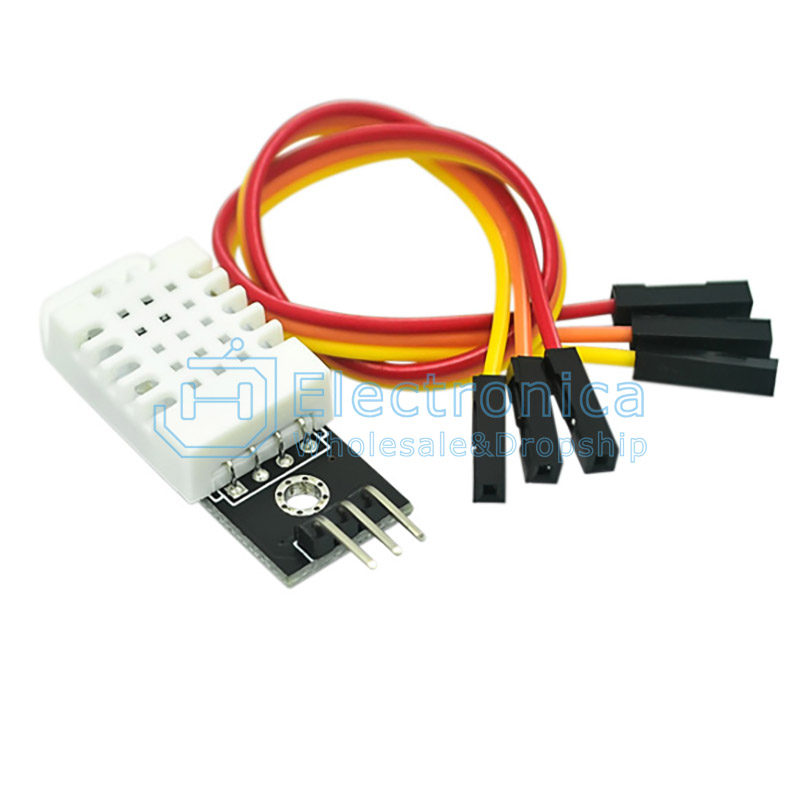

DHT22 Module(with cable)
D1 Mini DHT22
AAM2302B(DHT22)
DHT22 Module(Red)

Quantity :

- +

ADD TO CART
