Description

1 can detect the humidity and temperature of the surroundings

2 use DHT11 sensor
3 humidity measuring range: 20% 95% (0 degrees to 50 degrees range), humidity measurement error: + - 5%
4 temperature measurement range: 0-50 degrees temperature measurement error: + - 2 degrees
4 working voltage of 3.3 V to 5 V
5 output form digital output
6 sets of fixed bolt hole, convenient installation
7 small board PCB size: 3.2 cm * 1.4 cm
8 power indicator light (red)
9 every weight of about 8 g

2 module interface specification (3 wire system)
1 VCC external 3.3 V to 5 V
2 GND external GND
3 DO small plate switch digital output interface by microcontroller IO port

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :

1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag

2.Some fragile products such as the display screen can be packed in bubble bag .

3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

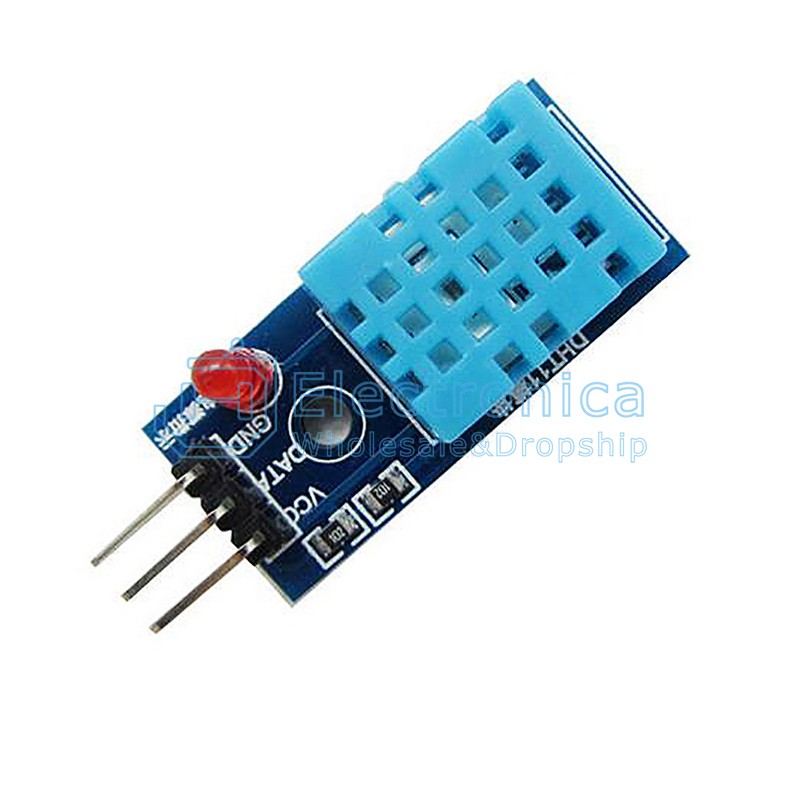

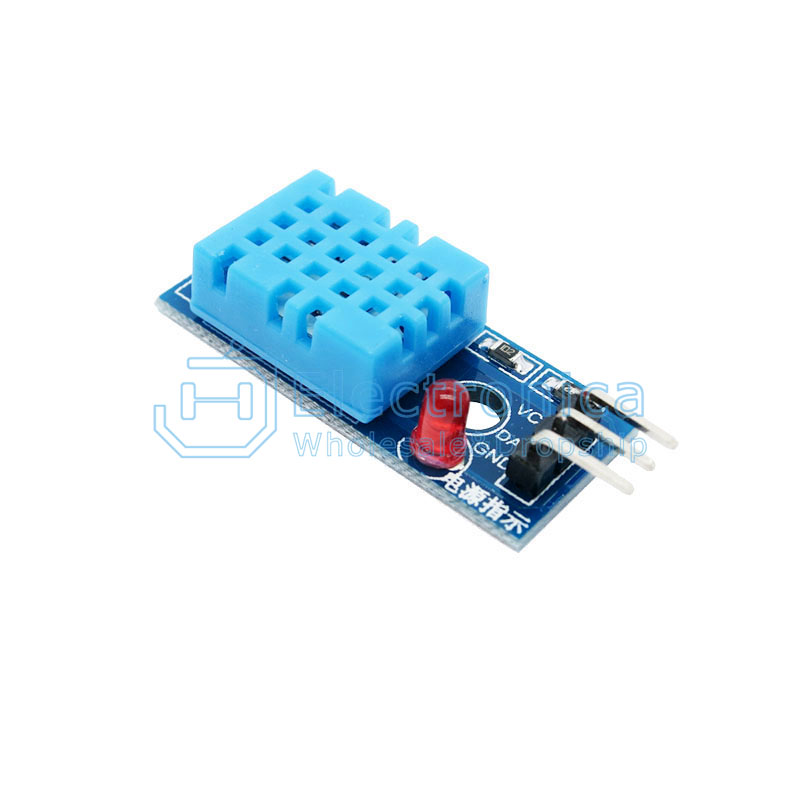

DHT11 Temperature and Humidity Sensor

SKU : YXB049 Brand : JH Stock

Price : $ 0.39

100 +: $0.39500 +: $0.391000 +: $0.39
