Description

Working voltage:3.3V

Input voltage:3.3V~5V
Support low power consumption:10uA
Support maximum discharge current:600mA@3.3V LDO
Support maximum charging current:500mA
Processor:Tensilica LX6 dual-core processor(one core for high-speed connection;one core for independent application development)
Main frequency:240MHz
SRAM:520KB
Flash:4MB
Working current:80mA (average)
Frequency range:2.4~2.5GHz
Working temperature:-40℃~+85℃

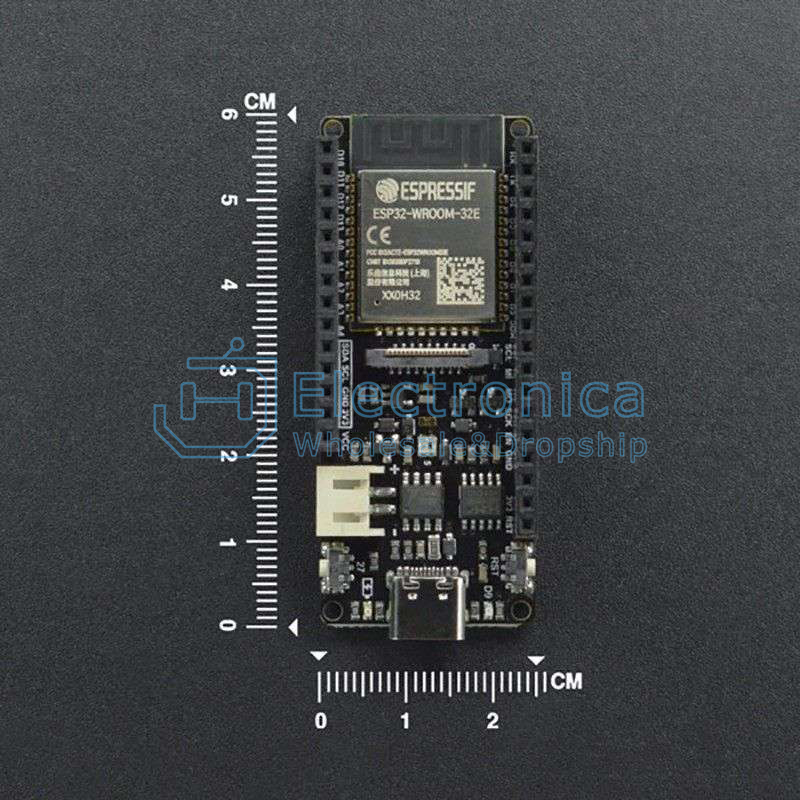

Module size:29*58mm
Mounting hole size:inner diameter 3.1mm,outer diameter 6mm
LED_BUILTIN:D9

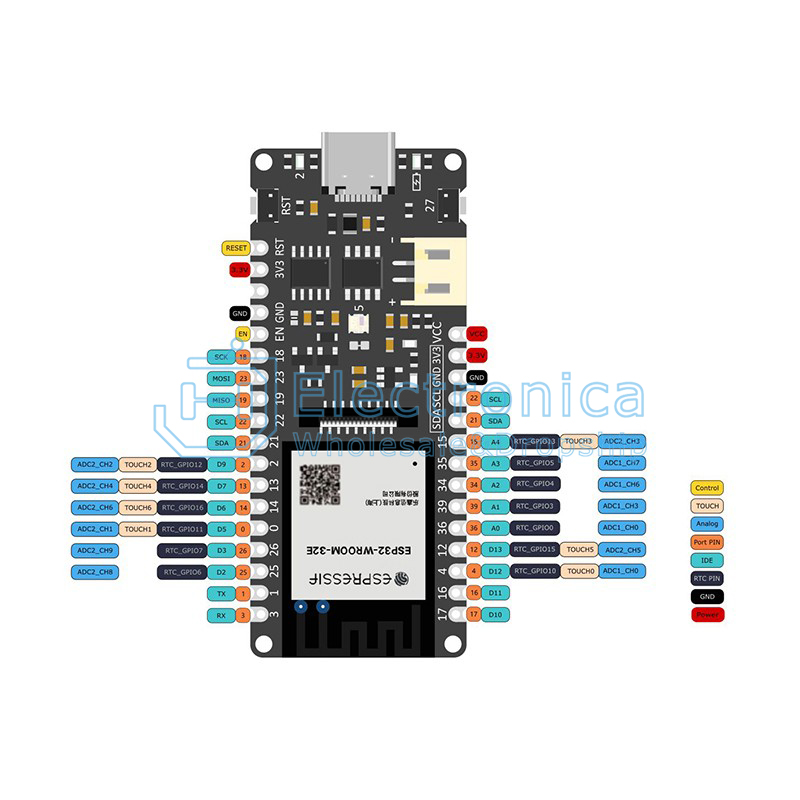

Interface mode:Compatible with FireBeetle 2 series

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

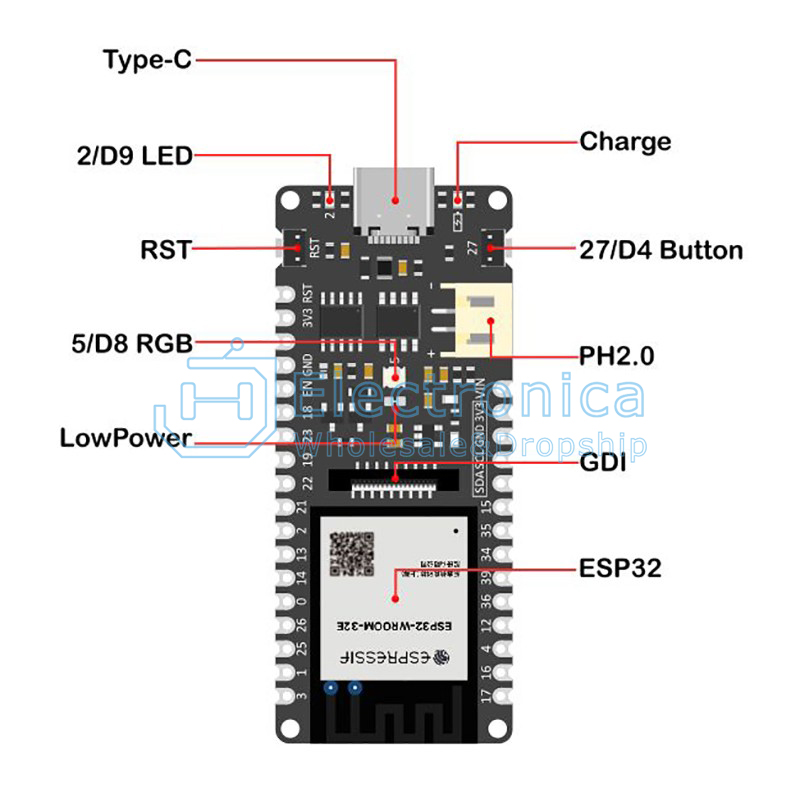

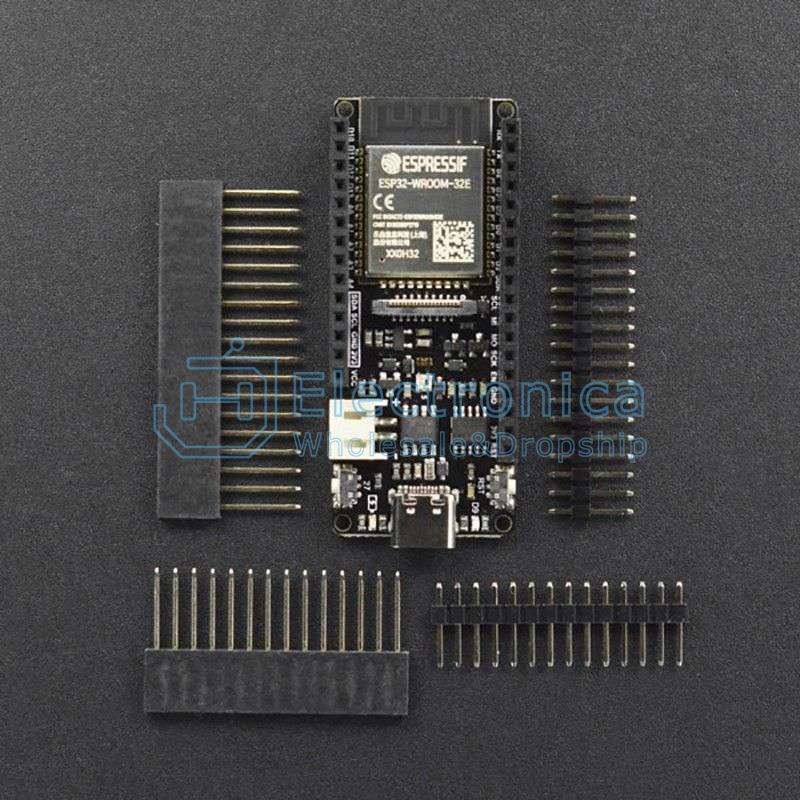

DFRobot FireBeetle 2 ESP32-E Development Board

SKU : DF026 Brand : DFRobot

Price : $ 11.65

100 +: $11.65500 +: $11.651000 +: $11.65

Quantity :

- +

ADD TO CART
