Description

1). Model: D2-1

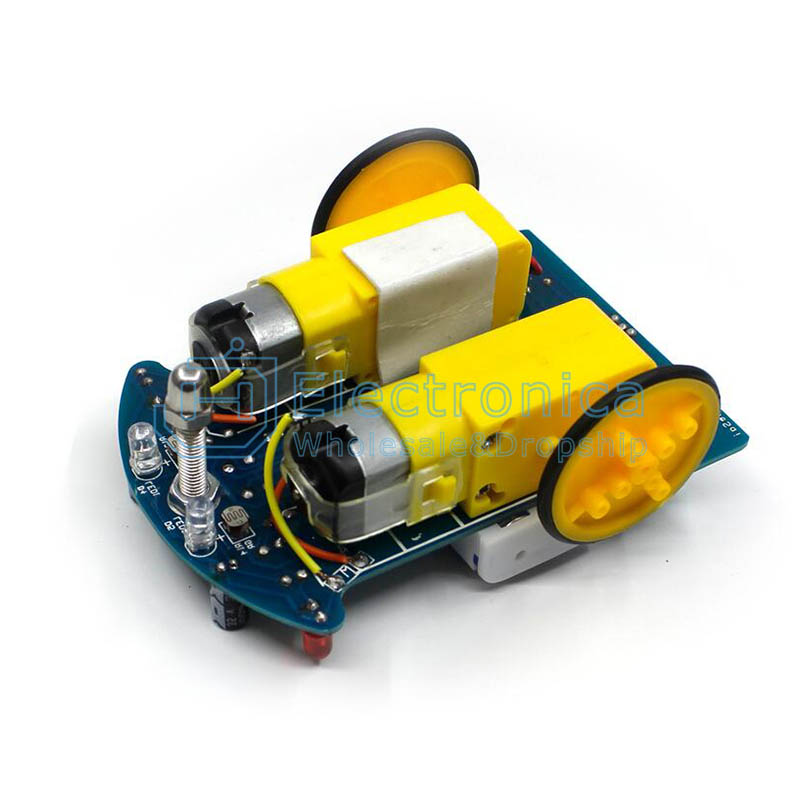

2). Name: D2-1 Intelligent Tracking Car DIY Kit

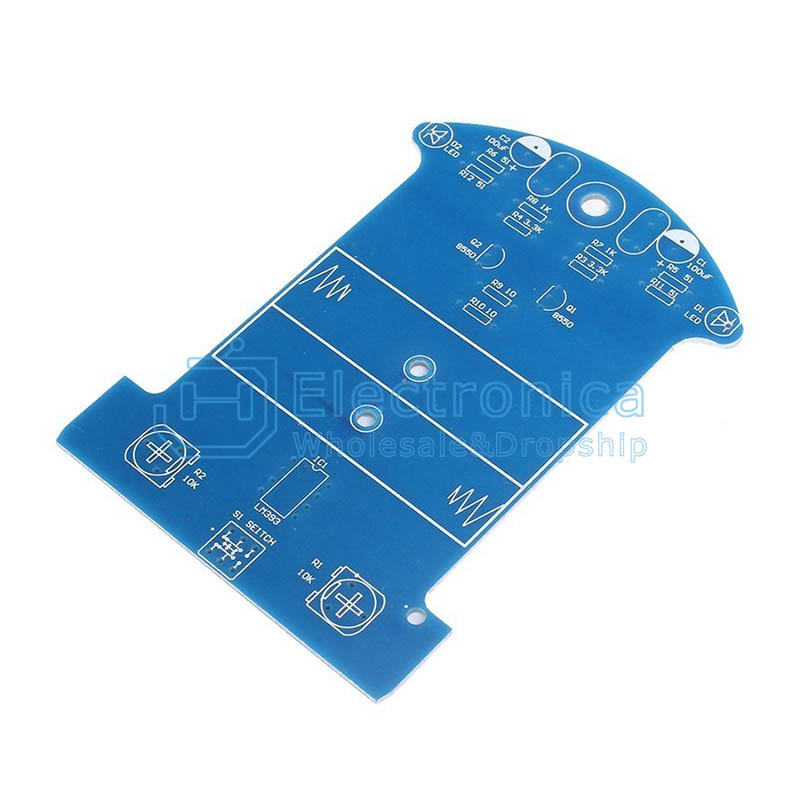

3). PCB Size:105*72*1.6mm
4). Installation dimension:105*85*46mm
5). Work Voltage:3V

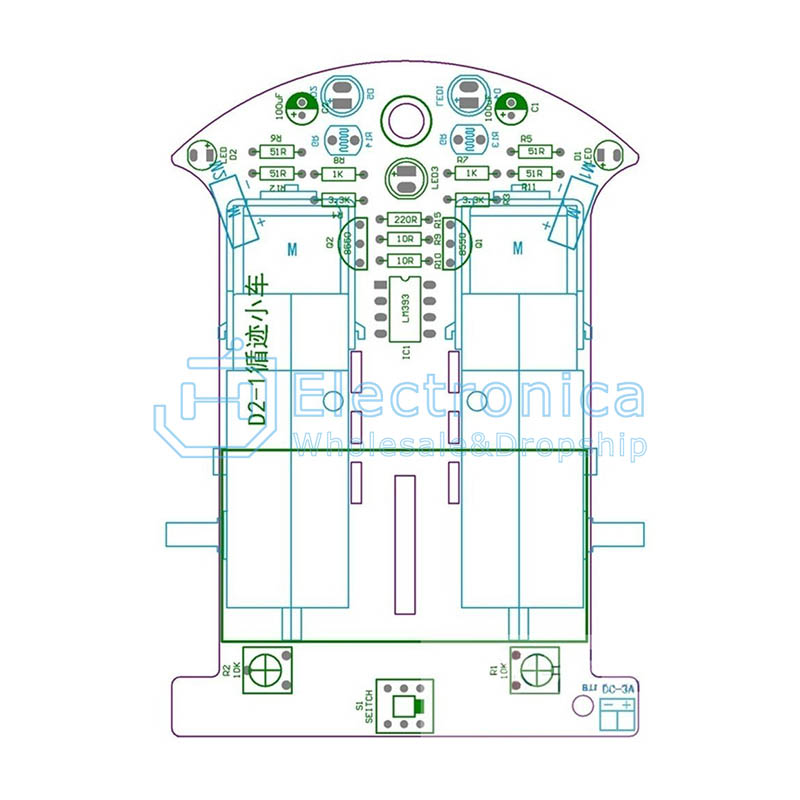

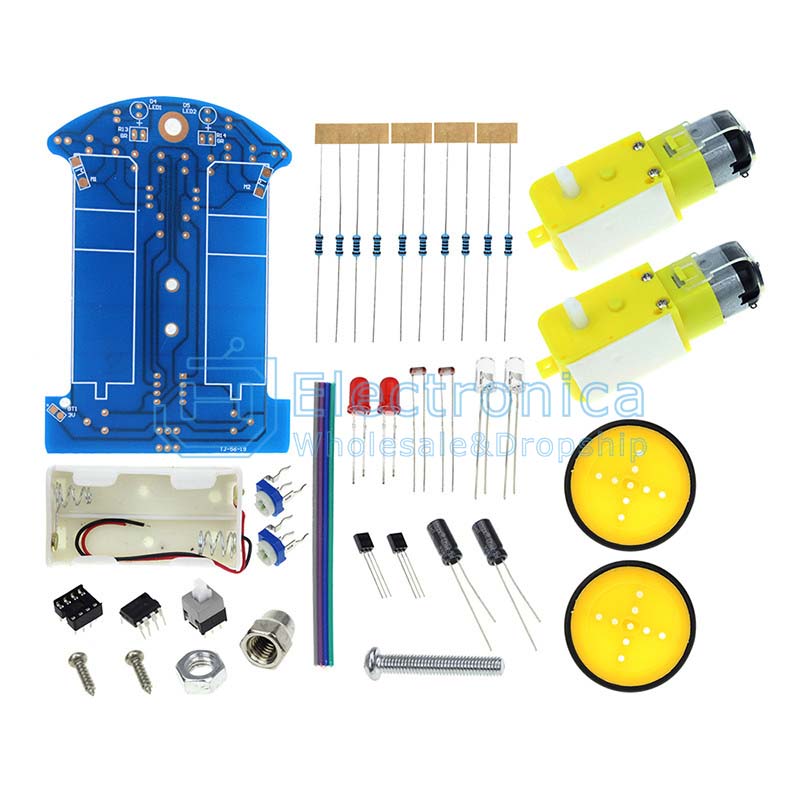

2. Component listing.
NO. Component Name PCB Marker Parameter Quantity
1 LM393 IC1 DIP-8 1
2 IC Socket IC1 DIP-8 1
3 Electrolytic Capacitor C1, C2 100uF 2
4 Potentiometer R1, R2 103 10K 2
5 Metal Film Resistance R5, R6, R11, R12 51ohm 4
6 Metal Film Resistance R7, R8 1K 2
7 Metal Film Resistance R9, R10 10ohm 2
8 Metal Film Resistance R3, R4 3.3K 2
9 Photoresistor R13, R14 CDS5 2
10 Red LED D1, D2 5mm 2
11 White LED D4, D5 5mm 2
12 S8550 Q1, Q1 TO-92 2
13 Self-Locking switch S1 6*6mm 1
14 DC Motor M1,M2 2
15 Wheel 40mm 2
16 Tires 40mm 2
17 Gaster Screw M5*20mm 1
18 Gaster Nut M5 1
19 Gaster Screw Cap M5 1
20 Cable 6mm 4
21 Battery Case AA*2 1

22 PCB D2-1 105*72*1.6mm 1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

D2-1 Intelligent Tracking Car Kit

SKU : YXC037 Brand : JH Stock

Price : $ 0.36~1.26

100 +: $0.36~1.26500 +: $0.36~1.261000 +: $0.36~1.26
