Description

Working voltage:3.3V-5V(5V recommended)
Operating current:<25mA
Serial port baud rate:TTL level(3.3V),2400~921600 adjustable
Angular accuracy:X,Y axis:static 0.05°,dynamic 0.1°,Z axis:0.5°
Gyroscope range:±250,±500,±1000,±2000°/s can be set
Acceleration range:±2,±4,±8,±16g can be set
Output data:acceleration,angular velocity,attitude angle,magnetic field,port status,barometric pressure,altitude
Data output rate:1~250Hz
4 Expansion Ports:analog output(0~3.3V),digital input,digital output,PWM output(D1, D3)
Size:15.57*16.2*2mm

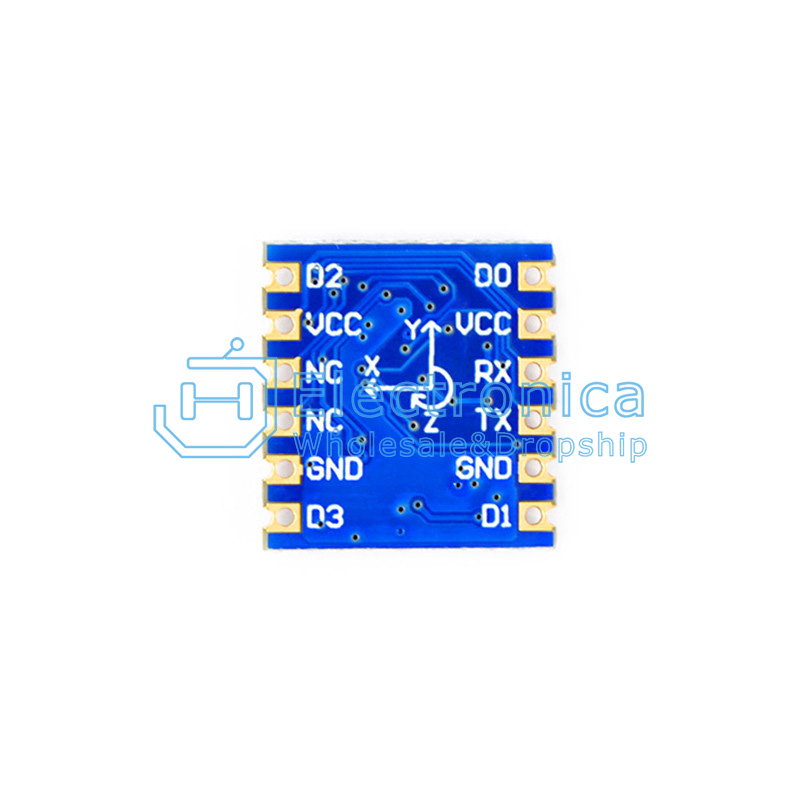

Pad spacing:2.54mm up and down,15.57mm left and right

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

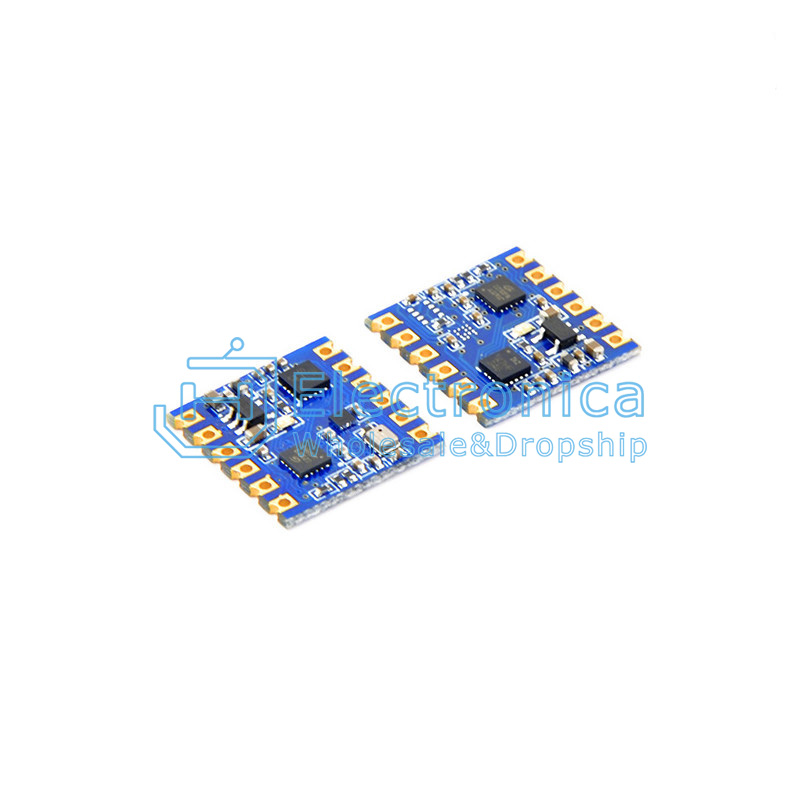

ATK-IMU901 Angle Sensor

SKU : YXS944 Brand :

Price : $ 9.90~13.31

100 +: $9.90~13.31500 +: $9.90~13.311000 +: $9.90~13.31

Style：

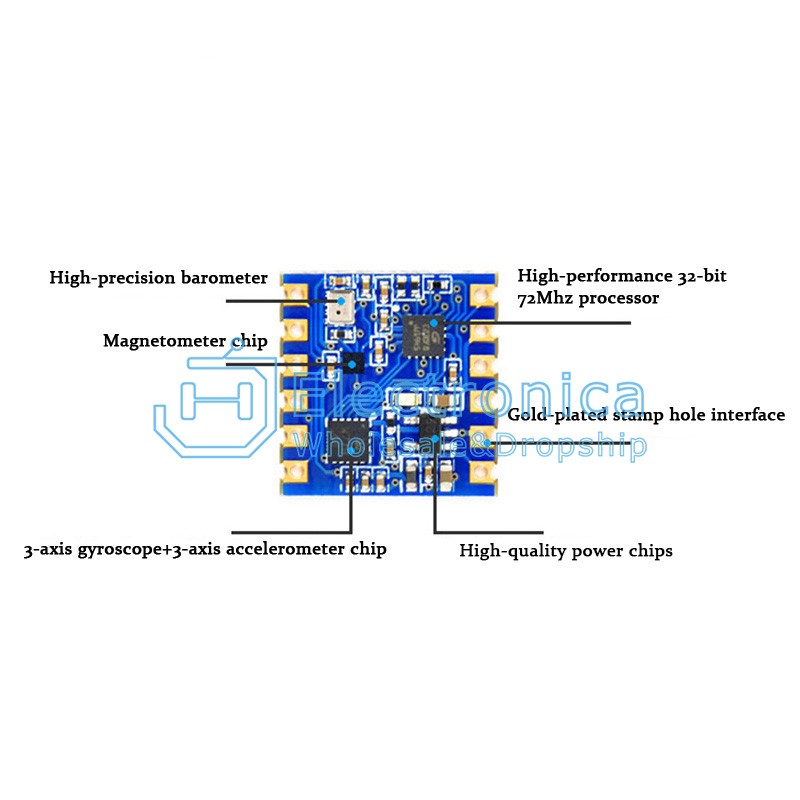

ATK-IMU901 ten-axis angle sensor

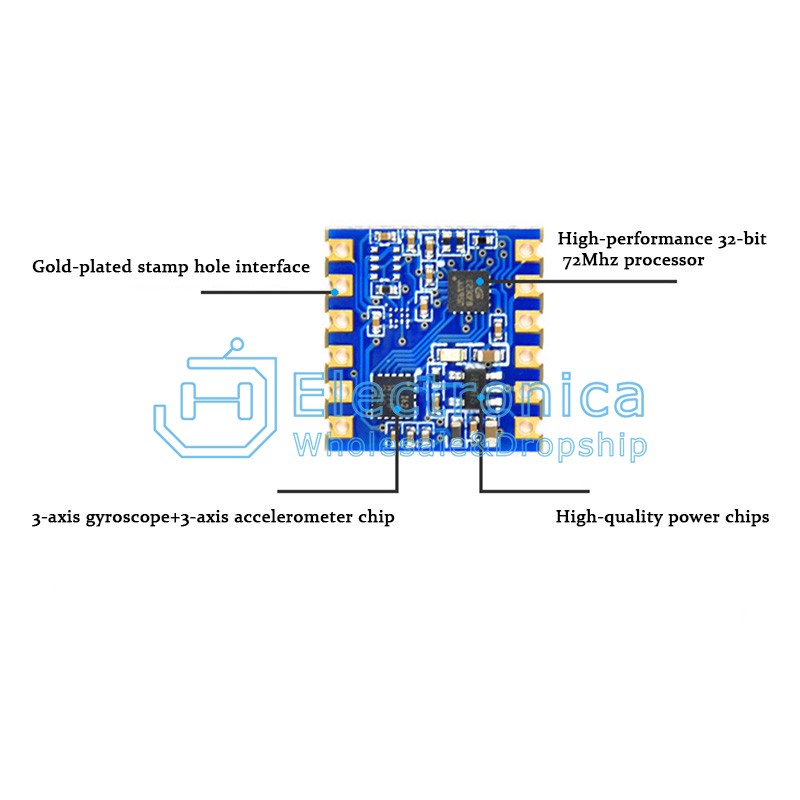

ATK-IMU601 six-axis angle sensor
