Description

1. Operating Frequency:0.1-440 MHz
2. Detection Slope:+24mV/dB,
3. Detection Intercept:-108dBV
4. Dynamic Range:-77dBm to+18dBm (95dB)
5. Linear Error:±0.4dB
6. Response Time:15ns
7. Output Voltage:0.35-2.5V
8. Working Current:12mA
9. Working Voltage:7-15V(Equipped with LM78L05 Voltage Regulator Chip)
Product Application:
AD8310 is a high-speed voltage output logarithmic amplifier with a detection frequency range of DC to 440MHz. It has an extremely fast response time (typically 15 ns) and can be used as an ASK demodulator above 10 MHz. It is also the best choice for high-precision intermediate frequency signal measurement chips. The detector outputs voltage in dB equivalent form to the input signal, and its applications include RSSI, transmission power control, and pulse detection.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

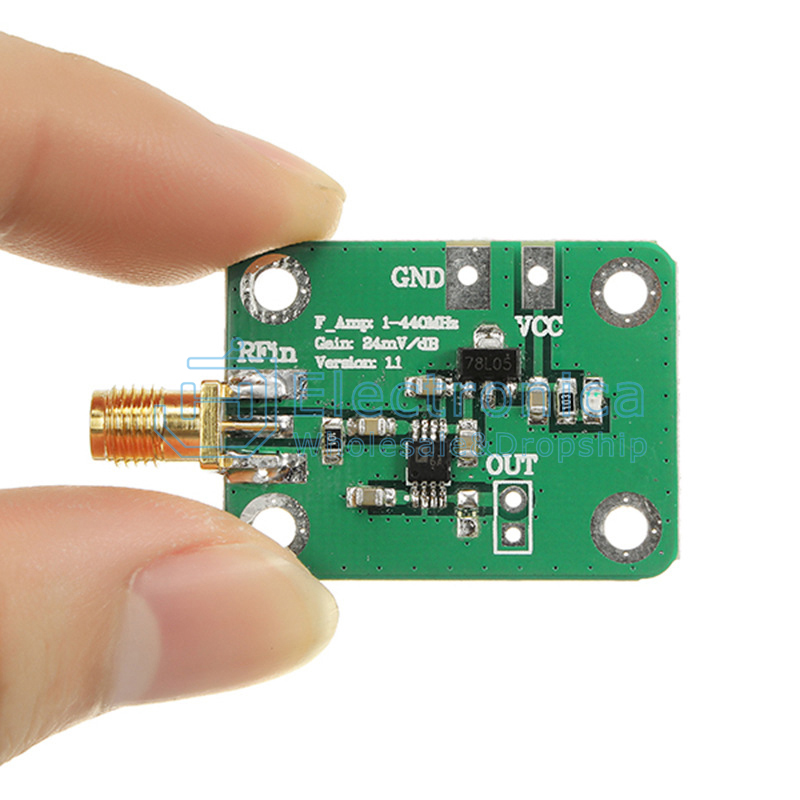

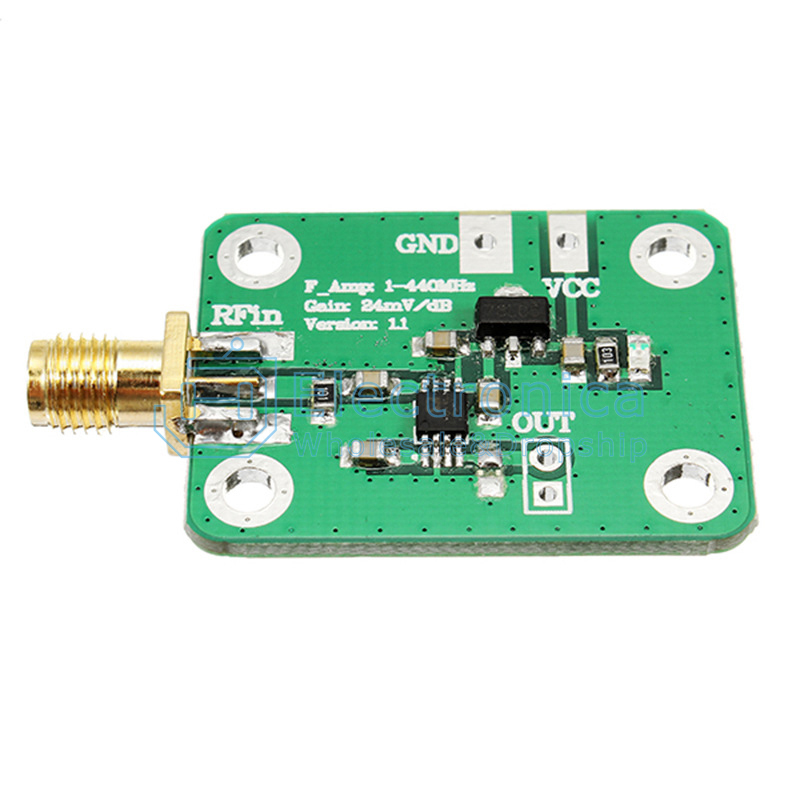

AD8310 High-speed Detector

SKU : YXS2063 Brand :

Price : $ 5.12

100 +: $5.12500 +: $5.121000 +: $5.12

Quantity :

- +

ADD TO CART
