In 2022, many customers ask us to purchase soil sensors for them from China local market
Now we have found some stable suppliers with high-quality and one-year warranty.

Let's take a look at these products

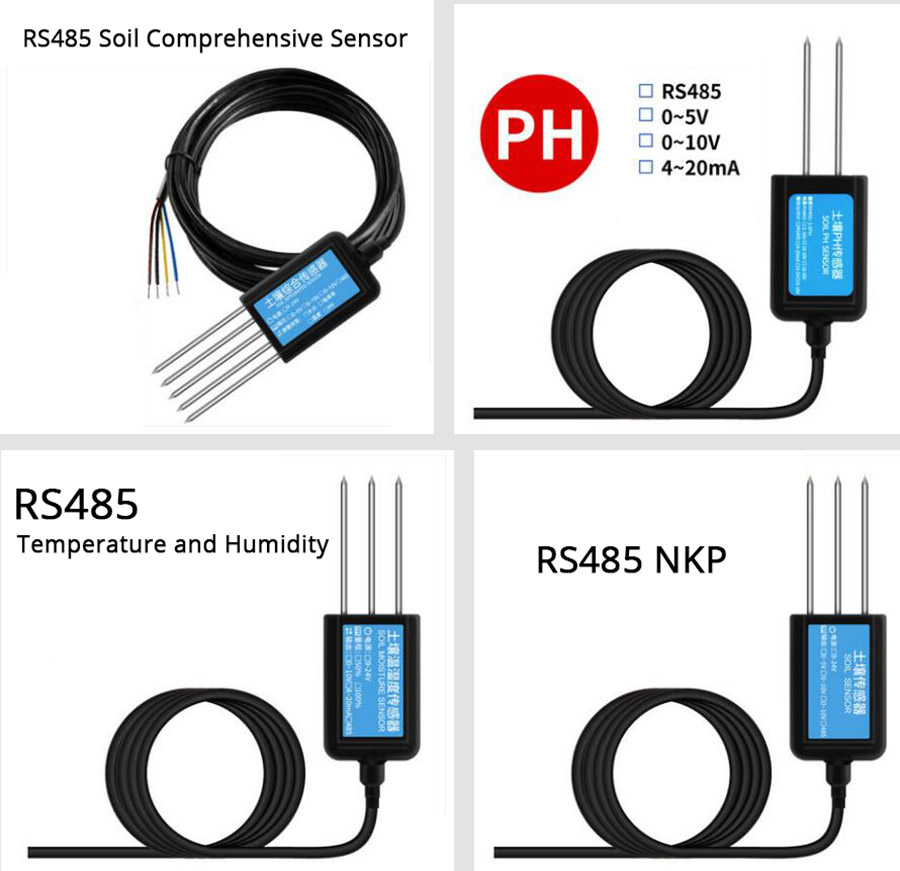

For soil sensors, There are many different type of one product
You need to confirm the type you need

Product Description:
Operating temperature:-40°C ~ +60°C
Core chip temperature resistance:85°C
Protection grade:IP68
Probe material:Special anti-corrosion electrode
Sealing material:Black flame retardant epoxy resin
Default cable length:2m, cable length can be customized as required
Overall dimension:45*15*723mm

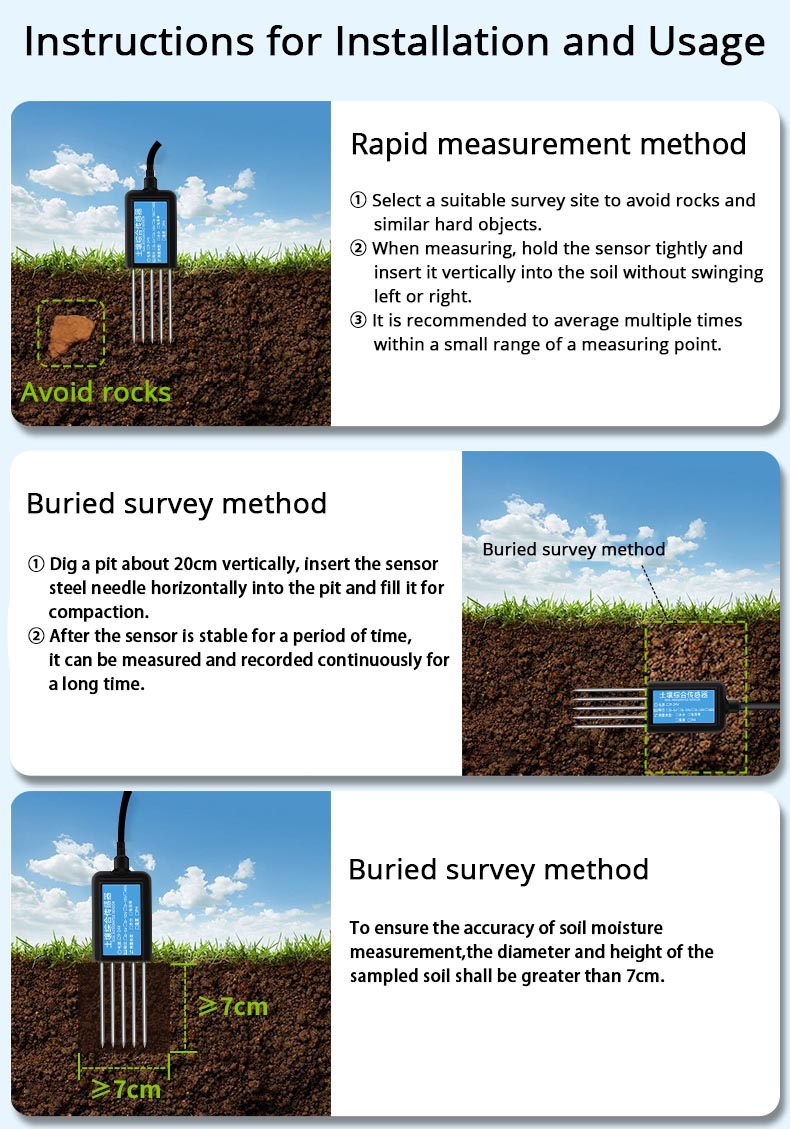

Installation and operation instructions

Matters needing attention:
1.When measuring, the steel needle must be completely inserted into the soil.
2.Avoid high temperature due to direct sunlight on the sensor. Pay attention to lightning protection for field use.
3.Do not bend the steel needle violently, do not pull the sensor lead wire forcefully, and do not beat or impact the sensor violently.
4.The protection grade of the sensor is IP68, and the whole sensor can be immersed in water.
5.Due to the existence of RF electromagnetic radiation in the air, it is not suitable to be energized in the air for a long time.
6.Calibration shall be carried out before each measurement. It is recommended to calibrate once every month for long-term use. The calibration frequency shall be adjusted according to different application conditions (soil quality, moisture content, salt content, pH, etc. of the application).
