We have a customer from Canada who requires large quantities of DS3230 servo motors on a long-term basis.
These are used to build robotic arms and grippers for grasping and handling tasks.
They are also employed to control the wings of remote-controlled aircraft.

Description:

DS3230 RC servos are designed for remote operation of model vehicles such as cars, airplanes and robots.It provides the functionality of a standard-size,high-torque HV,waterproof,sensitive,and responsive lightweight servo.It is tailor-made for the hobby of RC to provide different experiences and delights.

Electrical specification:

Operating voltage range:5-6.8V
Operating speed (15.0V):0.2sec/60 degrees
Operating speed (6.8V):0.17sec/60 degrees
Stopping torque (15.0V):29.5kg/cm
Stopping torque (6.8V):34.5kg/cm
Control specification:

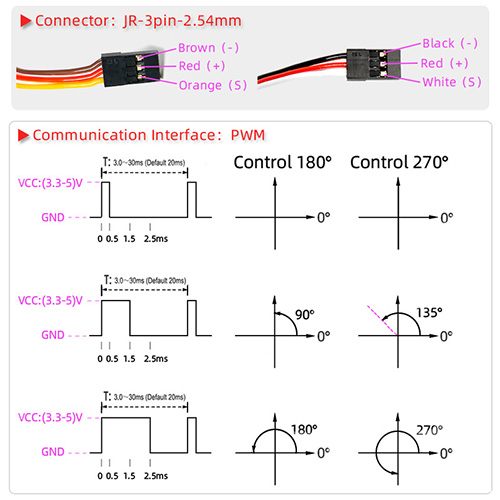

Control system:PWM (pulse width modification)
Pulse width range:500-2500μsec
Neutral position:1500μsec
Execution degree:180°/270°(when 500-2500μsec)
Dead band width:3μsec
Operating frequency:50-330Hz
Rotation direction:counterclockwise(when 500~2500μsec)

We can supply additional servo models for your reference.

If you'd like to learn more, please contact us.
