Description

Size:
2 Bit : 38.2*25.6mm
3 Bit : 51.8*25.1mm
4 Bit : 63.6*25.2mm

Product introduction:

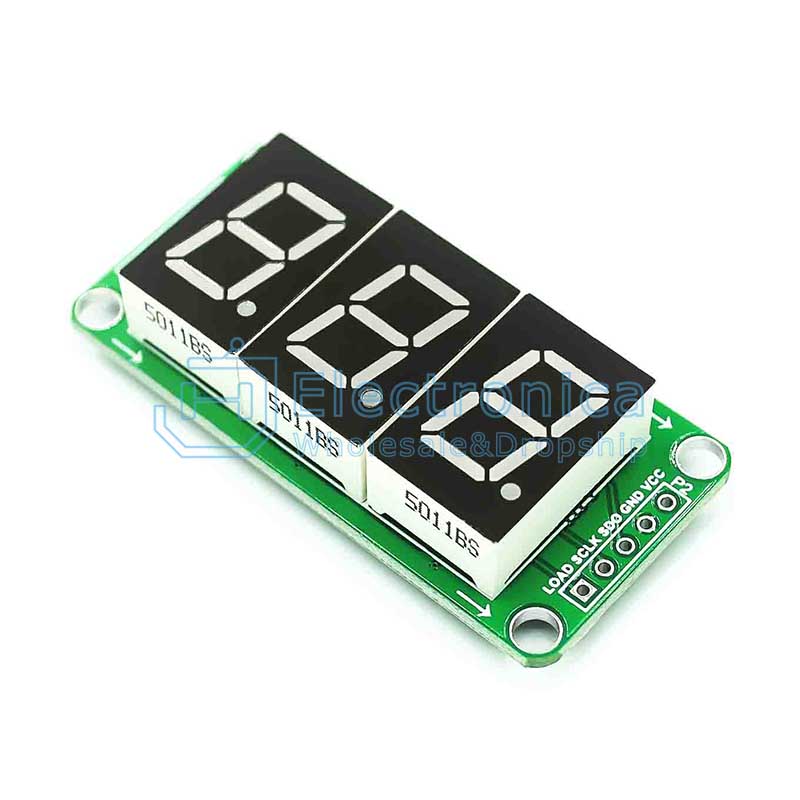

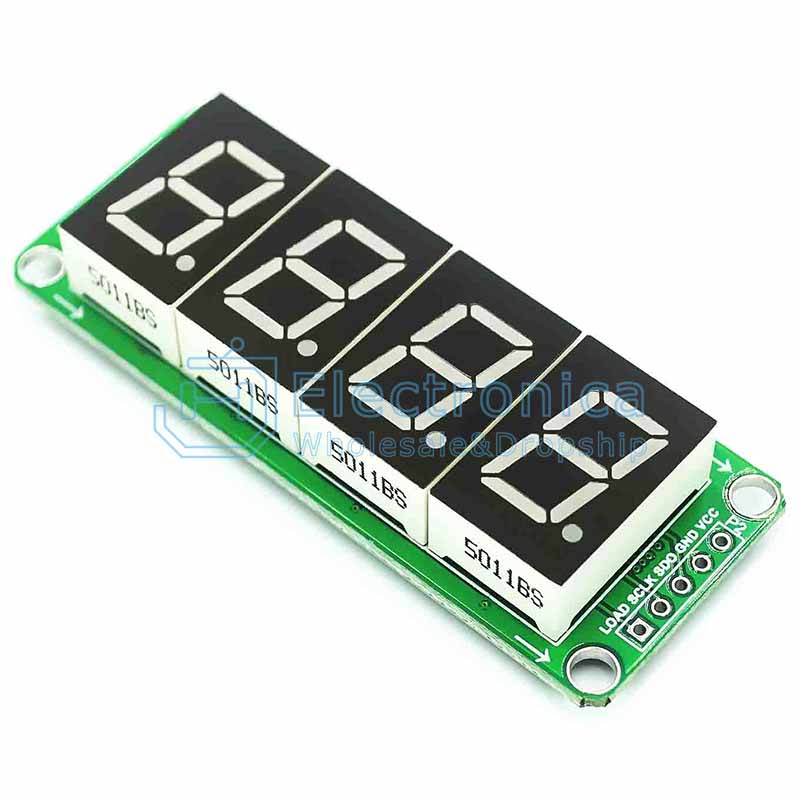

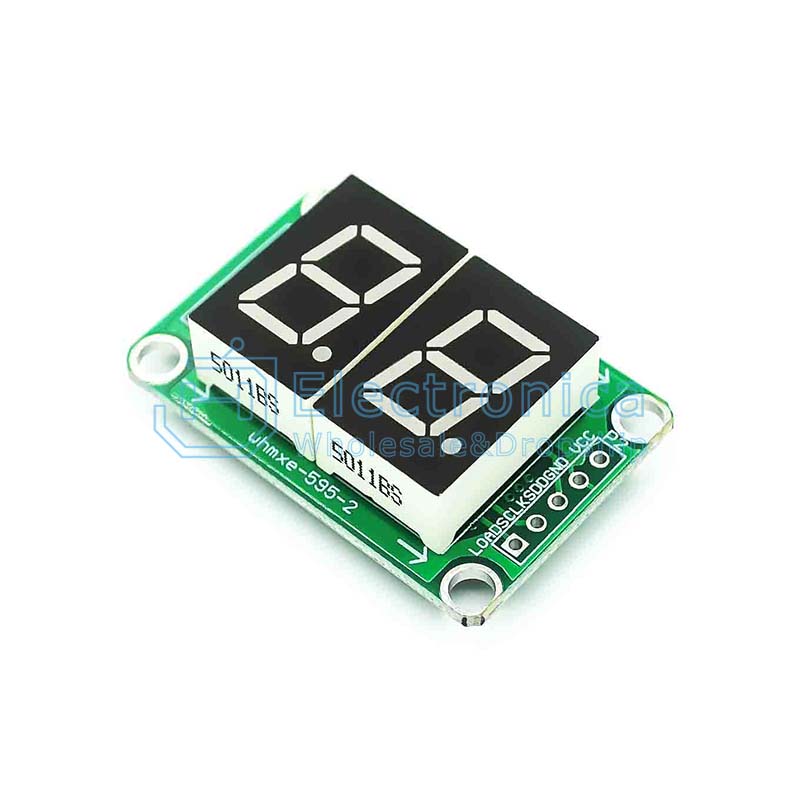

1.The 2-way bright red nixie tube display module has 4 positioning screw holes for easy installation

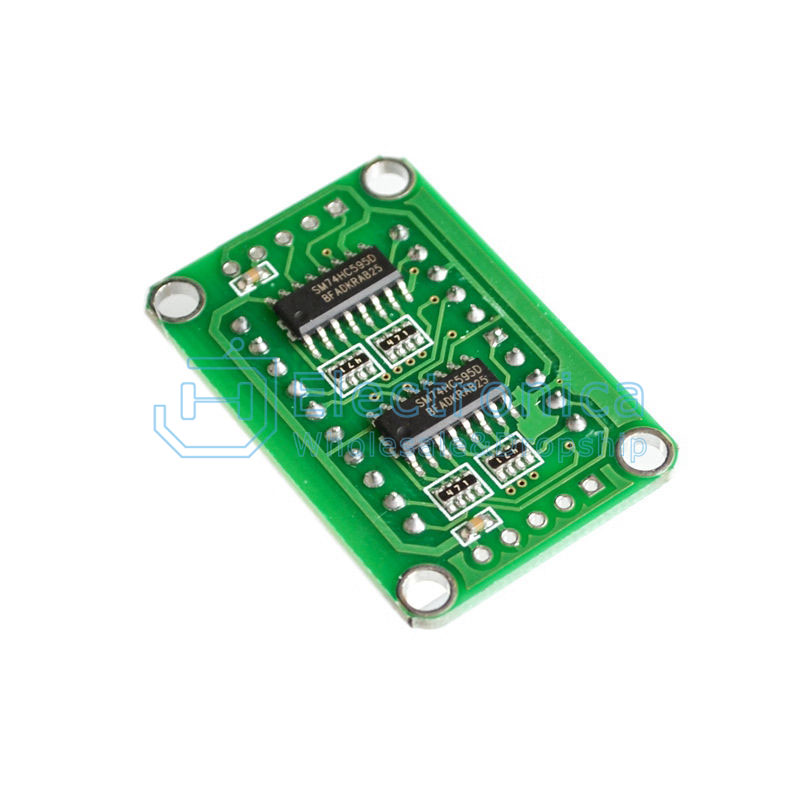

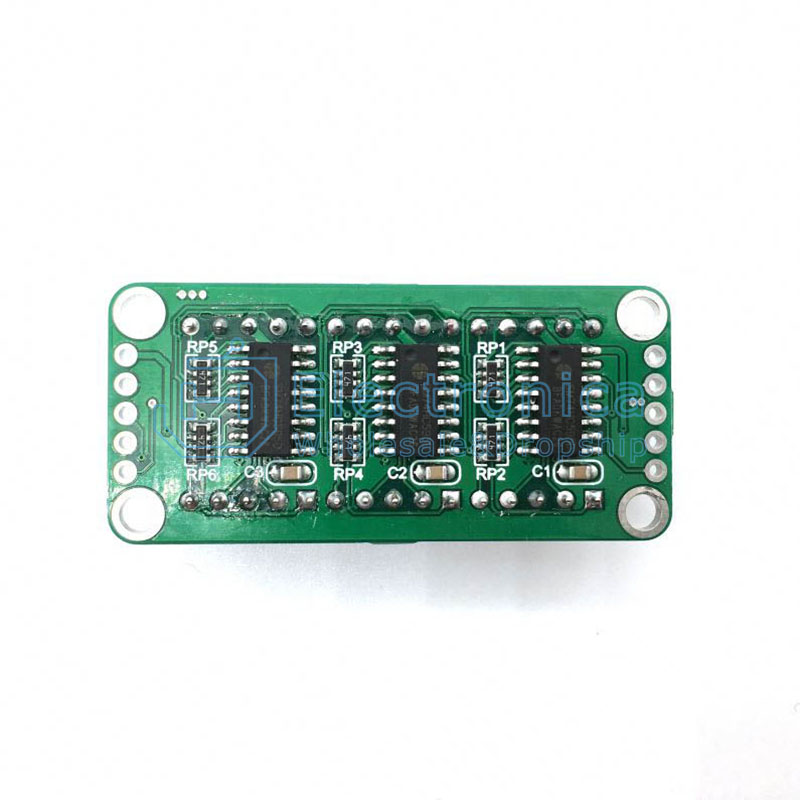

2.Two patches 74HC595 are used for driving,and each section of the nixie tube is charged with resistance and current limiting to ensure uniform brightness
3.Static drive,under the condition that the number remains unchanged,the SCM does not need to be refreshed all the time,and non-dynamic scanning saves the resources of the SCM system
4.The interface is simple:VCC positive pole, GND negative pole,SDI data,shift clock SCLK,and latch LOAD.Only three wires are needed to interface with the
single chip computer,saving 10
5.With data output,it is convenient to cascade.For example,four digital tube modules(no matter how many bits)can be connected one by one,and the three wires of the first meter head can be connected to the single chip computer

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

74HC595 Static Drive 2/3/4 Segment Digital Tube Display Module

SKU : YXB304 Brand : JH Stock

Price : $ 0.46~0.79

100 +: $0.46~0.79500 +: $0.46~0.791000 +: $0.46~0.79

Style：

2-bit
3-bit
4-bit
