Description

Color:Blue
Resolving Power:800*480
LCD Type:TFT Transmissive Normal White
Interface:16bit parallel bus interface
On board 400mA DC-DC Boost regulator to provide power supply to LCD backlight
LCD-specificed intialization code is provided,so that you can save time to optimize power control register and gamma curves for best display performance.We have test the provided code,it gives the best display performanace
Module dimension:186mmx106mmx23mm(including pin header extrusion)
Active area:154mmx86mm
Pixel pitch:0.179mmx0.179mm
Standard 2x20 2.54mm pin header for connection to MCU/development board
Warning:all data port voltage can not exceed 3.6V

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

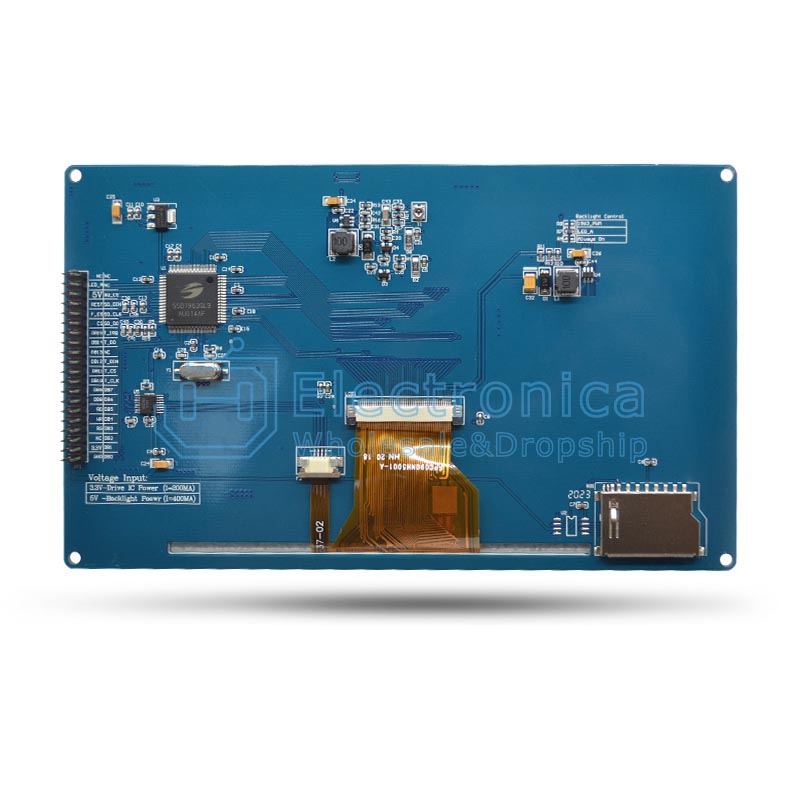

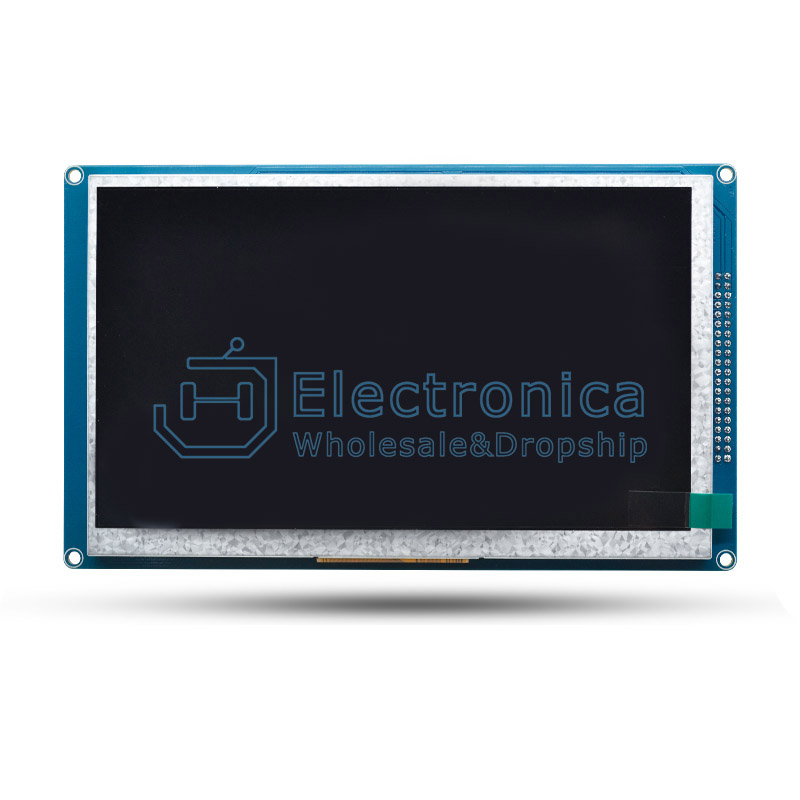

7 Inch 800*480 SSD1963 TFT LCD Color Screen Module

SKU : YXS236 Brand : JH Sourcing

Price : $ 19.80~22.02

100 +: $19.80~22.02500 +: $19.80~22.021000 +: $19.80~22.02
