5V1A

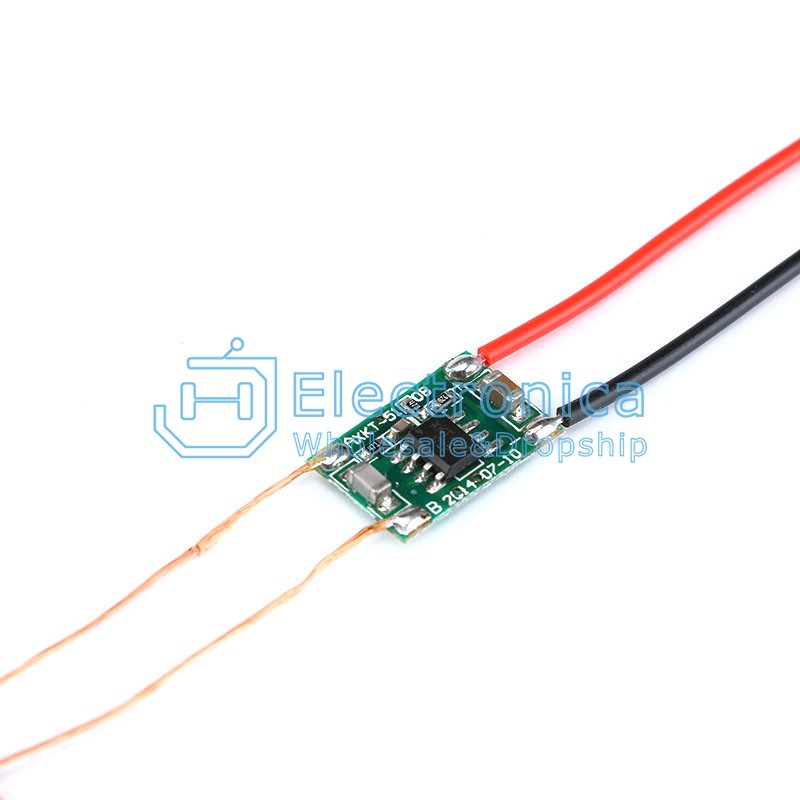

Transmitter module size:17*11*2.3mm

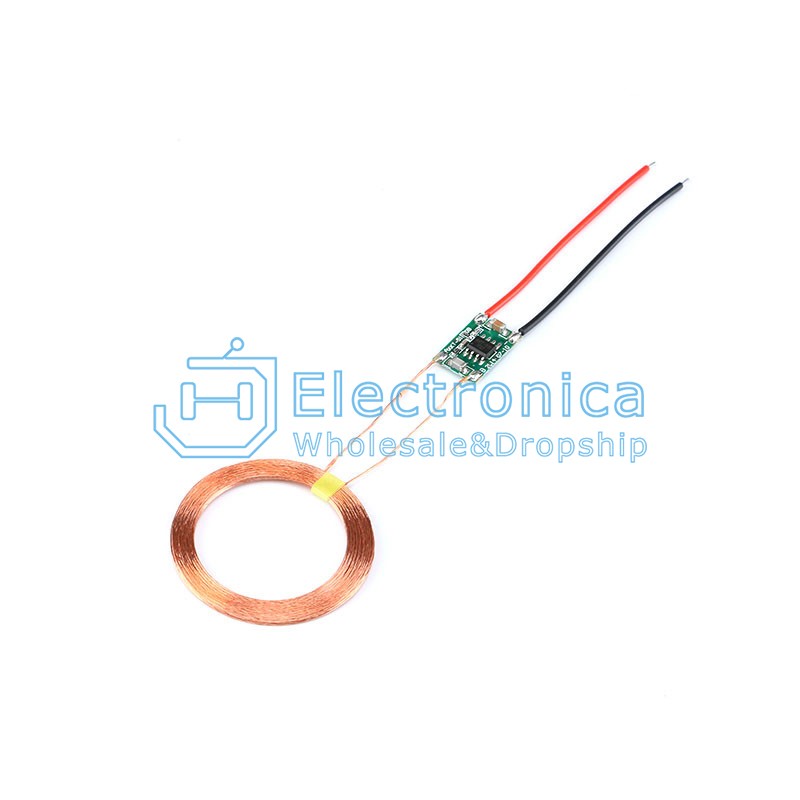

Transmitter-receiver coil size:Outer diameter 37.5mm,thickness 2.2mm.
Connection:1 pin to power negative;2 pins to power positive;3 and 4 pins to external transmitter coil.
Transmitter module working voltage:5V~12V
Transmitter module working current:With the size of the receiving load current automatically increase or decrease the output Current of the receiver module:5V/1000mA
Receiving and transmitting distance:1~20mm

5V2A
Input Voltage:9~12V
Maximum load current:1.1A
Maximum output voltage and current:5V/2A,12V/700mA
Transmitter coil size:Outer diameter 43mm,thickness 2.3mm
Transmitter module size:18*8.5*15mm
Receiver module size:10*25*3mm
Receiver coil size:43mm outer diameter,thickness 2.3mm
Receiving common distance:3~6mm
