Working voltage:DC12V
Working current:<20MA
Working frequency range:20Hz~400Hz
Output method:switch signal output
Maximum detection line diameter:5.2mm
Installation hole:Aperture of 3mm, hole spacing of 52.5mm
Working environment:-40℃~+85C,0-95%RH
Instructions for use:
VCC: working voltage positive pole
GND: working voltage negative pole

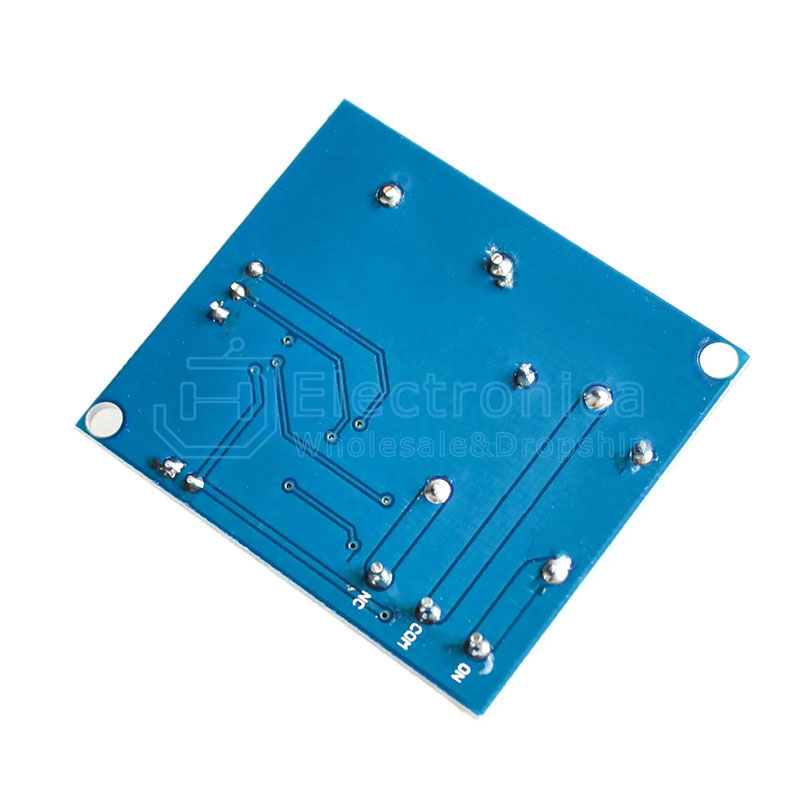

ON: Normally open, NO and COM are disconnected before the relay is engaged, and short circuited after being engaged
COM: Common terminal, relay common interface
NC: Normally closed end, NC and COM are short circuited before relay engagement, and disconnected after engagement
