Description

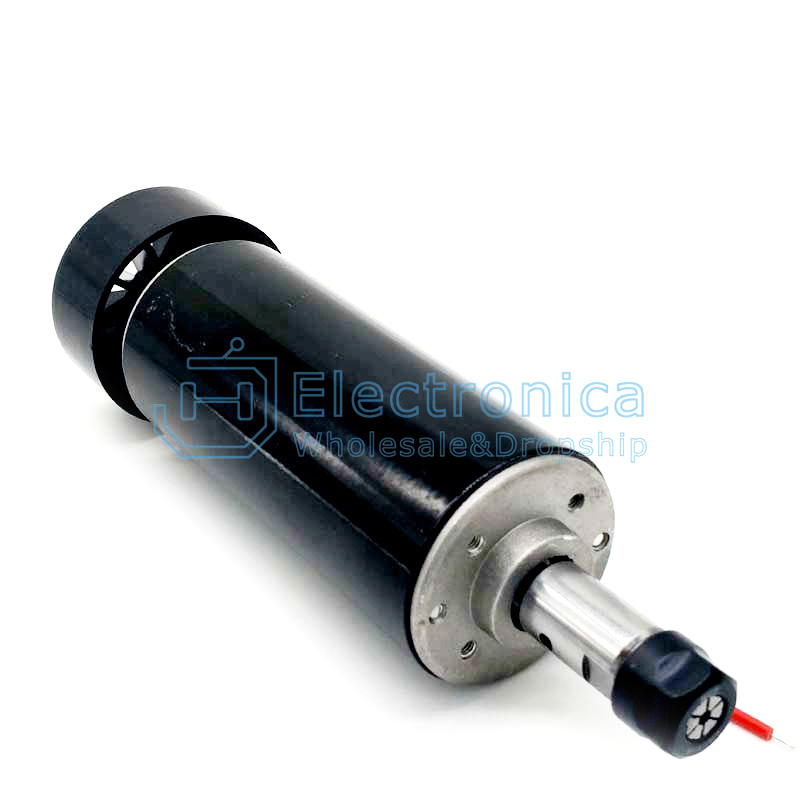

Spindle Parameters:
Working voltage:12-100VDC
Idle speed:approximately 1000-12000 rpm
Peak power:500W
Peak torque:0.5NM
Insulation resistance:>2 megaohms
Insulation dielectric strength:400V
Diameter:52mm
Length of collet part:45MM
The diameter of the chuck part is:16mm
Total length of motor:about 190MM
Spindle radial runout 0.01-0.03 with high accuracy
Can be used for solid wood PCB carving and drilling, etc

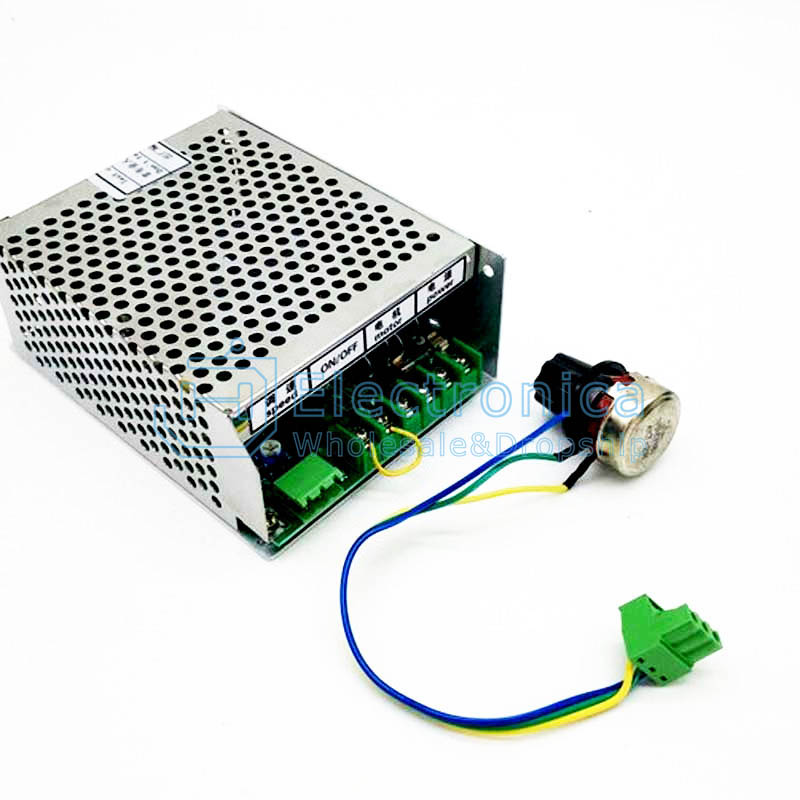

Detailed Technical Parameters of the Governor:
1. Input voltage AC110-AC220V ± 10% Global voltage 50/60Hz
2. Current limiting:6A
3. Adaptive motor power:50W~500W
4. Armature output voltage:DC0-100V adjustable
5. External dimension:130mm×100mm×51mm
6. Wiring method:terminal type (convenient and fast)
Work Environment:
1. Surrounding air temperature:-10~40℃
2. Air relative humidity below 85%, well ventilated
3. Installed in a well ventilated, non violent impact, vibration free, explosion free medium, and free of conductive metals
Product Features:
1. Adopting pulse width technology for smoother speed and greater force at low speeds
2. Equipped with overcurrent protection cut-off device for more reliable performance
3. Equipped with a soft start device to eliminate excessive motor starting current

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

500W ER11 Air-cooled Spindle Motor+Governor+Clamp

SKU : YXC1180 Brand :

Price : $ 64.01

100 +: $64.01500 +: $64.011000 +: $64.01

Quantity :

- +

ADD TO CART
