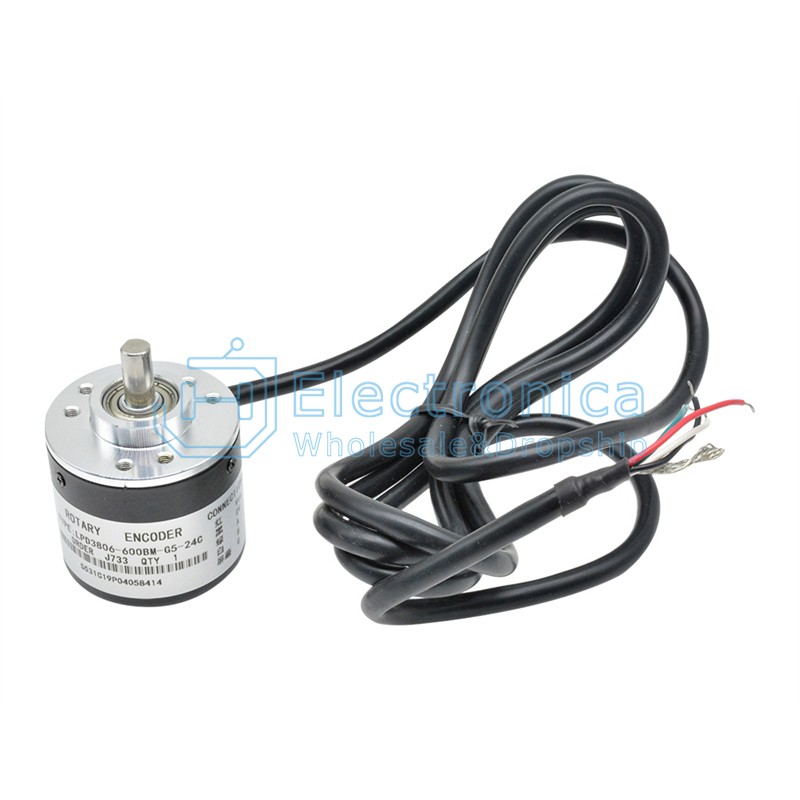

600 P/R(Single-phase 600 pulses/R,Two phase 4 frequency doubling to 2400 pulses)
360 P/R(Single-phase 360 pulses/R,Two phase 4 frequency doubling to 1440 pulses)
Power source:DC 5-24V
Shaft:6*13mm/0.23*0.51"
Size:38*35.5mm/1.49*1.39"
Output:AB 2phase output rectangular orthogonal pulse circuit,the output for the NPN open collector output type
Maximum mechanical speed:5000 R/min
Response frequency:0-20KHz
Cable length:1.5 meter
Notice:AB 2 phase output must not be directly connected with VCC,otherwise,will burn the output triode,because different batches,and may not have the terminal

Connection:

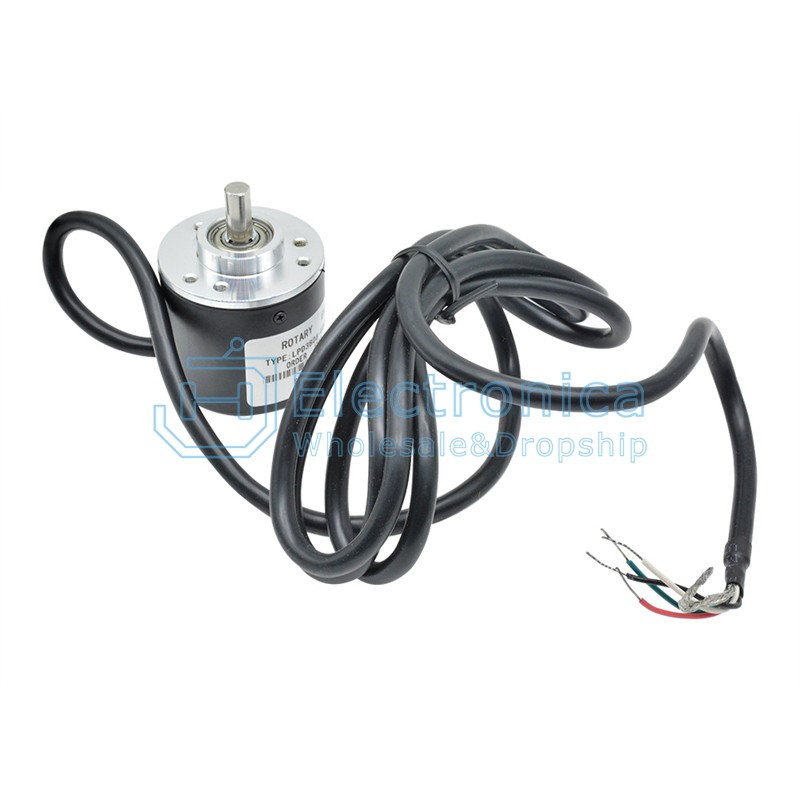

Green=A phase,white=B phase,red=VCC power+black=V0
