Product Parameters:
Working voltage:DC2.5V-5V
Working current:3mA
Sensitivity:-108DBM
Rate:MAX 10 KB/S
Working mode:jog, self-locking, interlocking
Module output:4 CMOS level signals, corresponding to 4 buttons of the remote control "ABCD"
The receiving module can store 20 remote controls
Support for encoding chip models: EV1527, PT2262, and other customizations
Weight:26g
Remote control distance:50m
Product Features:
1. The remote control adopts a learning EV1527 encoding method, and each remote control has an independent address code to prevent string codes and mutual interference

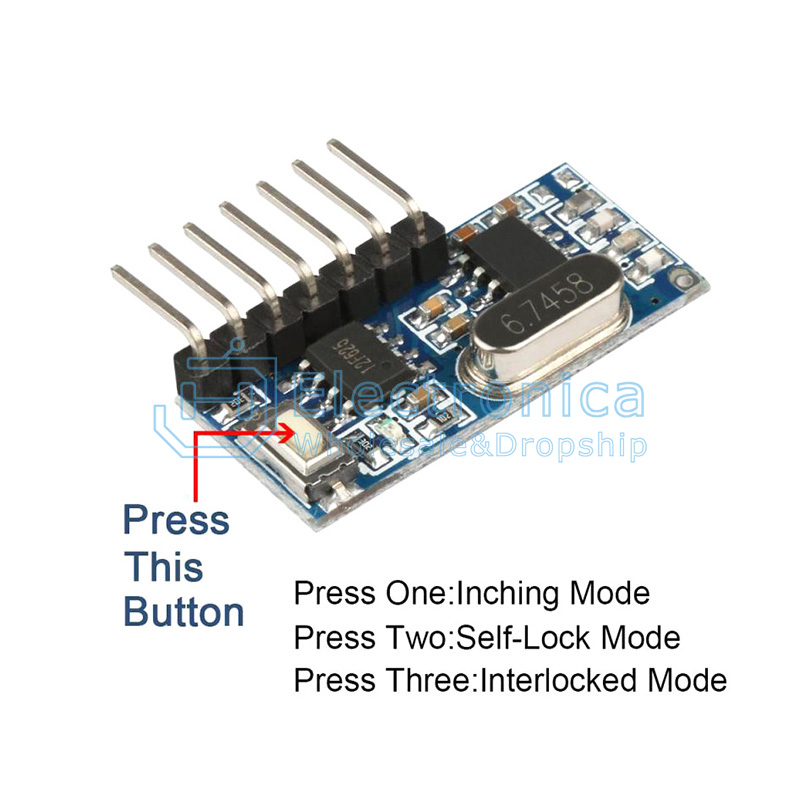

2. The receiving module has three functional options: inching, self-locking, and interlocking
3. The receiving module adopts button selection mode. No need to manually select modes through welding, jumpers, etc., saving time and labor costs
4. The receiving module contains decoding chips that can support encoding chips such as EV1527 and PT2262

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
