Description
Receiver module parameters
Product Model: MX-RM-5V
Operating voltage : DC5V quiescent current: 4MA
Receiving frequency: 433.92MHZ
Receiver sensitivity: - 105DB

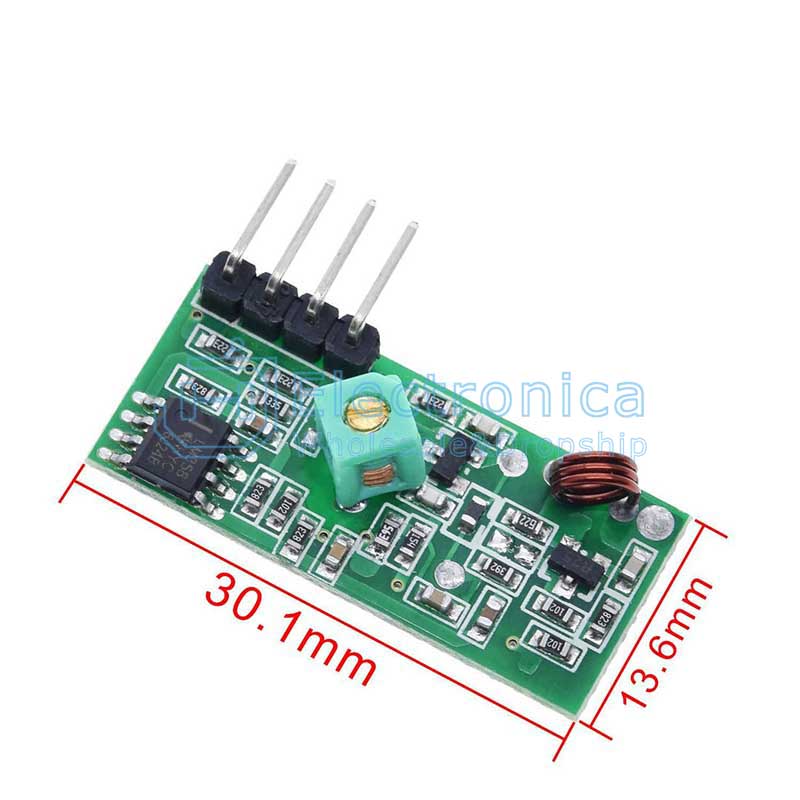

Size : 30 * 14 * 7mm external antenna: 32CM single core wire wound into a spiral
Technical parameters of the transmitter head
Product Model: MX-FS
Launch distance: 20 -200 meters (different voltage, different results) Operating voltage: 3.5-12V Dimensions: 19 * 19mm
Ways of working: AM transfer rate: 4KB / S transmit power: 10mW
Transmitting frequency: 433M
An external antenna: 25cm ordinary multi-core or single-core line
Pinout from left → right: ( DATA ; VCC ; GND )
Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3 .
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

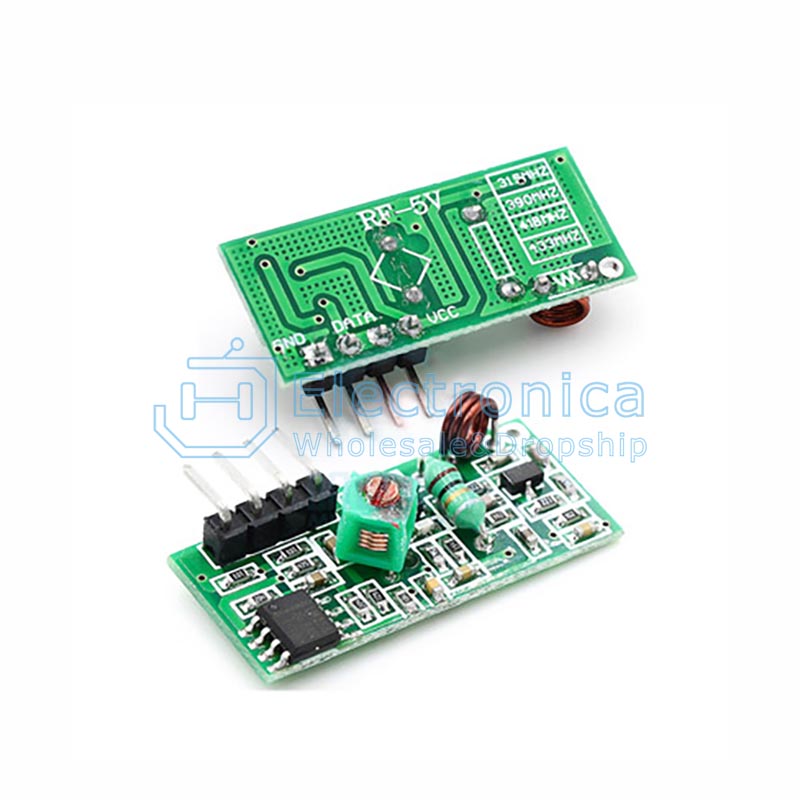

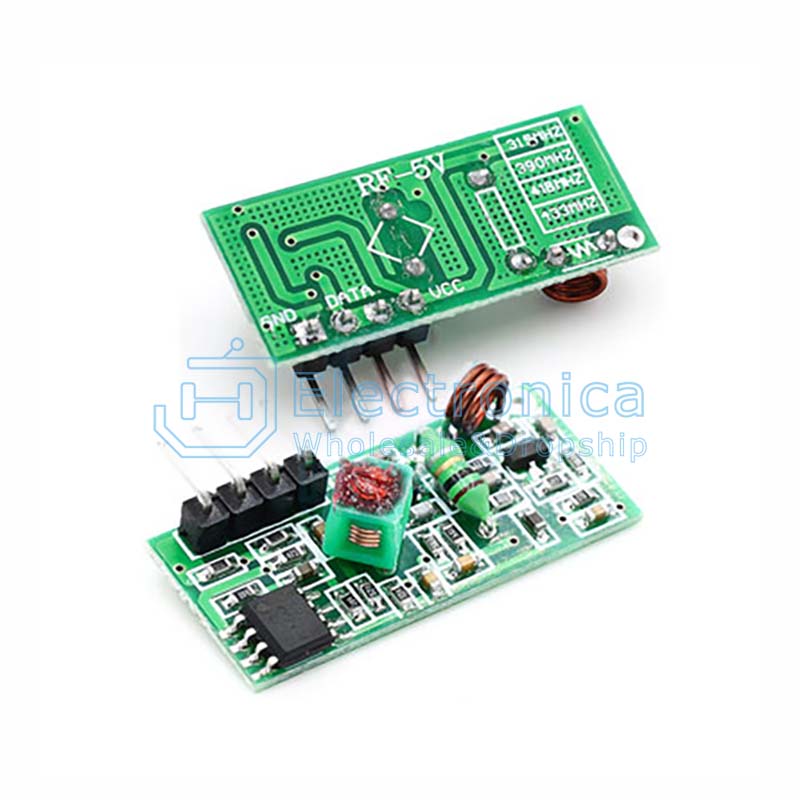

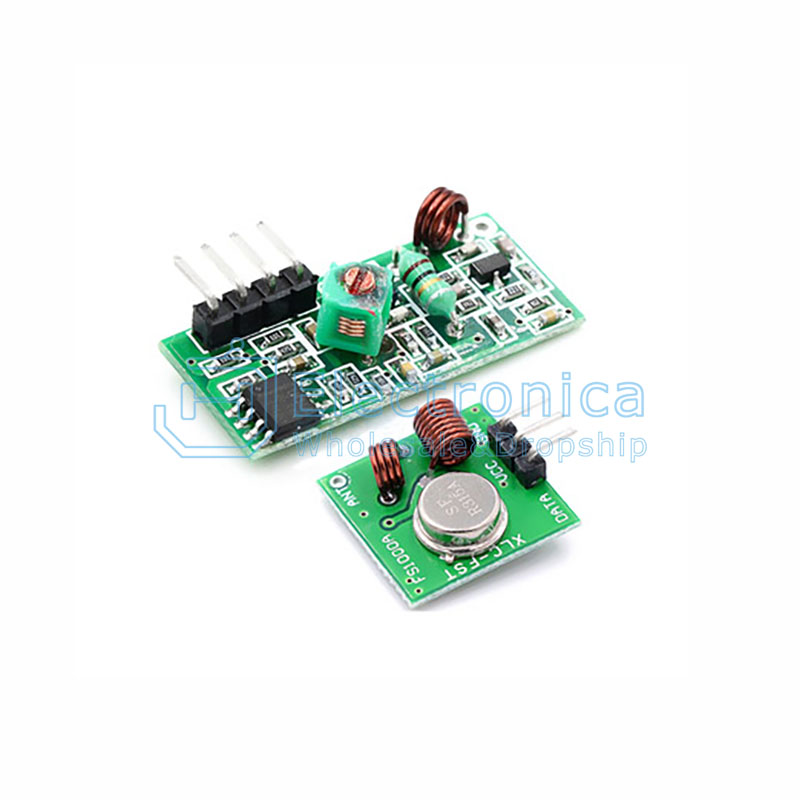

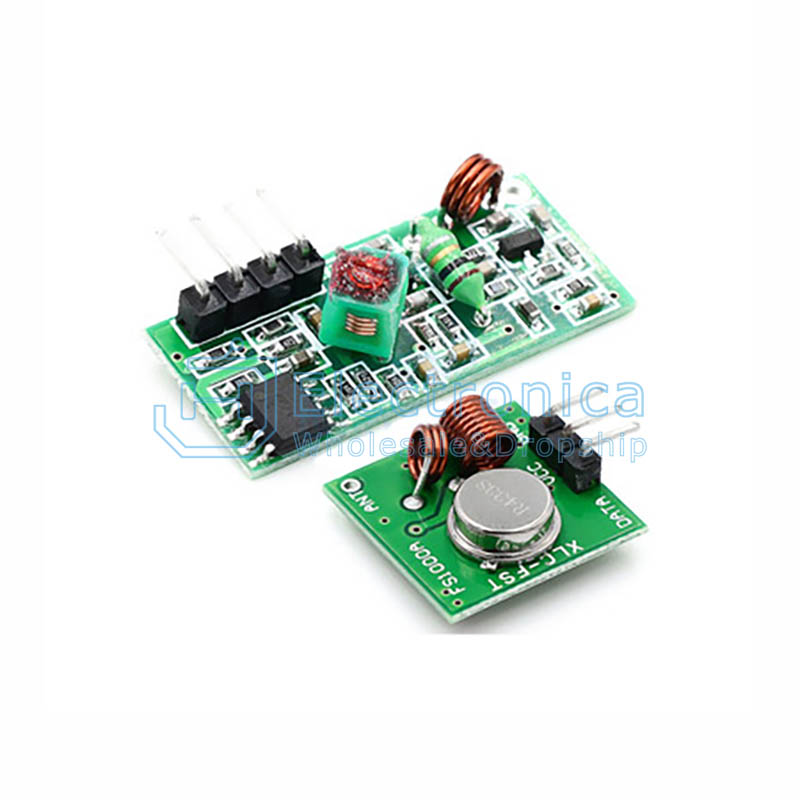

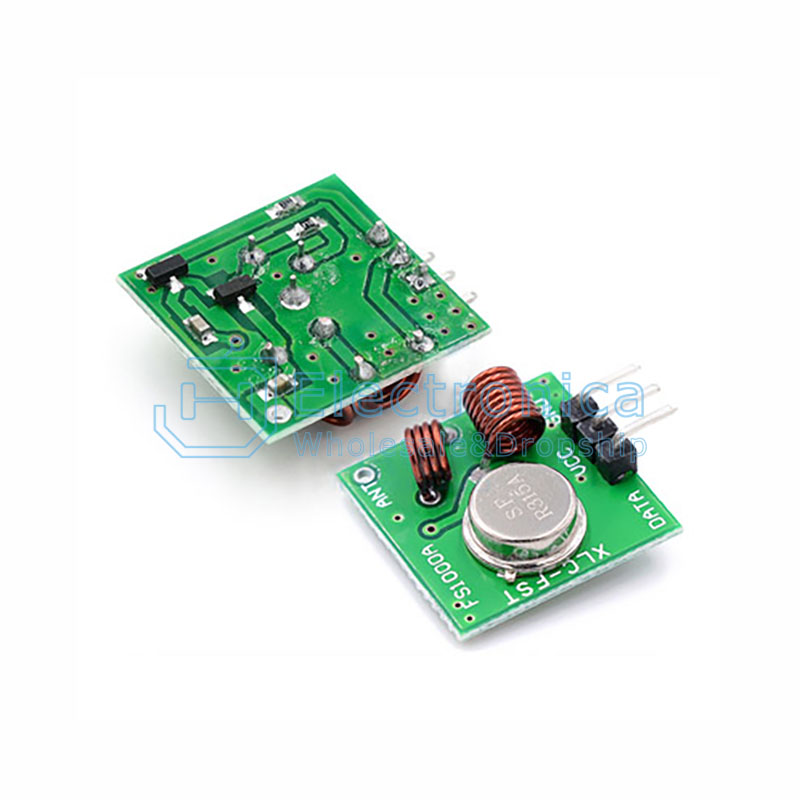

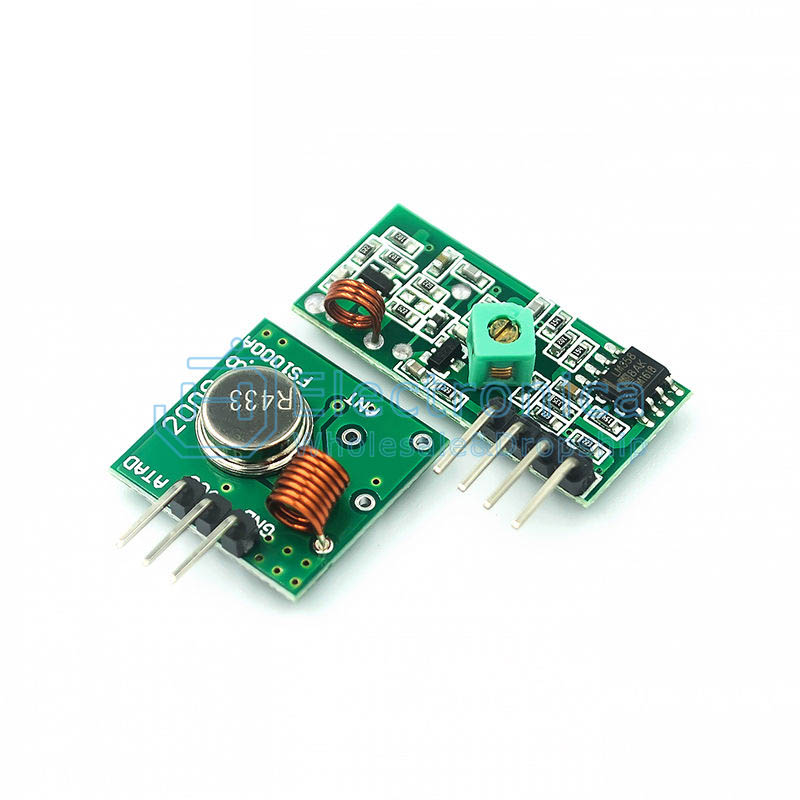

433/315MHZ Wireless Receiving and Transmitting Module
SKU : YXA483 Brand : JH Stock
Style：
433 MHZ One Set
315 MHZ One Set
433 MHZ Receiving Module
433 MHZ Transmitting Module
315 MHZ Receiving Module.jpg)
315MHZ Transmitting Module
