Description

Small hole specifications:
This plastic strip is suitable for use on a 2mm shaft; through holes refer to holes that penetrate the plastic strip (aperture diameter 2.05mm); impervious holes refer to holes that do not penetrate the plastic strip (aperture diameter 1.95mm); the distance between all adjacent through holes It is 10mm, with impervious holes distributed in the middle of the through holes:
1.On the front of the plastic strip, there are two impervious holes in the middle of the adjacent through holes, so the distance between the adjacent holes is 3.333mm
2. On the reverse side of the plastic strip, there is one impervious hole in the middle of the adjacent through holes, so the distance between adjacent holes is 5mm
3.In addition to the above, there is a 2.55mm hole at each end of the plastic strip, which is suitable for 2.5mm axles; for more details of small holes, please refer to the main picture (mouse the mouse to enlarge the main picture to see the details)
Dimensions:7mm*7mm*153mm

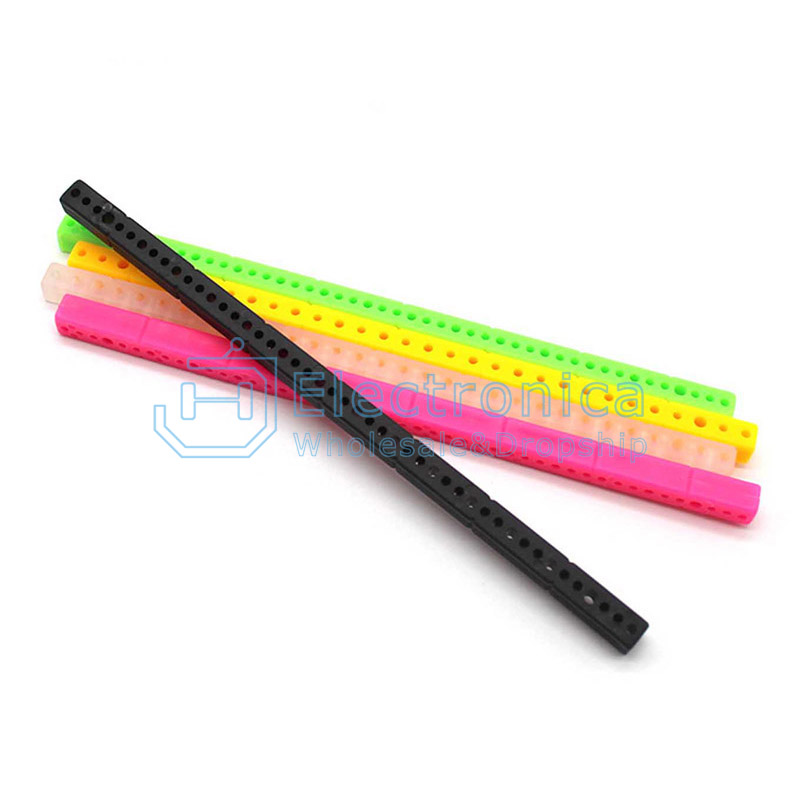

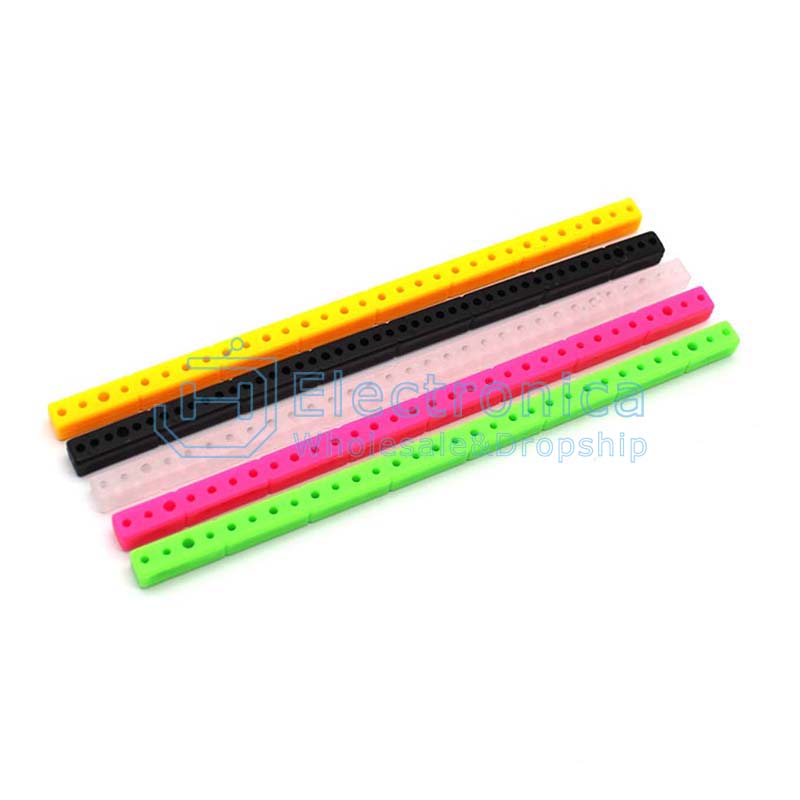

Spot color:yellow/rose red/transparent/black/green

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

Package includes:
Please confirm the style before placing orders
Any questions, please contact with your sales

153 Plastic Strip

SKU : YXJ303 Brand : JH Sourcing

Price : $ 0.29

100 +: $0.29500 +: $0.291000 +: $0.29

style：

Style：

10PCS
