Description

Product Parameters:
Module size:31*24mm
Supply voltage:5V
Potentiometer resistance value:B10K
Signal output method:analog signal output
Interface form:2.54 spacing row pin (anti reverse connection socket)
Fixing method:Compatible with LEGO and other building blocks (directly inserted), with two M3 screw holes reserved for easy fixation
Product Introduction:
Adopting adjustable potentiometers from large factories and providing rotating caps for easy observation of angles, this module outputs analog signals and can be connected to the microcontroller analog port. It can not only be used as an adjustable resistor to control the motor speed, but also be equipped with a single pendulum wheel at its rotating head to measure the inclination angle. The rotation angle can be from 0 to 300 degrees, and the 3P sensor connection wire can be used to connect with the Arduino sensor expansion board, By programming on various microcontrollers, interactive works related to rotational positions can be easily achieved
Product Description:
Compatible with major brands such as LEGO, building blocks can be directly built and fixed without the need for screws. At the same time, it is designed with M3 screw holes for easy use by DIY maker friends. The module adopts a anti reverse pin socket design, which can be paired with the anti reverse sensor 3P line. It adopts a large factory 10K adjustable potentiometer, and the analog signal is linearly stable

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

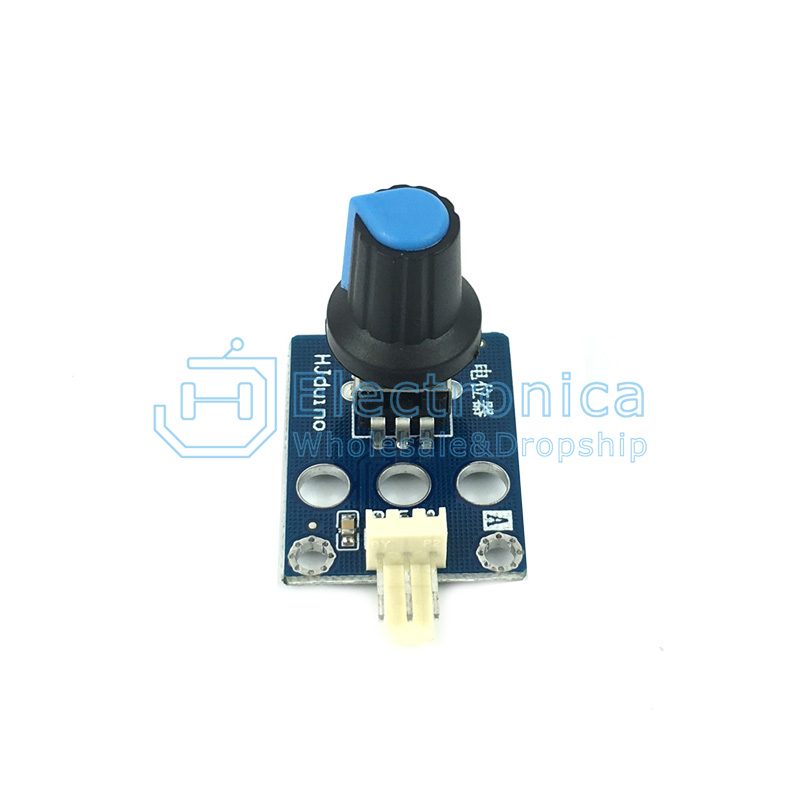

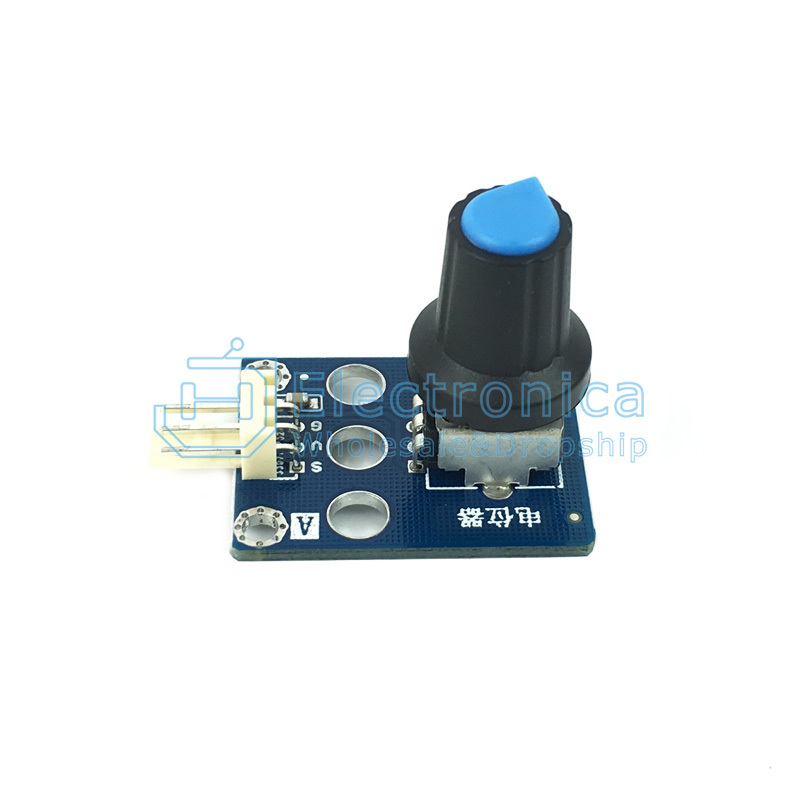

10K Rotary Potential Module

SKU : YXS1581 Brand :

Price : $ 1.88

100 +: $1.88500 +: $1.881000 +: $1.88

Quantity :

- +

ADD TO CART
