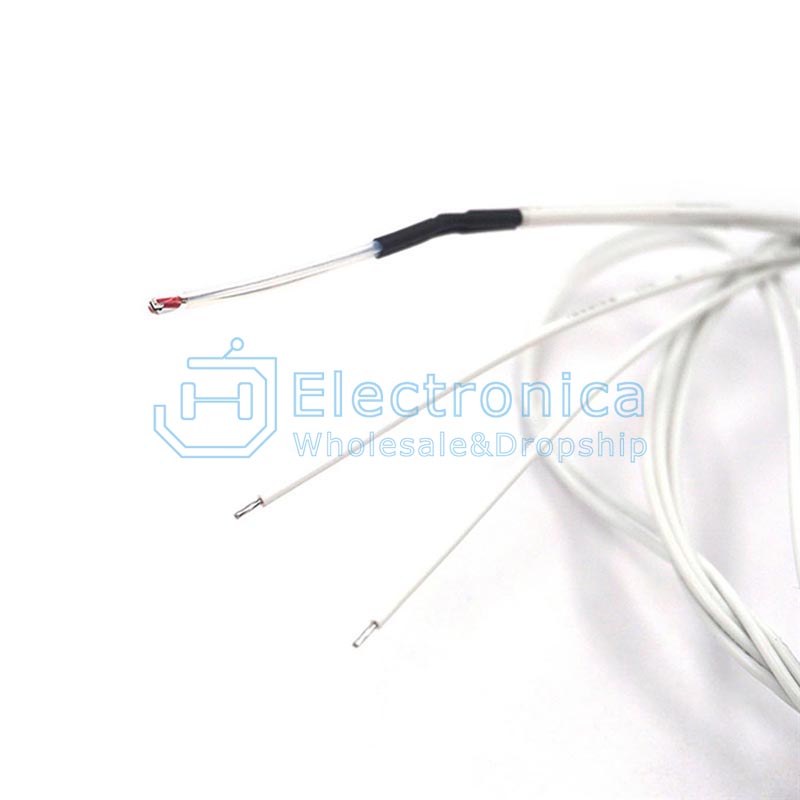

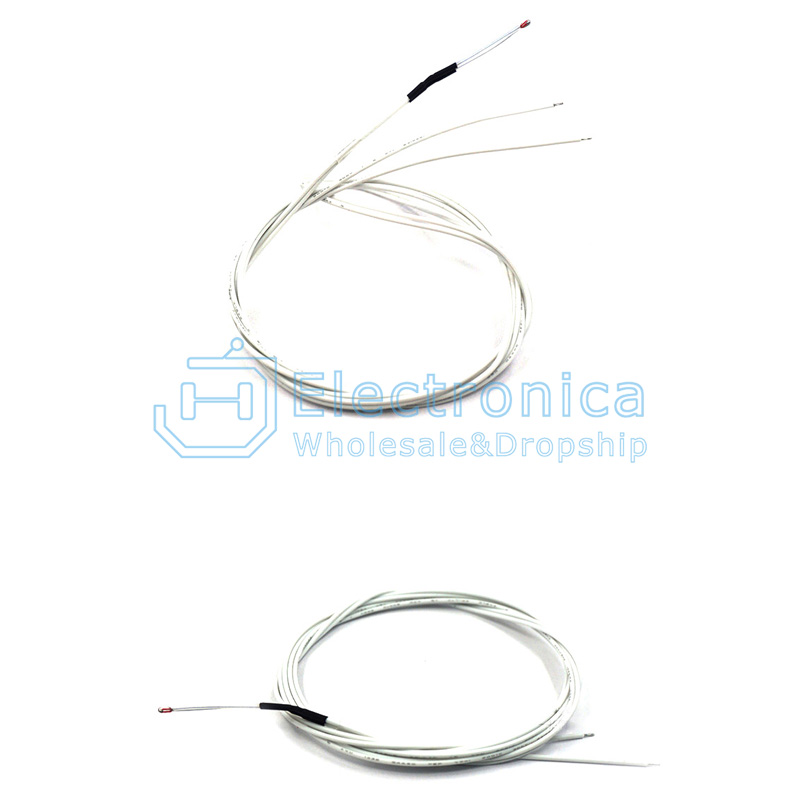

Product Name: NTC single ended glass temperature sensor
Product size: 100K
Application: temperature sensor
Color classification: milky white
Product features: high sensitivity, rapid response, compact structure
Easy installation, wide temperature range, good stability, high reliability, can provide different R, b value products, strong interchangeability, high precision

Main technical parameters of products
1: Nominal resistance: R25 (25C): (commonly used) 1.5k, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100k, 200K, 500K, etc
2: Resistance accuracy: soil 1%, 2% and soil 3%
3: B value r25/50: (commonly used) 3435k, 3600K, 3950k, 3990k, 4100k, 4200k and other ob value accuracy: soil 1%
4: Temperature range: 40C + 300C
5: Dissipation power coefficient: ≥ 5MW/ ° C (in static air)
6: Maximum rated power: 45MW
7: Thermal time constant: < 7S (in static air)
8: 9: resistance temperature coefficient: 2-5% /'c
Recommended parameter: R25 ° C = 100k B25 / 50 = 3950k (1% soil)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
